Flexible LED SMD 2835 24V

Flexible LED Tape with SMD 2835, self-adhesive
Article Choice

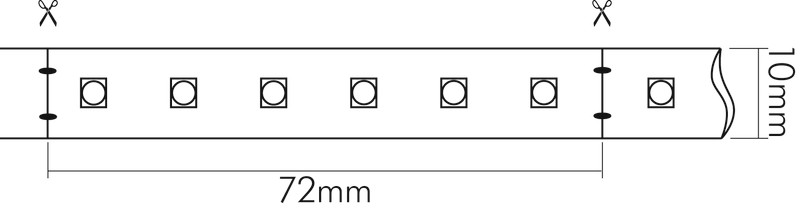

Highly flexible LED tape with self-adhesive reverse side for easy and quick fixing with 30 cm connecting cable on both sides; reducible in 72 mm sections (6 LEDs).

Maximum connected load of 75W (this equates to 5 m) may not be exceeded.

Ensure sufficient cooling of the Flexible LED. It is necessary to mount the Flexible LED on heat-conductive material such as the aluminium profile.

Dimensions (WxH): 10x1,2 mm

Number of LEDs: 84/m

Colour rendering index Ra: 82

Colour distance (MacAdam): 3 SDCM

Life time: 26.000 h (L90 B10)

Recommendation LED driver: EL-24V CV series and LED PWM-5 Controller 12V/24V 8A BT
