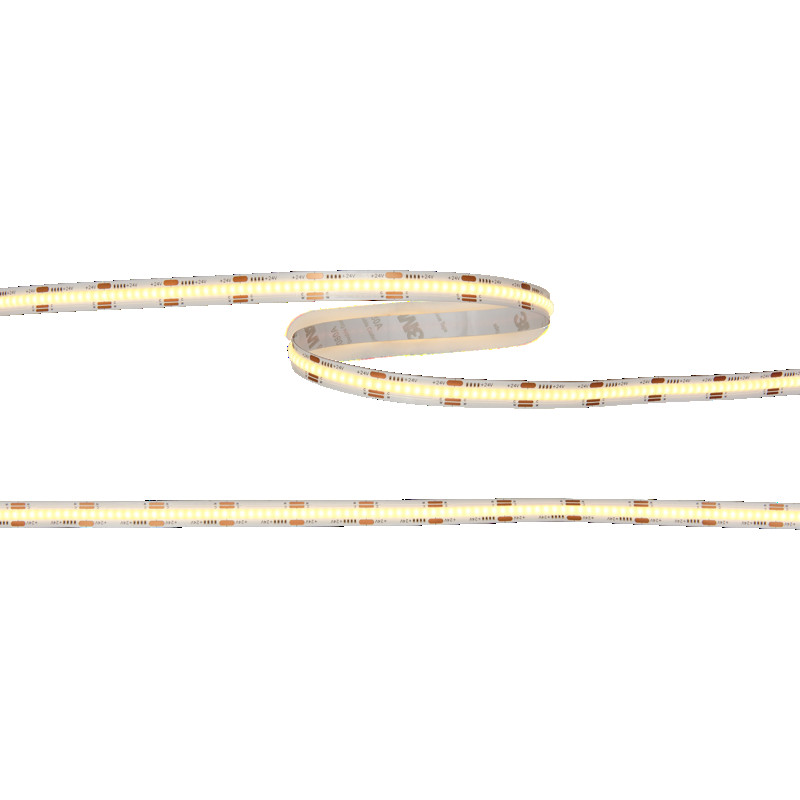

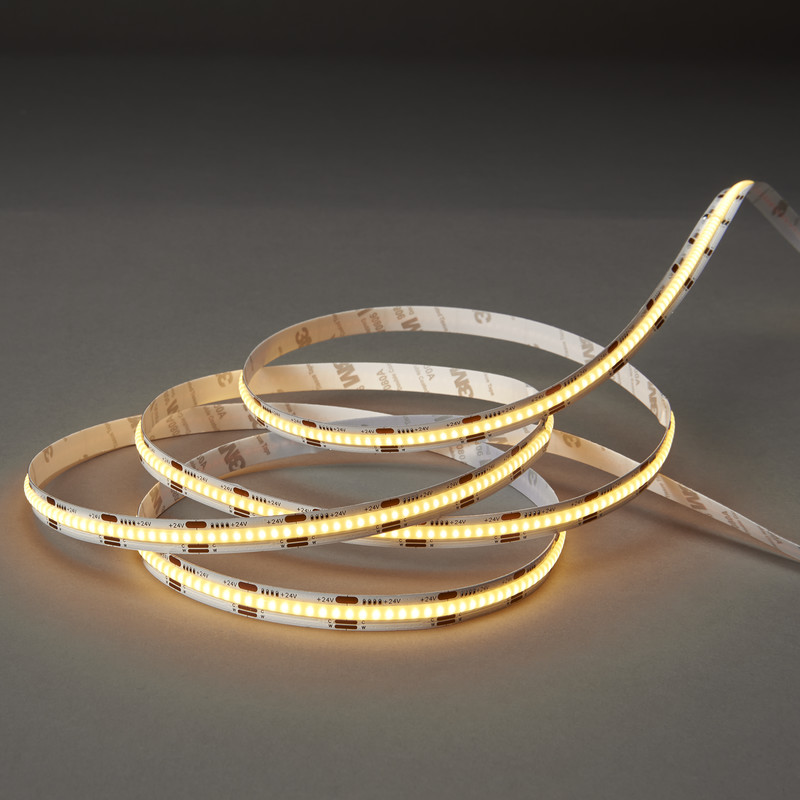

Flexible LED COB 576 5m RGB 15W/m 24V IP20
SKU:
5032512046EAN: 4044538073910

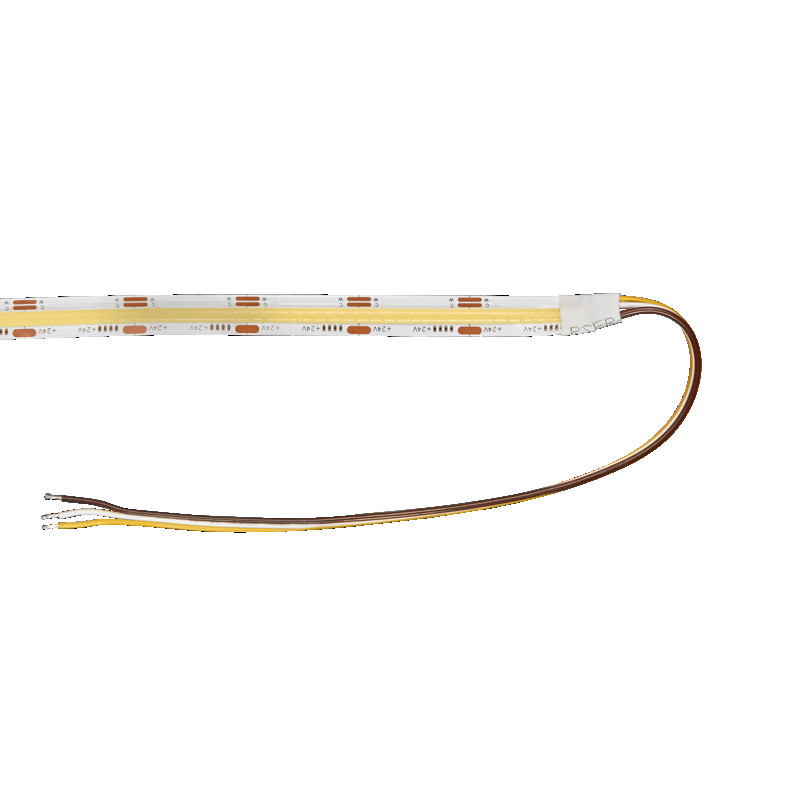

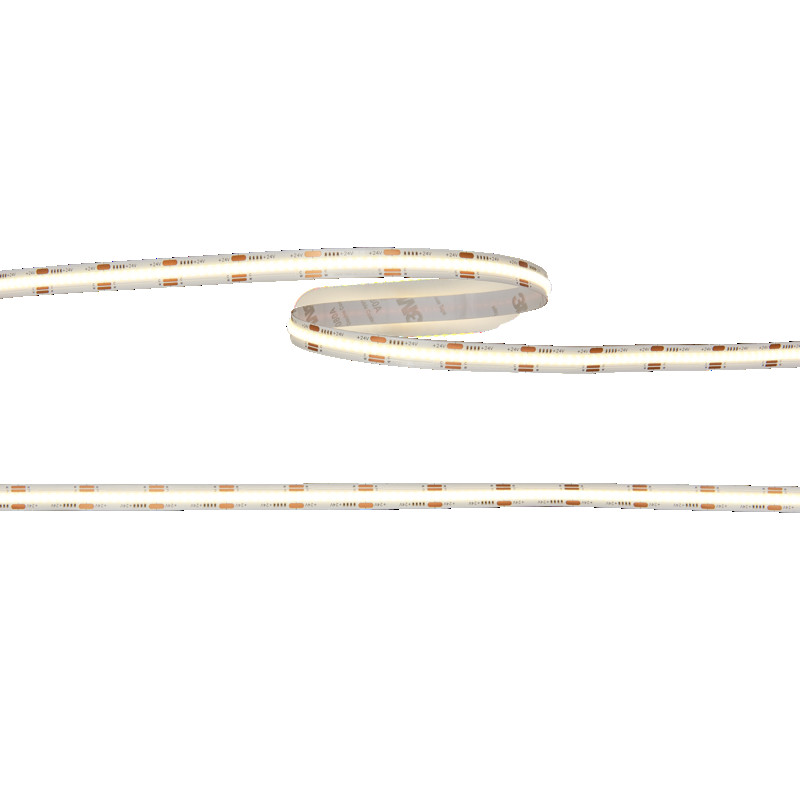

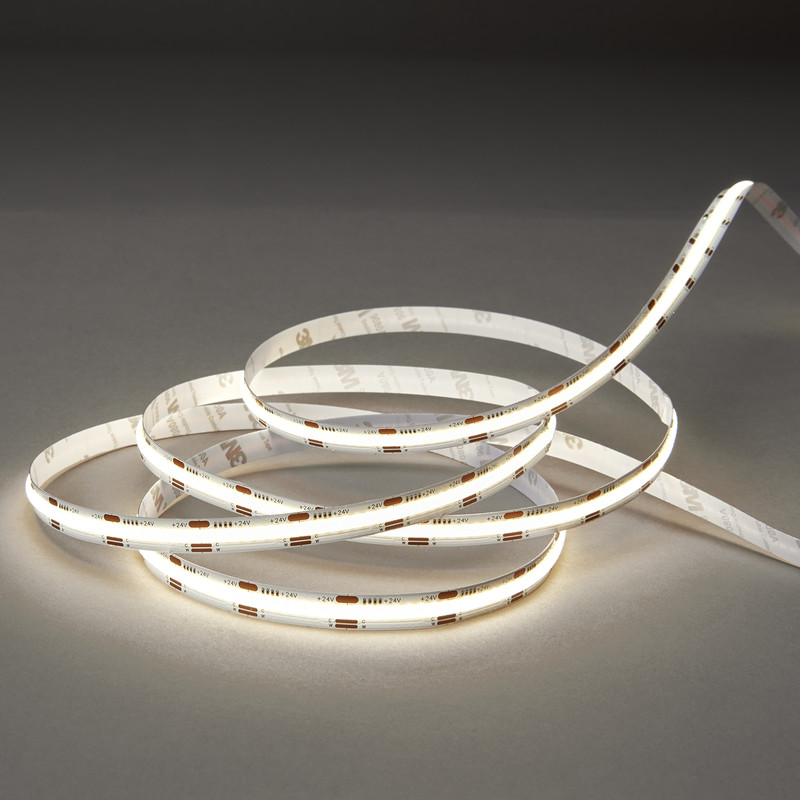

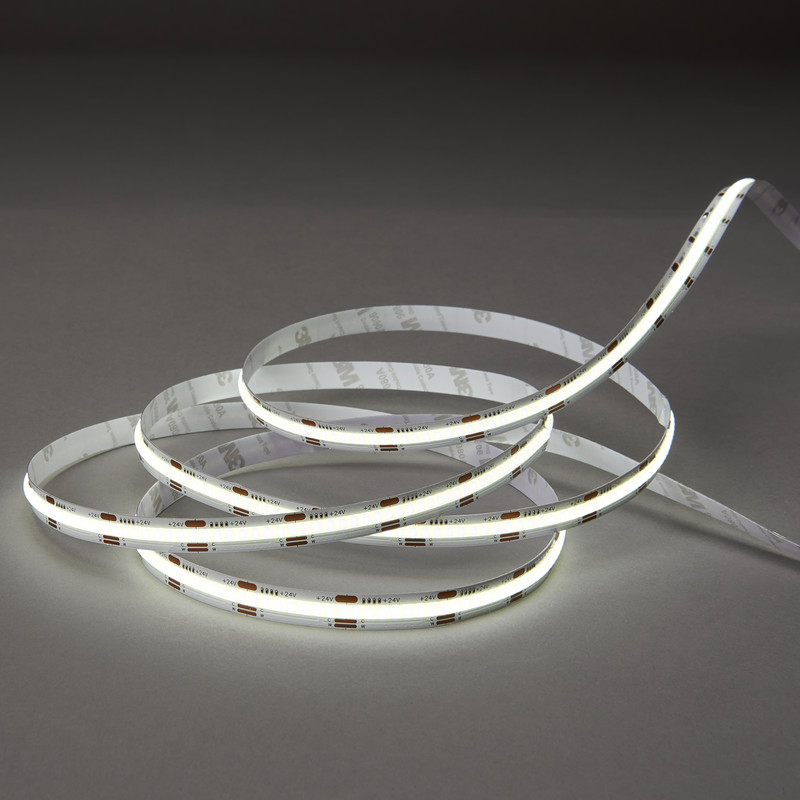

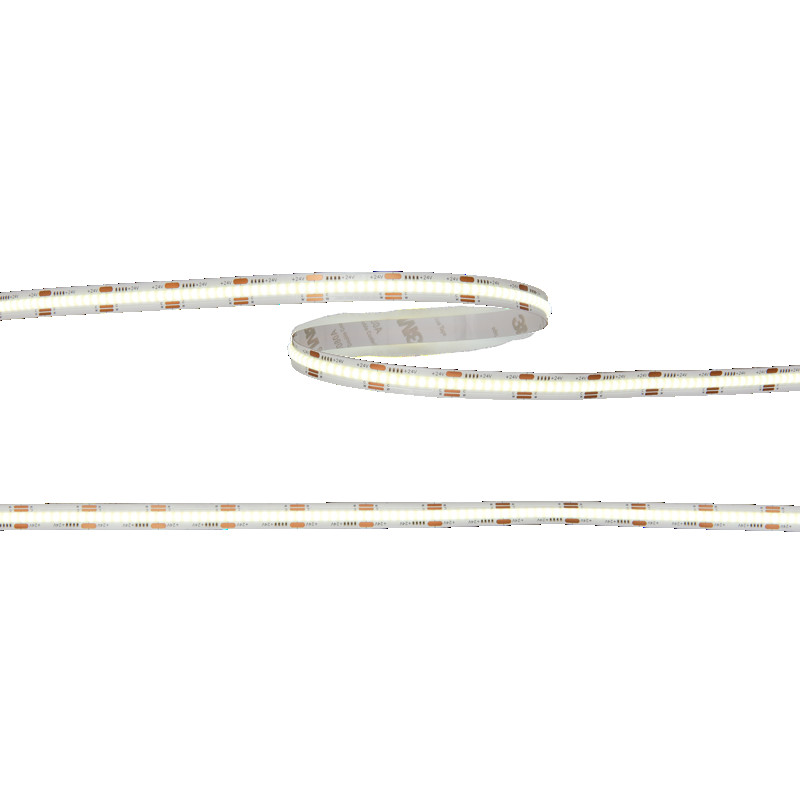

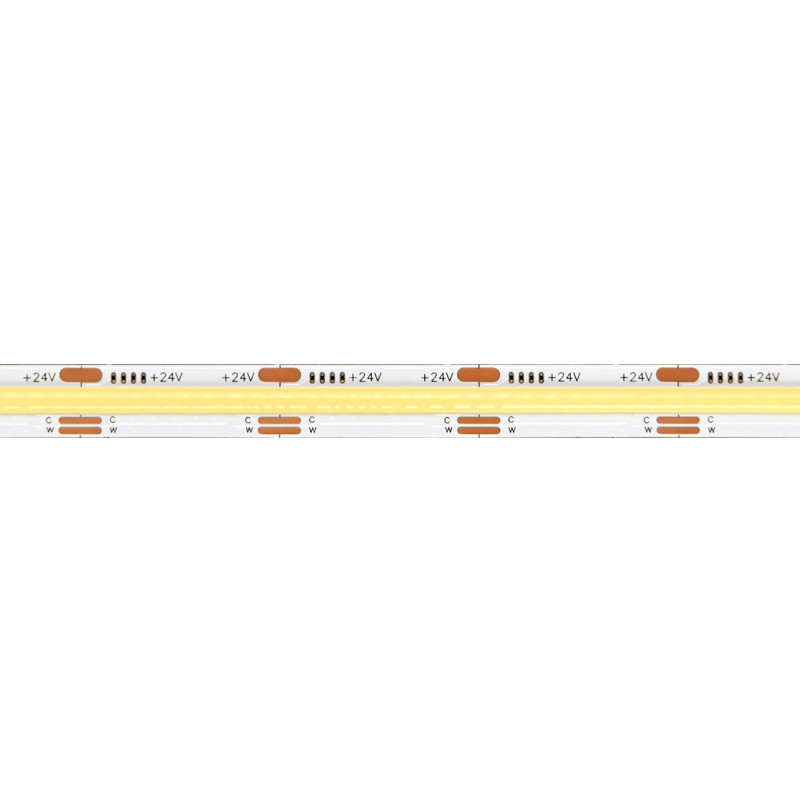

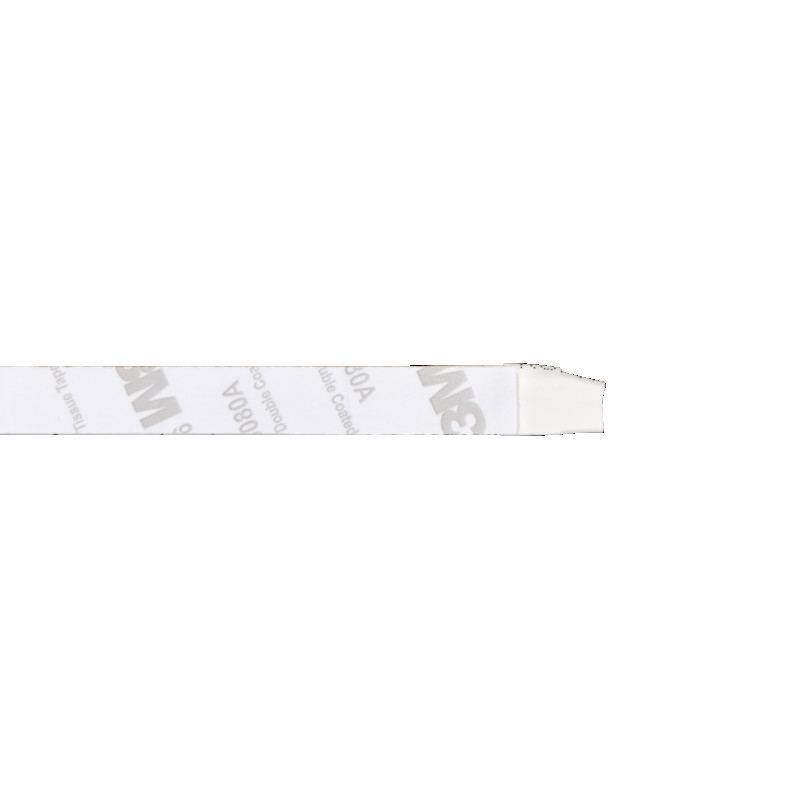

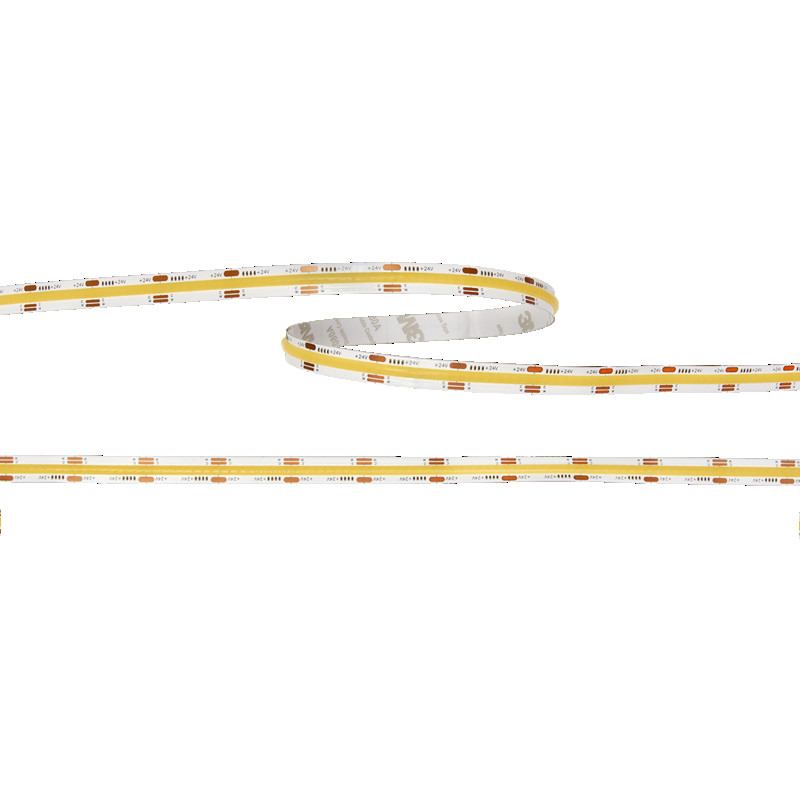

Highly flexible LED tape with self-adhesive reverse side for easy and quick fixing with 15 cm connecting cable on both sides; reducible in 27,8 mm (16 LEDs).
The colour temperature can be individually mixed by the Bi-colour dimmer or LED PWM-5 Controller 12V/24V 8A BT.
Maximum connected load of 75W (this equates to 5 m) may not be exceeded.
Ensure sufficient cooling of the Flexible LED. It is necessary to mount the Flexible LED on heat-conductive material such as the aluminium profile.
Dimensions (WxH): 10x1,8 mm
Number of LEDs: 576/m
Colour rendering index Ra: 90
Colour distance (MacAdam): 3 SDCM
Rated life time: 30.000 h (L90 B10)
Bi-colour interface: COM+
Recommendation LED driver and control unit: EL-24V CV series and LED Bi-colour Dimmer or LED PWM-5 Controller 12V/24V 8A BT
Betriebs-/Steuergerätempfehlung: EL-24V CV Serie sowie LED Bi-colour Dimmer
Abmessungen (BxH): 10x1,8 mm; Anzahl LED: 576/m
Farbwiedergabeindex Ra 90; Farbabstand (MacAdam): 6 SDCM
Lebensdauer: 30.000 h (L90 B10)
Bi-colour interface: COM+
weniger lesen
Technical Data
-
Energy consumption labeling
Energy efficiency class F Part number of the light source 5032512046 EPREL-Registration number 1128402 - Temperature specifications
Ambient temperature [Ta] [°C] -20 - 45 - Protection specifications
CE-Conformity yes MM-Test mark yes RoHS yes Protection class III Degree of protection IP20 With protective cover no Installation, electrical engineering expertise yes Only for indoor use yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces - Product contents
Including LED driver no With end piece no - Technical lighting specifications
Type of light source DLS/NMLS Non-directional (NDLS) or directional [DLS] DLS Colour temperature [K] 2700 - 6500 LED efficiency [lm/W] 80 Total luminous flux per coil [lm] 6500 Total luminous flux per meter [lm] 1300 Useful luminous flux (Φuse) [lm] 6000 Useful luminous flux (Φuse) per meter [lm] 1200 Useful luminous flux [Φuse] per coil [lm] 6000 Useful luminous flux (Φuse) related to Wide cone (120°) Beam angle [°] 120 Colour consistency [MacAdam] [SDCM] 3 Colour rendering index Ra 90 Colour rendering index R9 50 Chromaticity coordinates (x) 0,38 Chromaticity coordinates (y) 0,38 Peak luminous intensity [cd] 175 L70B50 - life time at 25°C [h] 30000 L90B10 - life time at 25 °C [h] 30000 Rated lifetime factor 0,9 Lumen maintenance factor 0,96 Lighting Technology used LED Anti-glare shield no Envelope no envelope Colour-tuneable light source yes Total lumen setting adjustable no Colour temperature adjustable yes Constant light output (CLO) no Light source replaceable no High luminance light source no Number of LEDs per meter 576 Number of LEDs per segment 16 - Dimensions and weight
Length [mm] 5000 Length of particular segments [mm] 27,8 Width [mm] 10 Height [mm] 1,8 Weight [g] 1300 - Material and colour
Colour of printed circuit board white Material PVC/copper - Other specifications
Type of luminaire tape Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Electrical specifications
Mains light source (MLS) or non-mains light source (NMLS) NMLS Energy consumption during operation [kWh/1000 h] 75 Lamp power [W] 75 Lamp power per meter [W] 15 Connected Light Source (CLS) no Rated current per meter [A] 0,625 Max. current handling (at 5 m length) [A] 3,125 Voltage type DC Lamp holder without Type of wiring Suitable for through wiring Exchangeable LED driver no Dimmable yes Suitable for dimmer yes Type of dimming PWM LED driver LED operating device voltage-controlled Nominal voltage [V] 24 Lamp type exchangeable no Conductor cross section [mm²] 0,32 Connecting cable (on both sides) [cm] 30
