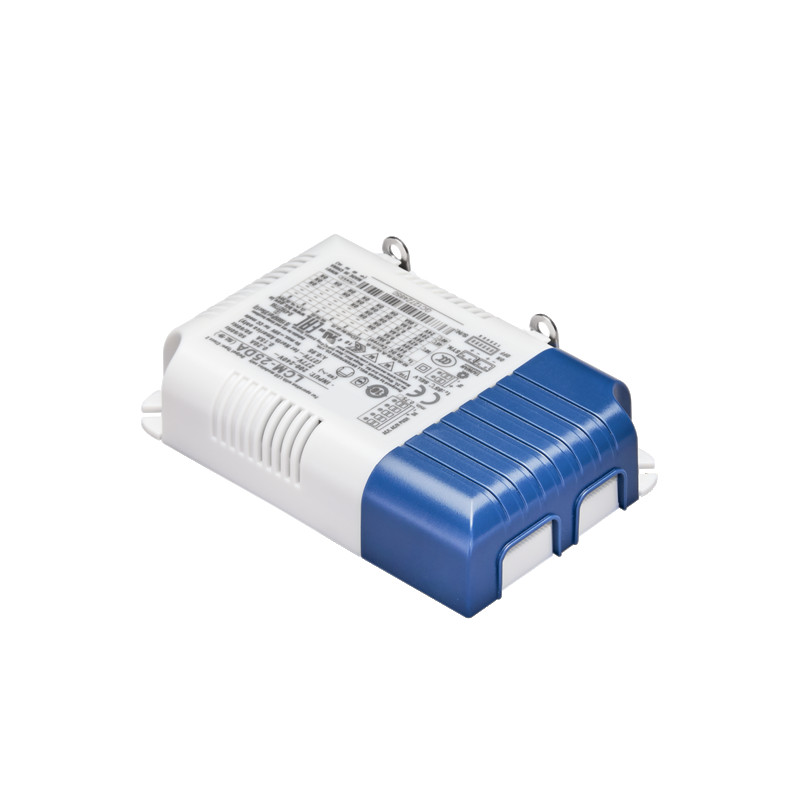

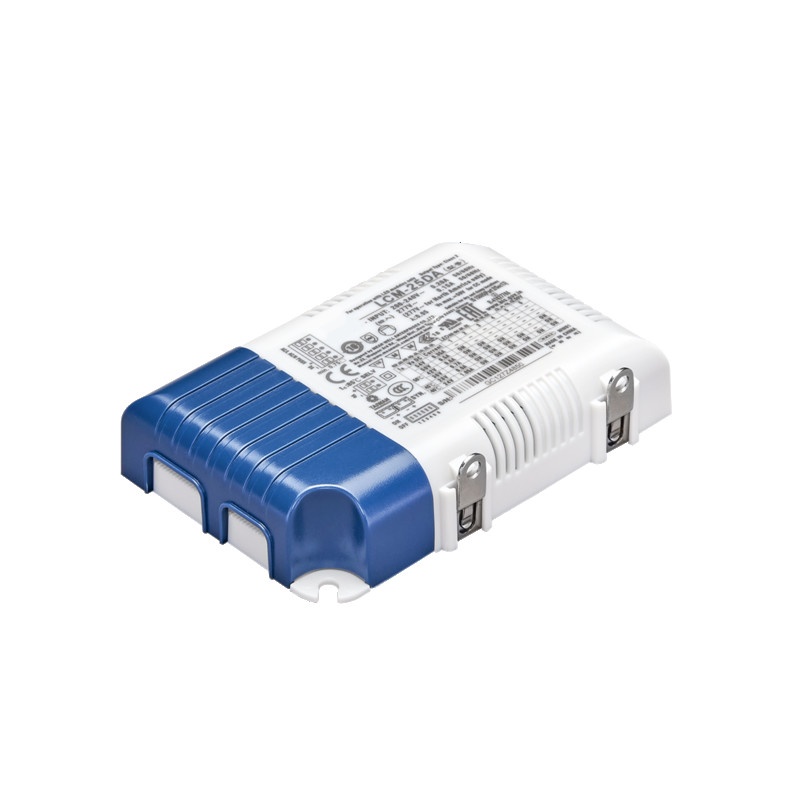

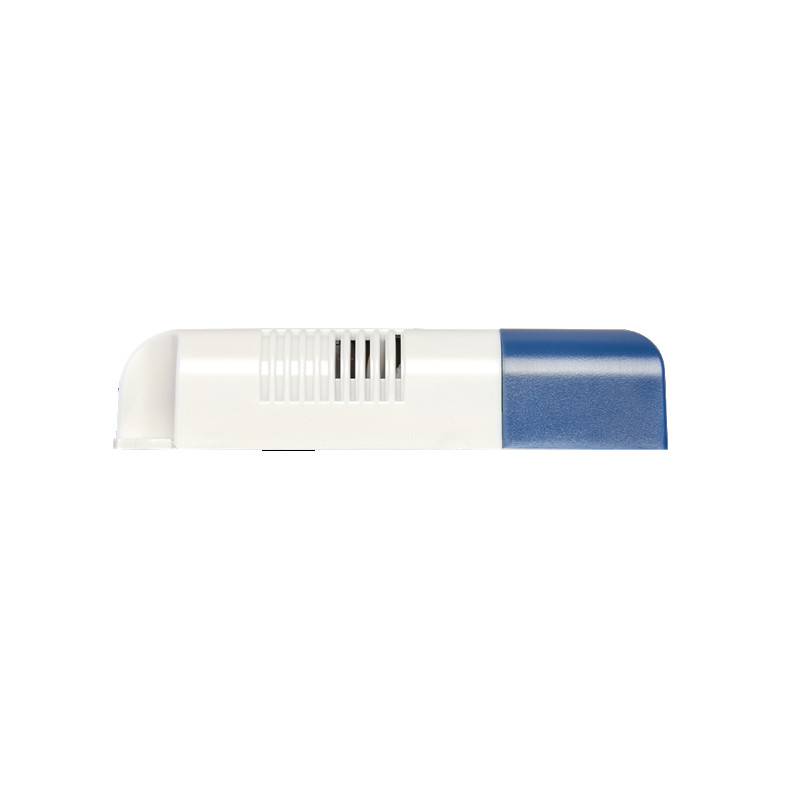

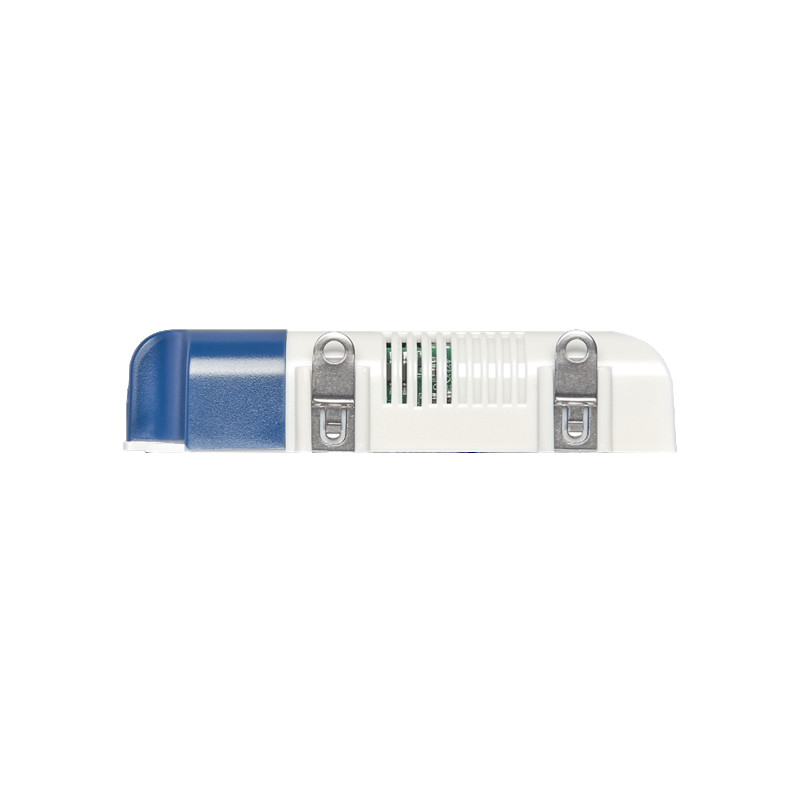

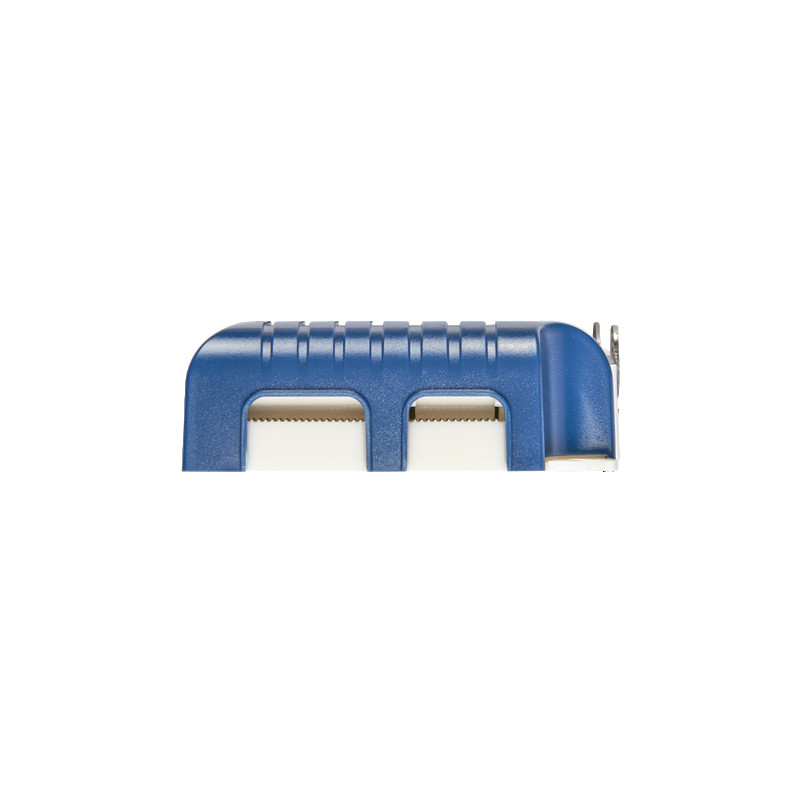

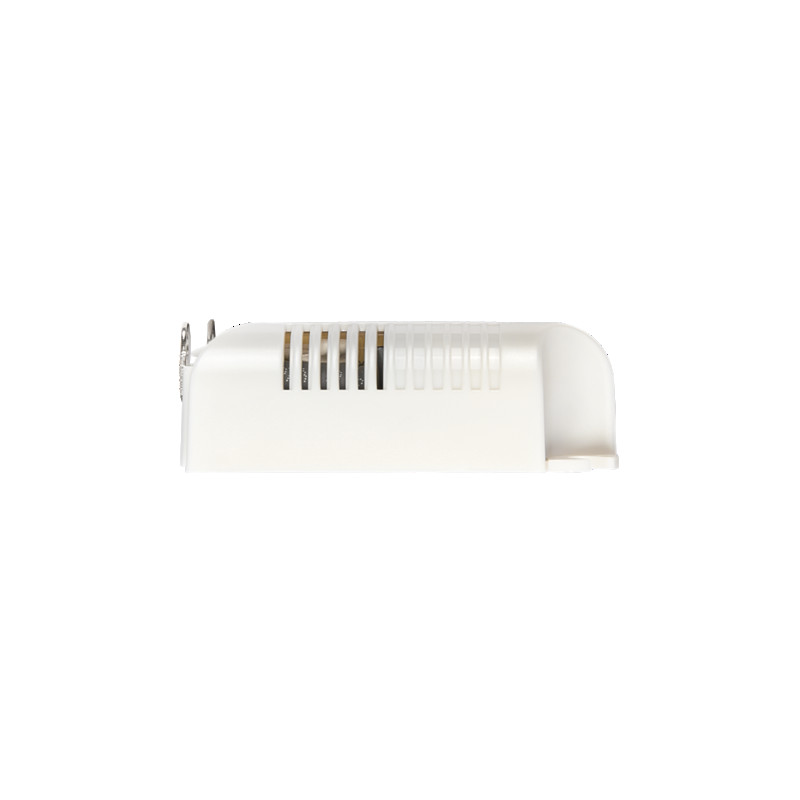

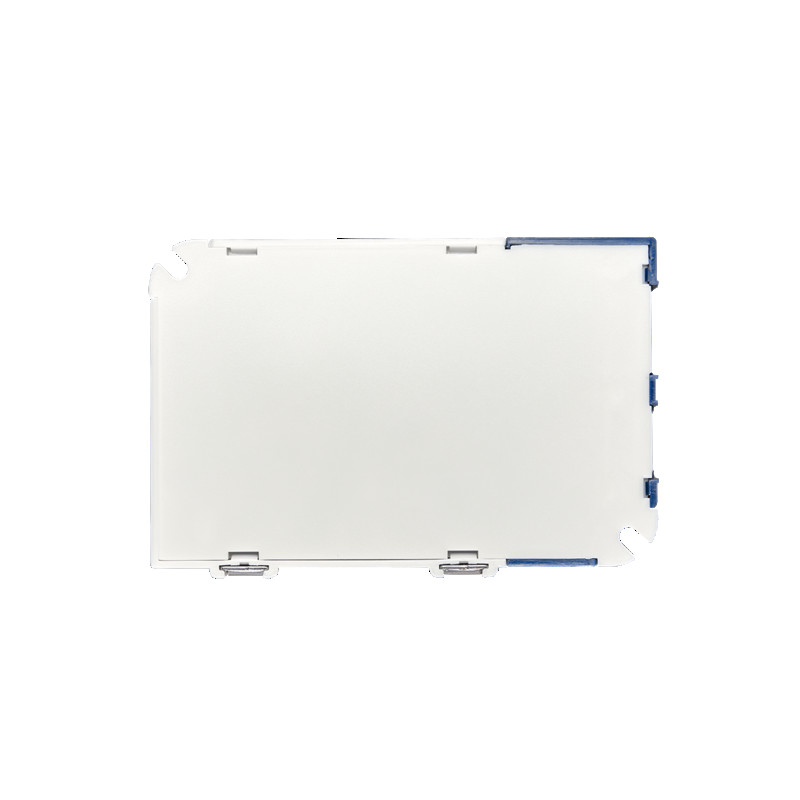

EL-25 Uni 350-1050 dim Dali
LED Driver with constant current, dimmable

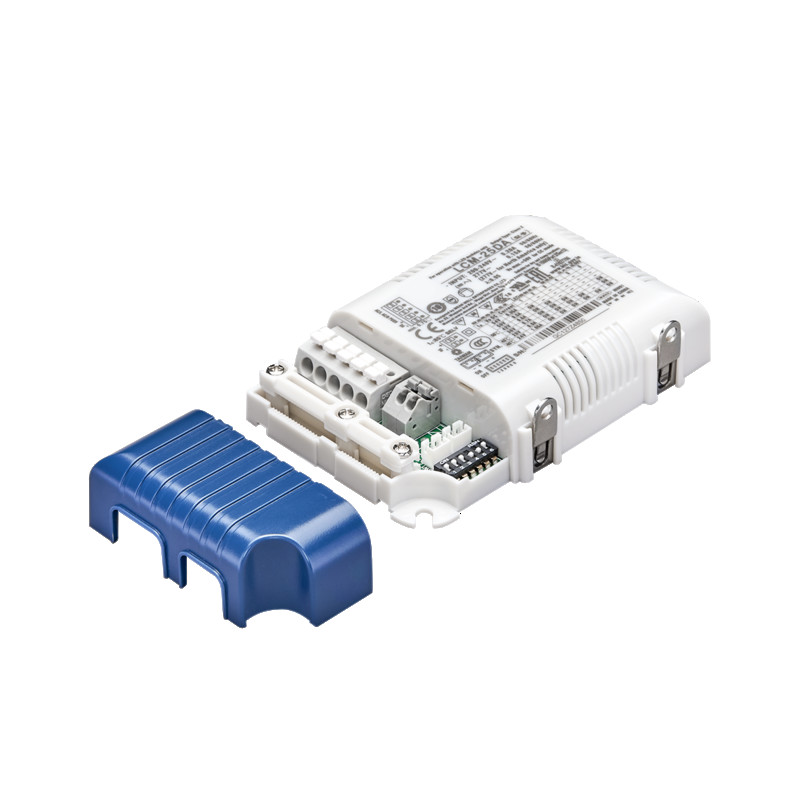

The dimmable LED driver with selectable constant current by DIP switch.
Selectable constant currents: 350mA, 500mA, 600mA, 700mA, 900mA, 1050mA
Type of connection primary: covered screwless terminals 0.5-2.5 mm²
Type of connection secondary: covered screwless terminals 0.5-1.5 mm²
Leistungsfaktor: 0,94
Einstellbare Konstantströme: 350mA, 500mA, 600mA, 700mA, 900mA, 1050mA
Dimmung: Dali-Schnittstelle oder Taster-Dimmung
Anschlussart primär: abgedeckte Klemmstellen 0,5-2,5 mm²
Anschlussart sekundär: abgedeckte Klemmstellen 0,5-1,5 mm²
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes EMC Standard EN 55015:2013 + A1:2015; EN 61547:2010; EN 61000-3-3:2013; EN 61000-3-3:2014; EN 61000-4-2:2009; EN 61000-4-3:2006 + A1:2008 + A2:2010; EN 61000-4-4:2012; EN 61000-4-5:2014; EN 61000-4-6:2014; EN 61000-4-8:2010; EN 61000-4-11:2004 LVD Standard EN 61347-1:2016 + A1:2017 + A2:2018; EN 61347-2-13:2017 SELV yes Protection class II Degree of protection IP20 Safety transformer yes Short-circuit protected yes Protection against short-circuit yes Temperature protection shutdown at [°C] 110 ENEC-Test mark ENEC 18 CB certificate yes RU certificate yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes * F-Test mark yes Note not for no-load operation - Temperature specifications
Ambient temperature [Ta [°C] -30 - 60 Case temperature [Tc] [°C] 90 - Material and colour
Material housing synthetic material Colour housing blue/white - Dimensions and weight
Length [mm] 105 Width [mm] 68 Height [mm] 23 Weight [g] 170 - Other specifications
Model dynamic Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Independant installation yes Application for LED luminaire/LED modules only - Technical lighting specifications
Constant light output (CLO) no - Electrical specifications
Power [W] 25,2 Power at 350mA [W] 2,1 - 18,9 Power at 500mA [W] 3 - 25 Power at 600mA [W] 3,6 - 25,2 Power at 700mA [W] 4,2 - 25,2 Power at 900mA [W] 5,4 - 25,2 Power at 1050mA [W] 6,3 - 25,2 Output voltage at 350mA [V] 6 - 54 Output voltage at 500mA [V] 6 - 50 Output voltage at 600mA [V] 6 - 42 Output voltage at 700mA [V] 6 - 36 Output voltage at 900mA [V] 6 - 28 Output voltage at 1050mA [V] 6 - 24 Input frequency [Hz] 47 - 63 Power factor [at full load] 0,94 Inrush current Cold start 20A (twidh=260μs at 50%Ipeak) at 230VAC Quantity on MCB B16 (max.) 26 Quantity on MCB C16 (max.) 44 Leakage current [mA] 0,5 Connection type primary covered screwless terminals Cable cross section primary [mm²] 0,5 - 2,5 Connection type secondary covered screwless terminals (rigid/flexible cables Ø 0.5 – 1.5 mm²) Cable cross section secondary [mm²] 0,5 - 1,5 Connection dimmer interface Push-Terminal Cable cross section dimmer interface [mm²] 0,5 - 2,5 Dimmable yes Type of dimming Dali-inferface and push dimming function Dimming range [%] 10 - 100 Suitable for DC voltage (primary side) yes Suitable for constant voltage no Suitable for constant current yes Built-in active Power-Factor-Correction yes Input voltage [AC] [V] 180 - 277 Input voltage [DC] [V] 254 - 380 Output current [DC] [mA] 350 - 1050 Input current [A] 0,17 Efficiency/Power factor at full load [%] 86 Suitable for outdoor use no
