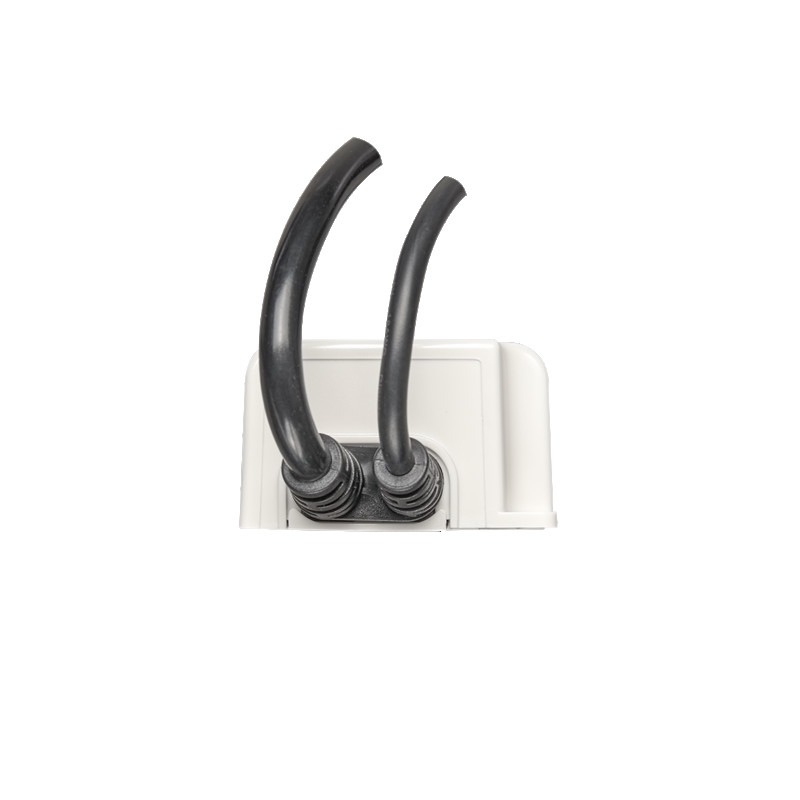

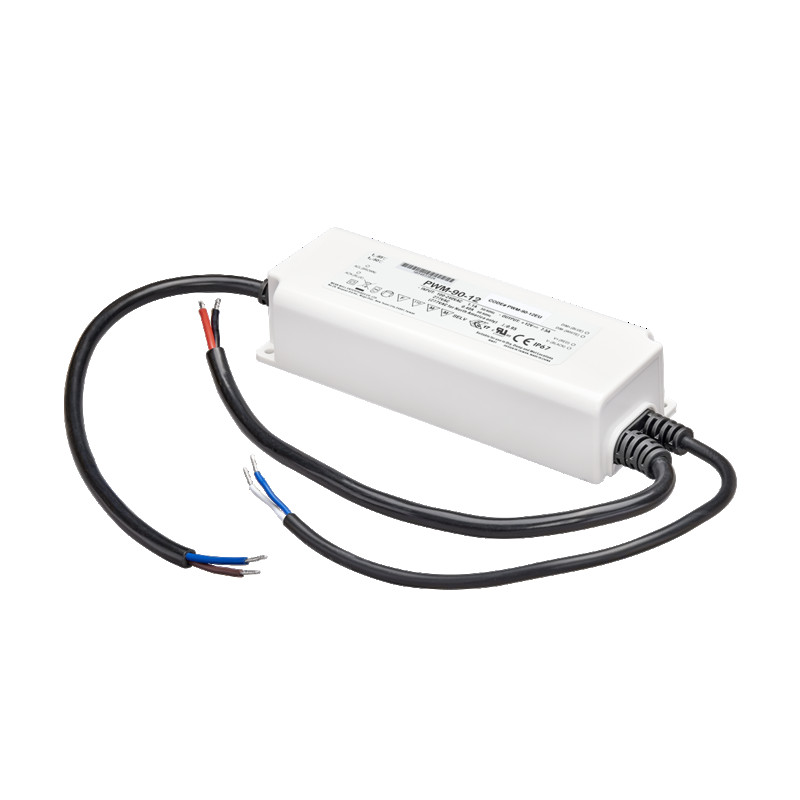

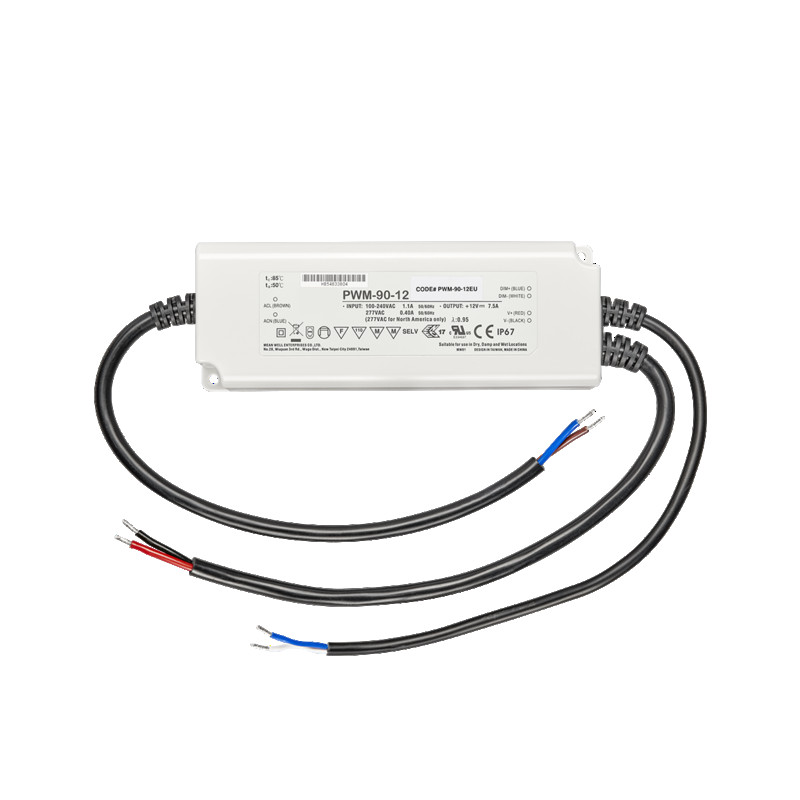

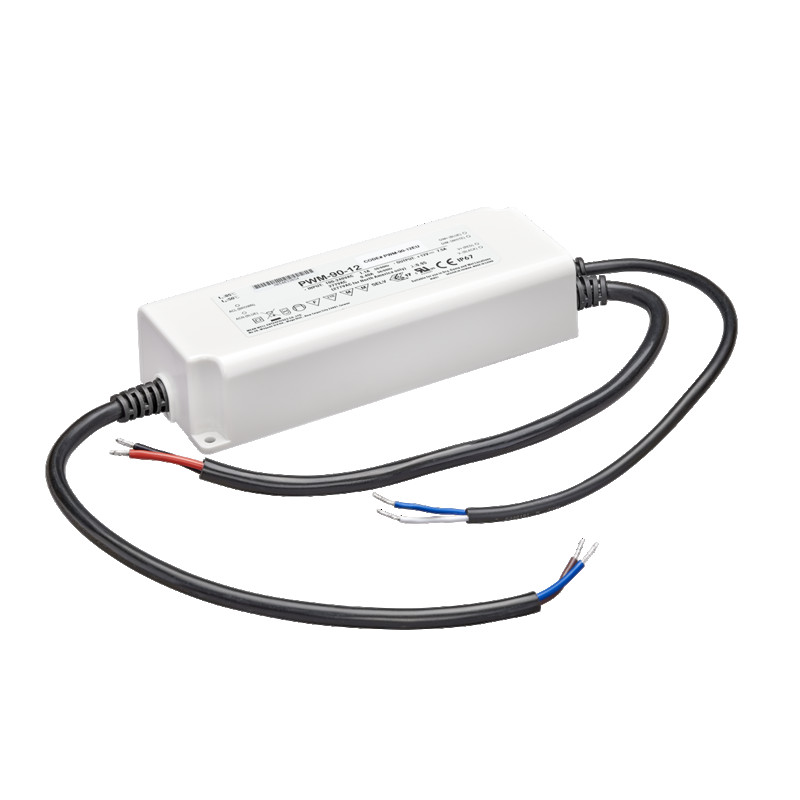

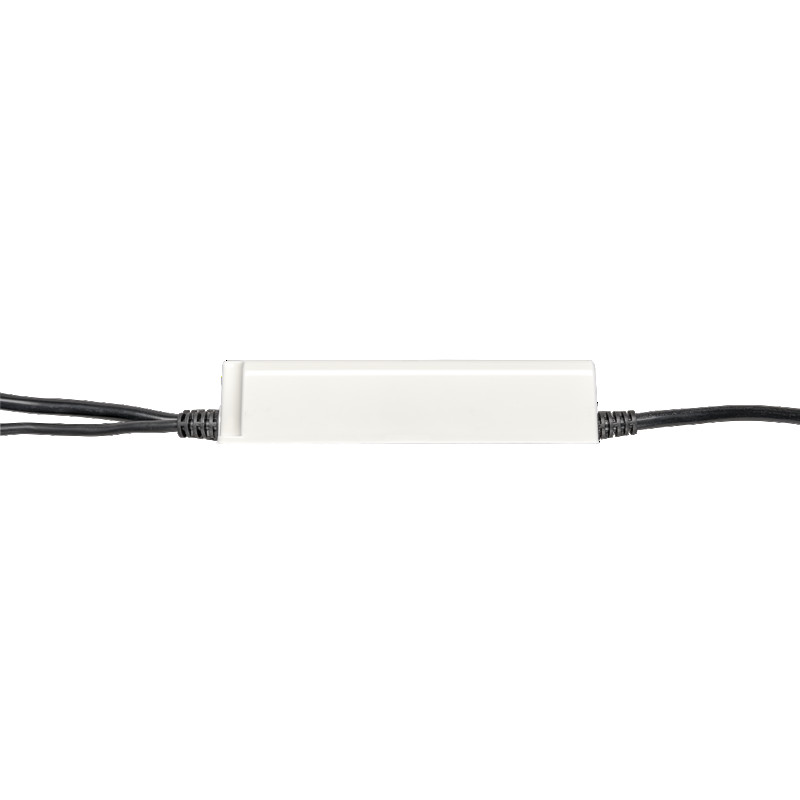

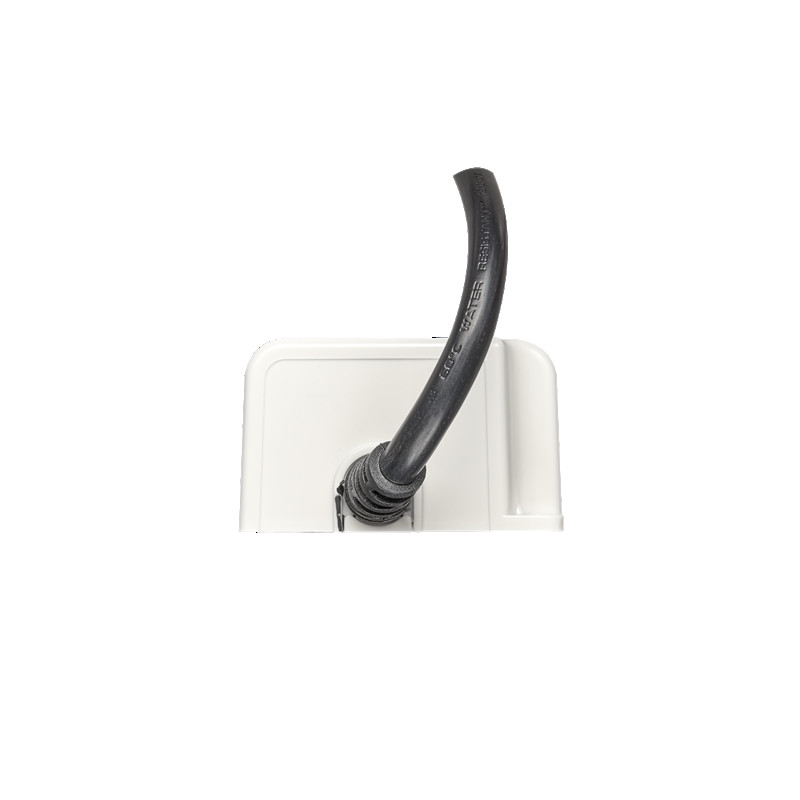

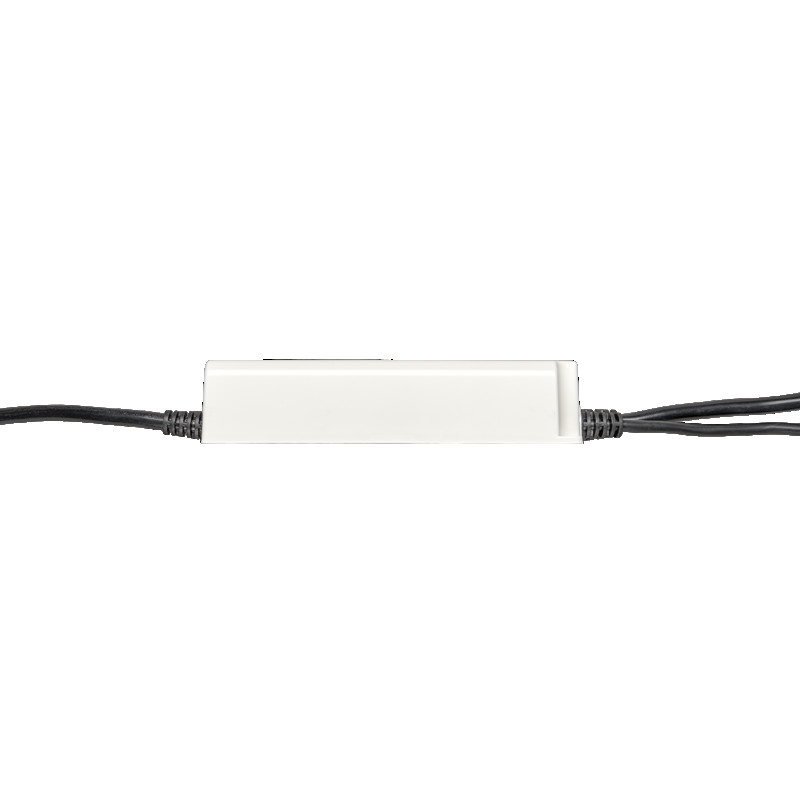

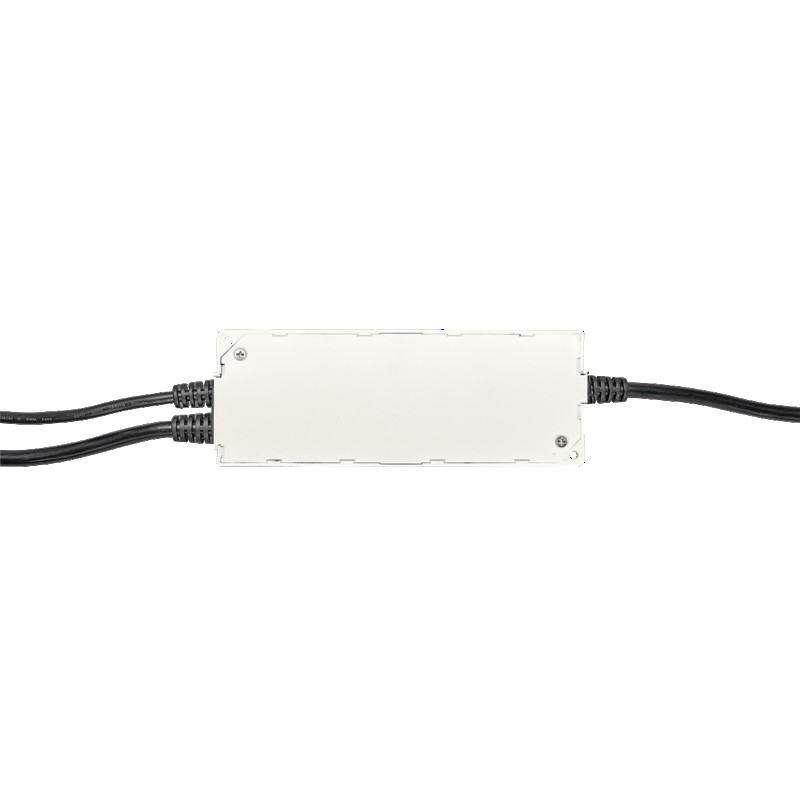

EL-90-12V IP67 dim 1-10V PWM

LED Betriebsgerät mit 12V Konstantspannung
SKU: 8970409012
EAN: 4044538052588
Article Choice

LED Betriebsgerät für Innen- und Außenbereiche.

Anschlussart primär: Anschlussleitung 2x1,0 mm²

Anschlussart sekundär: Anschlussleitung 2x1,0 mm²

weniger lesen
mehr lesen

Downloads

ProduktdatenblattProduktdatenblatt
MontageanleitungMontageanleitung
Ausschreibungstext neutralAusschreibungstext neutral
Ausschreibungstext nobiléAusschreibungstext nobilé

Technical Data

  • Protection specifications
    CE-Conformity yes
    RoHS yes
    SELV yes
    Protection class II
    Degree of protection IP67
    Safety transformer yes
    Short-circuit protected yes
    Protection against short-circuit yes
    Temperature protection shutdown at [°C] 110
    ENEC-Test mark ENEC 17
    CB certificate yes
    RU certificate yes
    Installation, electrical engineering expertise yes
    Only for indoor use no
    Suitable for outdoor use yes
    Furniture installation, fire protection 'MM' yes
    * F-Test mark yes
  • Temperature specifications
    Ambient temperature [Ta] [°C] -40 - 70
    Case temperature [Tc] [°C] 85

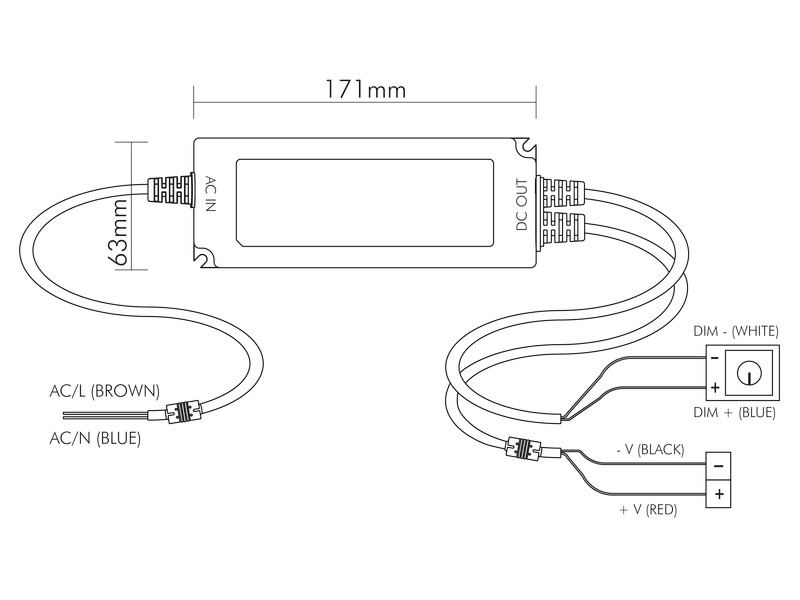

  • Dimensions and weight
    Length [mm] 171
    Width [mm] 63
    Height [mm] 38
    Weight [g] 770
  • Material and colour
    Material synthetic material
    Colour white
  • Other specifications
    Operation by Bluetooth no
    Compatible with Casambi no
    Model static
    Compatible with Apple HomeKit no
    Compatible with Google Assistant no
    Compatible with Amazon Alexa no
    IFTTT support available no
    Kind of disposal at the end of the life time specific collection points, please consider the local regulations
    Independant installation yes
    Application for LED luminaire/LED modules only
  • Technical lighting specifications
    Constant light output (CLO) no
  • Electrical specifications
    Cable length primary [mm] 300
    Cable length secondary [mm] 300
    Conductor cross section primary [mm²] 0,75
    Conductor cross section secondary [mm²] 0,75
    Power [W] 0 - 90
    Output frequency [Hz] 300
    Input frequency [Hz] 47 - 63
    Power factor [at full load] 0,96
    Sink current [dimming] [mA] 9,2
    Connection type primary free, stripped cable ends
    Length of cable primary [cm] 30
    Connection type secondary free, stripped cable ends
    Length of cable secondary [cm] 30
    Dimmable yes
    Type of dimming 1-10V, PWM (10V)
    Suitable for DC voltage (primary side) yes
    Suitable for constant voltage yes
    Suitable for constant current no
    Built-in active Power-Factor-Correction yes
    Input voltage [AC] [V] 90 - 305
    Output voltage [DC] [V] 12
    Input voltage [DC] [V] 127 - 431
    Efficiency/Power factor at full load [%] 88
