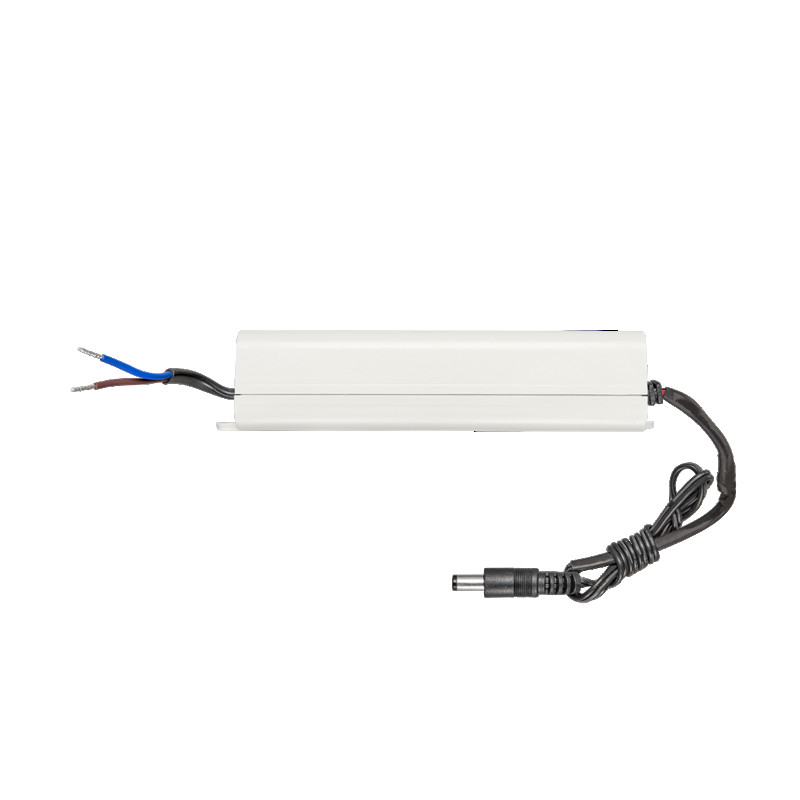

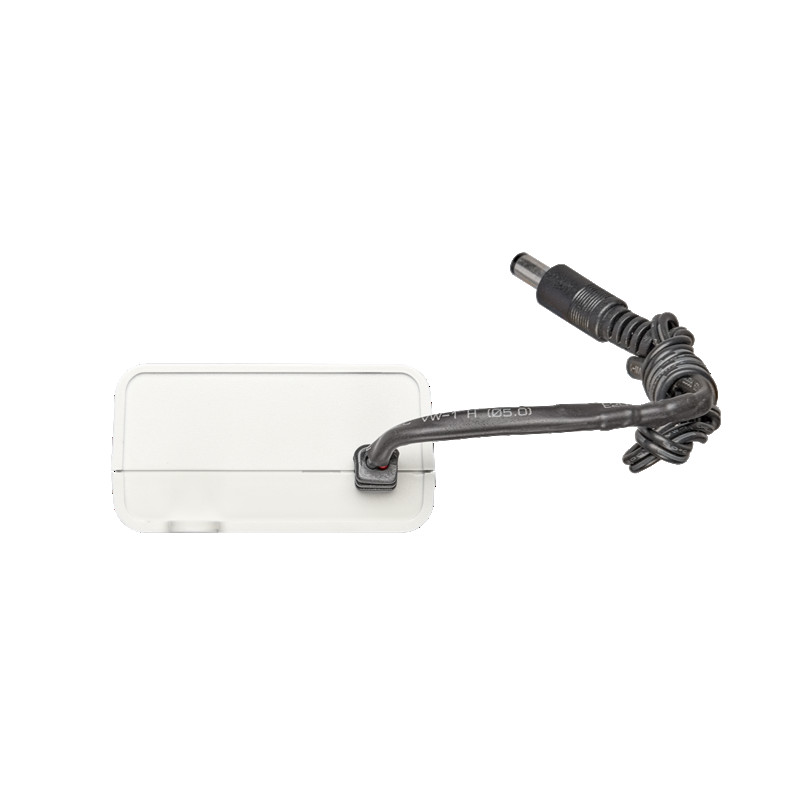

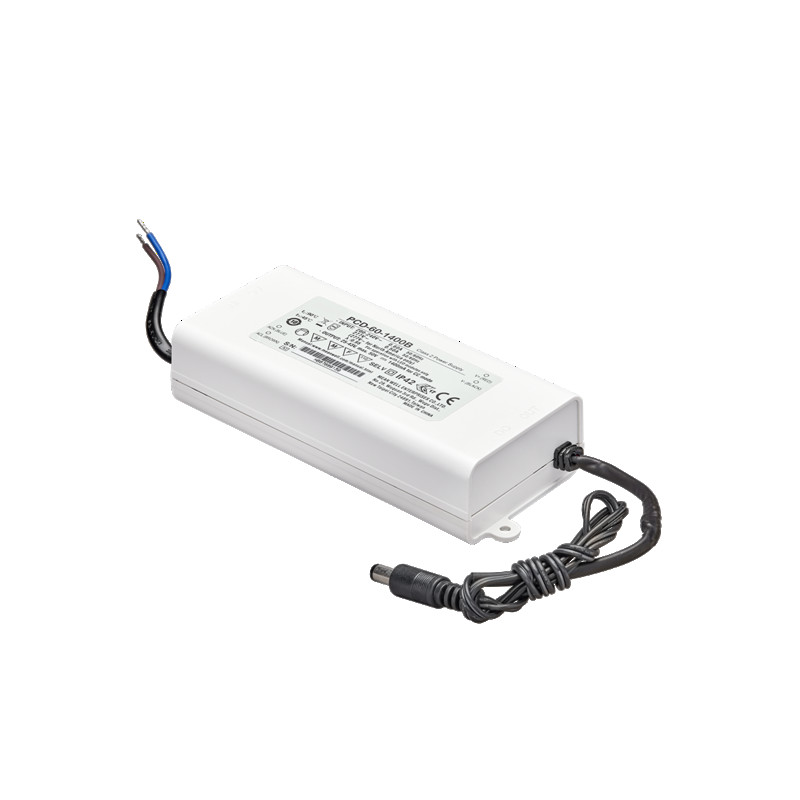

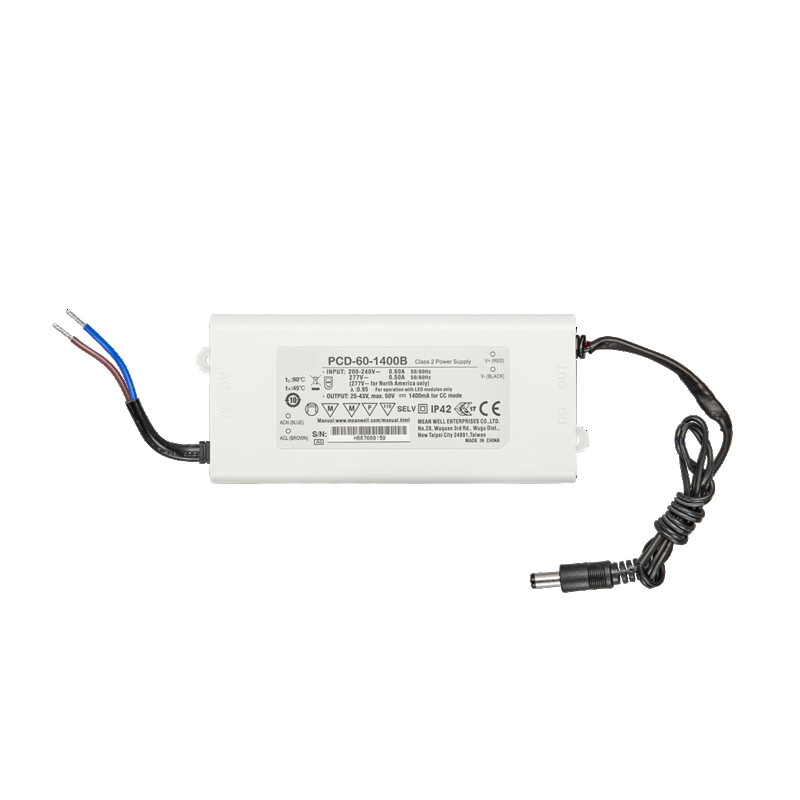

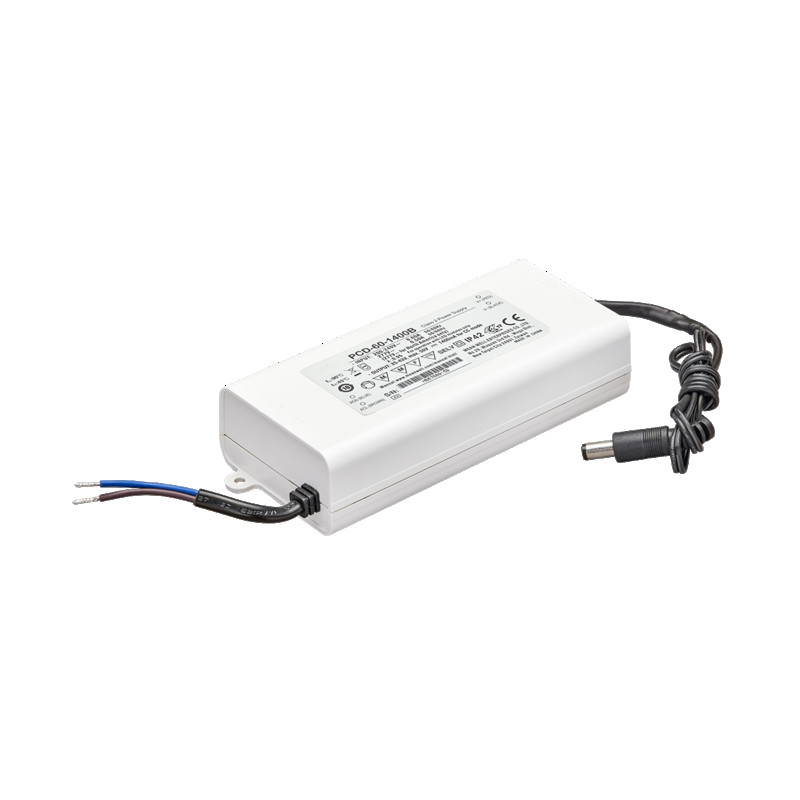

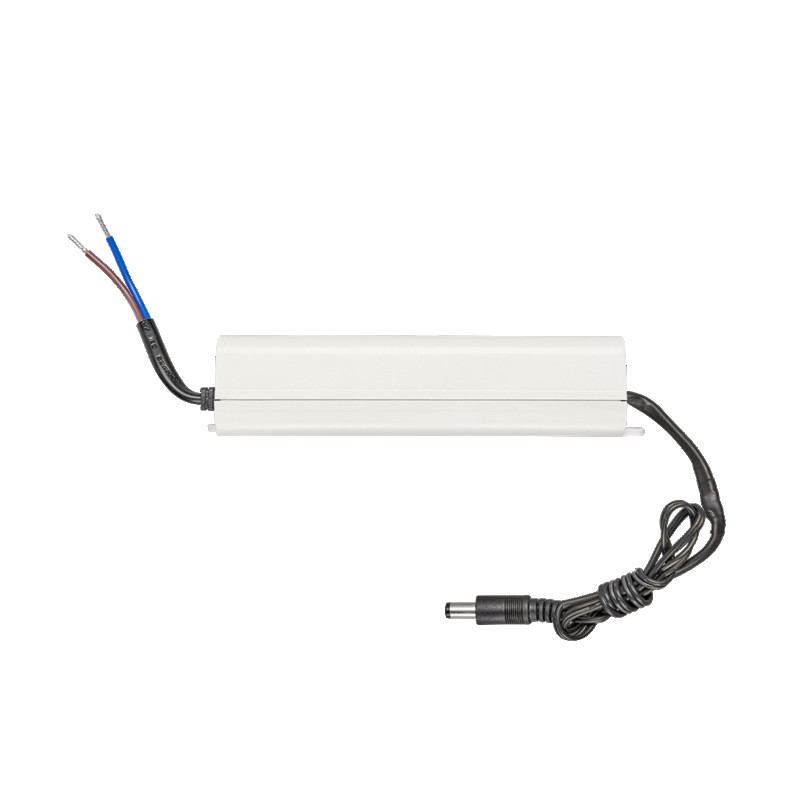

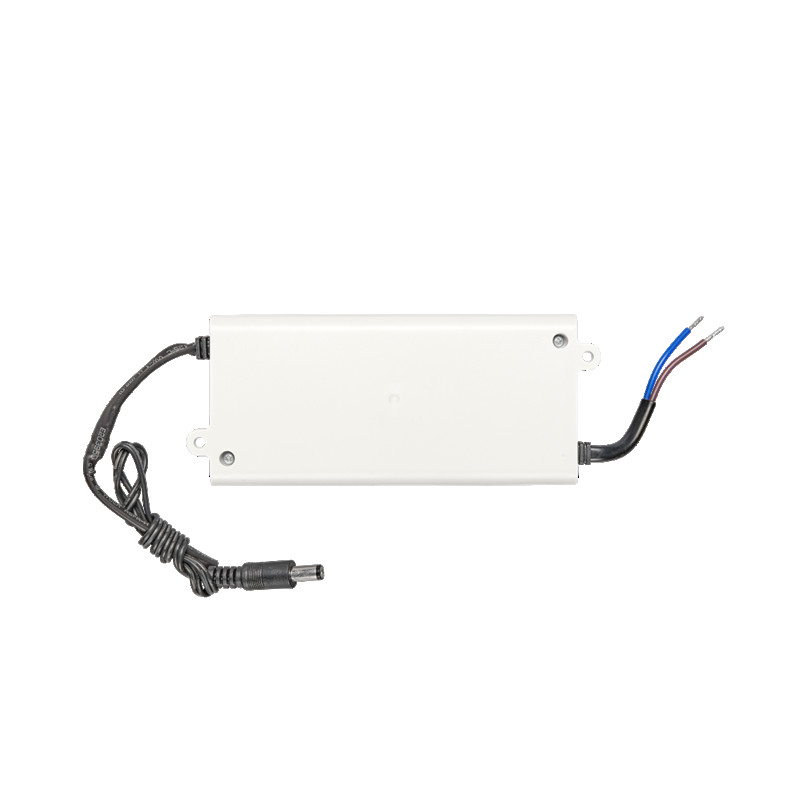

EL-60-1400 D dim C IP30
LED Driver with constant current, dimmable
_ZE.jpg)
_DE-EN.pdf)
_ZE.jpg)
LED driver dimmable.
Admissible temperature: ta -30°C ~ +45°C and tc +90°C
Power factor: 0.9

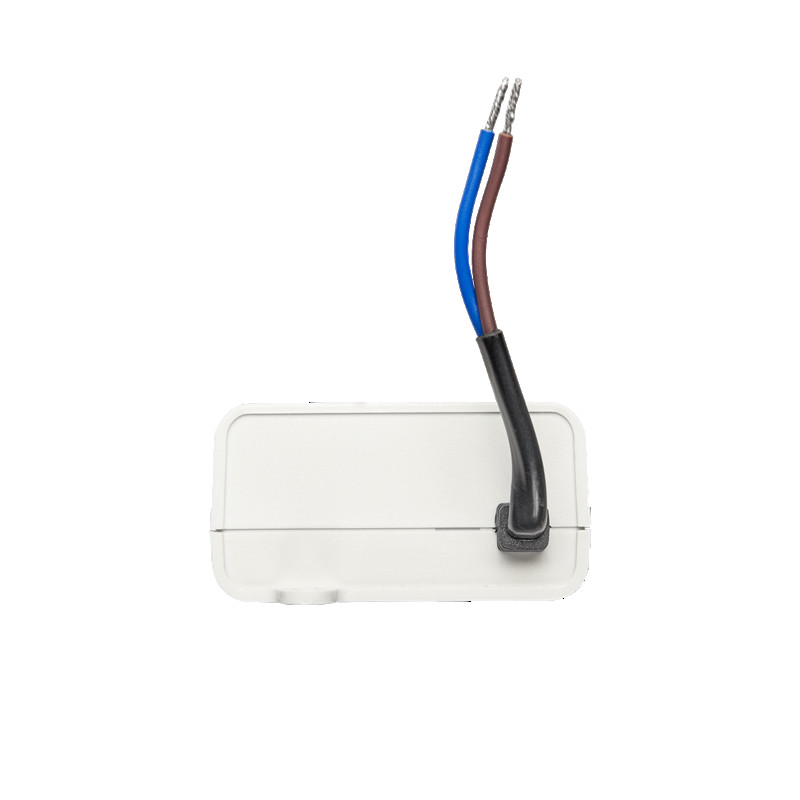

Type of connection primary: connection cable 2x0,75 mm²
Type of connection secondary: jack plug (female)
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes SELV yes Protection class II Degree of protection IP30 Safety transformer yes Short-circuit protected yes Protection against short-circuit yes Temperature protection shutdown at [°C] 110 ENEC-Test mark ENEC 17 RU certificate yes Installation, electrical engineering expertise yes Furniture installation, fire protection 'MM' yes * F-Test mark yes - Temperature specifications
Ambient temperature [Ta [°C] -30 - 45 Case temperature [Tc] [°C] 90 - Dimensions and weight

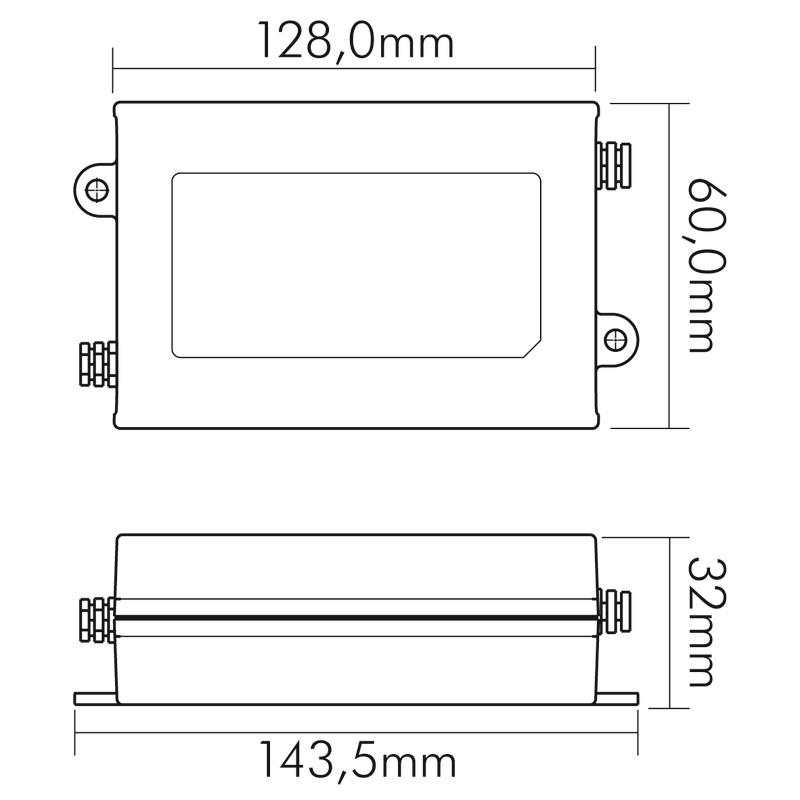

Length [mm] 128 Width [mm] 60 Height [mm] 32 Weight [g] 350 - Material and colour
Material synthetic material Colour white - Other specifications
Operation by Bluetooth no Compatible with Casambi no Model static Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Independant installation yes Application for LED luminaire/LED modules only - Technical lighting specifications
Constant light output (CLO) no - Electrical specifications
Cable length primary [mm] 75 Cable length secondary [mm] 300 Conductor cross section primary [mm²] 0,75 Conductor cross section secondary [mm²] 0,5 Power [W] 60,2 Constant current [mA] 1400 Input frequency [Hz] 47 - 63 Power factor [at full load] 0,9 Connection type primary free, stripped cable ends Connection type secondary jack plug (female) Dimmable yes Type of dimming trailing edge Flicker free yes Suitable for DC voltage (primary side) no Suitable for constant voltage no Suitable for constant current yes Built-in active Power-Factor-Correction yes Input voltage [AC] [V] 180 - 295 Output voltage [DC] [V] 25 - 43 Output current [DC] [mA] 1400 Efficiency/Power factor at full load [%] 85 Suitable for outdoor use no
