LED High Bay 115/184/240 Alu-Reflector 60°

Wall mounting bracket: for installation of LED High Bays on vertical resp. sloping walls or on ceilings if the ceiling height isn’t sufficient for suspension

Material: steel black powder coated

Dimensions (LxWxH): 394x229x127 mm

Lens: the lens enables to reduce the beam angle to 90°. Due to the more directed light a higher efficiency of the illumination is reached and the light is precisely where it’s needed

Material: steel black powder coated/PMMA microprism panel

Dimensions (ØxH): 269.5x34 mm

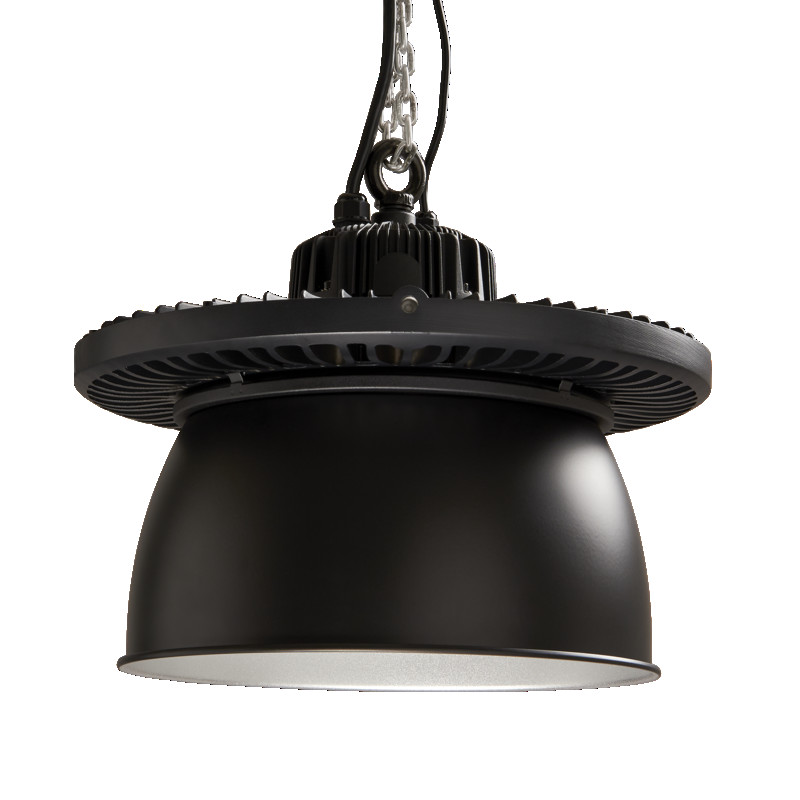

Aluminium reflector: for an optimum illumination, the aluminium reflector reflects the extensively emitted light of the SMD-LEDs conically with a beam angle of 60° (all-round distribution)

Material: aluminium powder coated; outside black/inside silver

Dimensions (ØxH): 327x150 mm

PMMA reflector: for an optimum illumination, the PMMA reflector reflects the extensively emitted light of the SMD-LEDs to all sides with a beam angle of 60° (all-round distribution)

Material: PMMA shiny ribbed

Dimensions (ØxH): 315x144 mm
