LED Panel R3S UGR<19 white 38W 840 MP
LED Panel for easy and rapid installation
SKU:
1560711150
EAN: 4044538062655
EAN: 4044538062655
The luminaire is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.
Optional accessories:
Wall-/Ceiling Mounting
Mounting spring
Mounting frame
Built-in frame
Material: aluminium white painted/Microprism diffuser and light guide made of PMMA (non-yellowing)

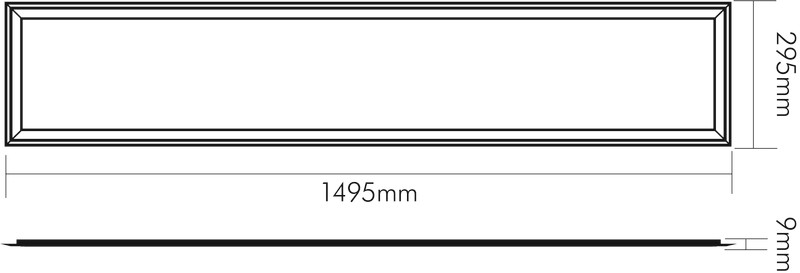

Dimensions (LxWxH): 1495x295x9 mm
Ceiling cut-out (LxW) recessed version: 1480x278 mm
Ceiling cut-out (LxW) lay-in version: 1475x275 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 60.000 h (L80 B10)
LED driver included: non dimmable
Terminal block and through-wiring (L, N, PE)
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class II Degree of protection IP40 Impact strength IK05 Photobiological safety according to EN 62471 RG0 ENEC-Test mark ENEC 05 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' no - Temperature specifications
Ambient temperature [Ta [°C] 0 - 40 - Other specifications
Type of luminaire prism luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for suspended mounting no Suitable for built-in mounting no Suitable for ceiling mounting yes Suitable for surface mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Adjustable version no - Product contents
With light source yes Including LED driver yes Part number of the delivered LED driver 8970421052 Description of the delivered LED driver EL-42-1050 DS nicht dim - Technical lighting specifications
Light cone Open beam/diffuse Colour temperature [K] 4000 Colour of light neutral white LED efficiency [lm/W] 105 LED efficiency [system] [lm/W] 95 Total luminous flux [lm] 4000 Beam angle [°] 90 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 11 Unified Glare Rating [UGR] 19 Anti-glare limiting [UGR] lengthwise 18 Anti-glare limiting [UGR] crosswise 18 Fit for monitor workplace acc. EN 12464-1 yes Luminance y ≥ 65° ≤3000 cd/m2 Peak luminous intensity [cd] 2091 Light distributor Diffuser L80B10 - life time at 25 °C [h] 60000 L70B50 - life time at 25°C [h] 70000 L90B10 - life time at 25 °C [h] 25000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) [%] 70 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) [%] 50 Colour controllable (RGB) no Constant light output (CLO) no Light sharing symmetricl/asymmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 1495 Width [mm] 295 Height [mm] 9 Weight [g] 3800 Installation length (lay-in luminaire) [mm] 1475 Installation width (lay-in luminaire) [mm] 275 Ceiling cut-out (length) [mm] 1480 Ceiling cut-out [width] [mm] 278 - Material and colour
Material aluminium white painted/Microprism diffuser and light guide made of PMMA (non-yellowing) Colour white - Electrical specifications
Lamp power [W] 38 Max. system power [W] 41 Rated voltage of the LED driver [AC [V] 220 - 240 Quantity on MCB B16 (max.) 31 Quantity on MCB C16 (max.) 52 Lamp holder without Type of wiring Through wiring included Wire cross section terminal block Exchangeable LED driver yes Dimmable no Type of dimming non-dimmable Flicker free yes LED driver LED operating device current-controlled Rated current max. [mA] 1050 Rated voltage max. [V] 34 Electrical connection with connector system yes Type of connection [luminaire] connecting cable with jack plug-system
Available Accessories
-
Wall-/ceiling mounting 4-pack for R1S,R2S,R3S (wh)
Accessories for the LED Panel as a wall/ceiling-mounted version
-
Mounting spring 2-pack for LED Panel R1S,R2S,R3S
Accessories for the LED panel as recessed ceiling version
-
Surface mounting frame white for Panel 1500x300
Accessories for the LED panel as a ceiling-mounted version
-
