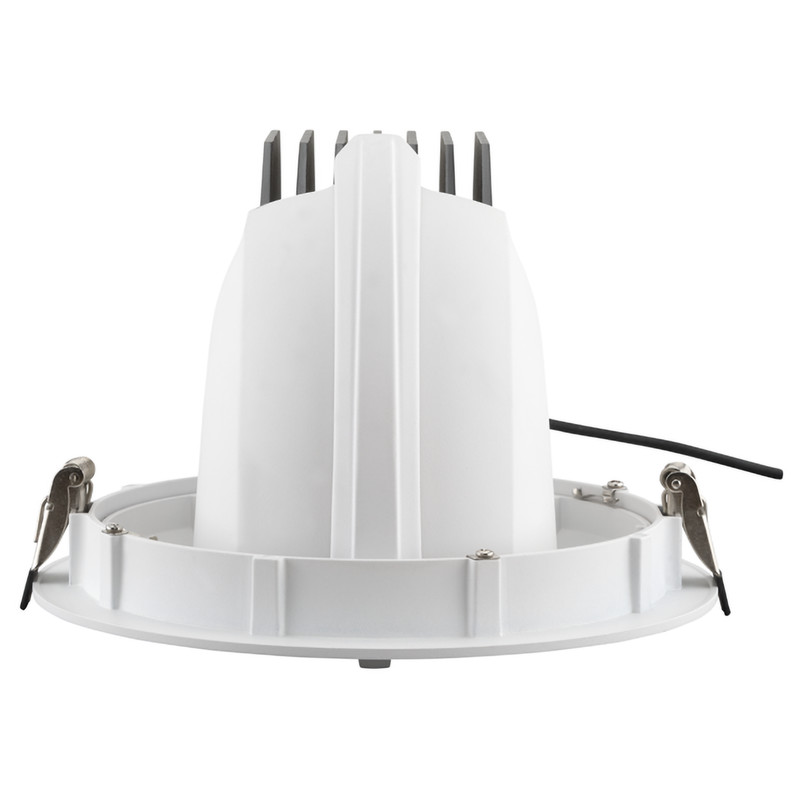

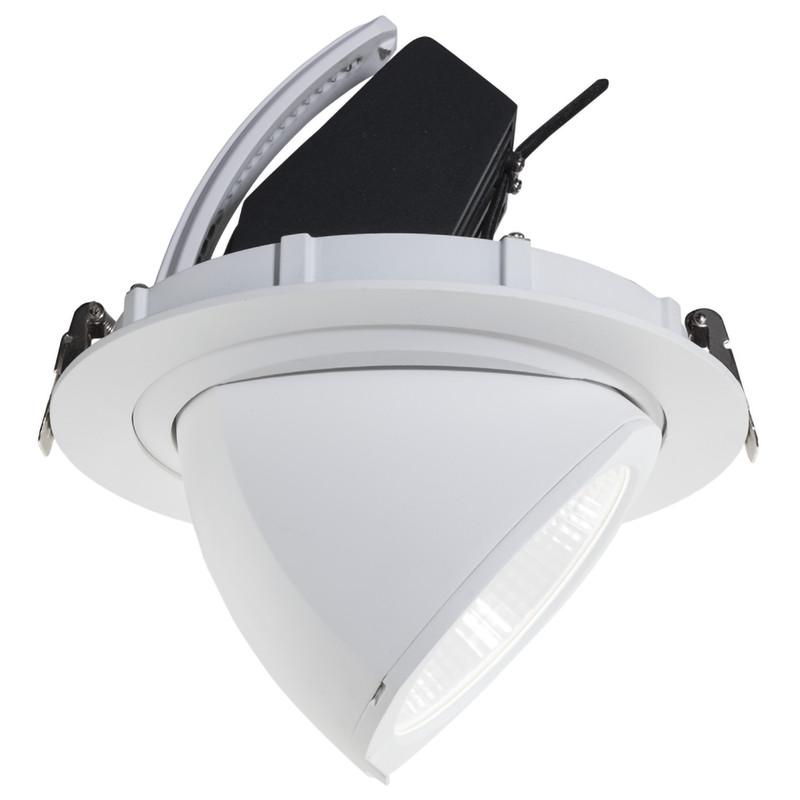

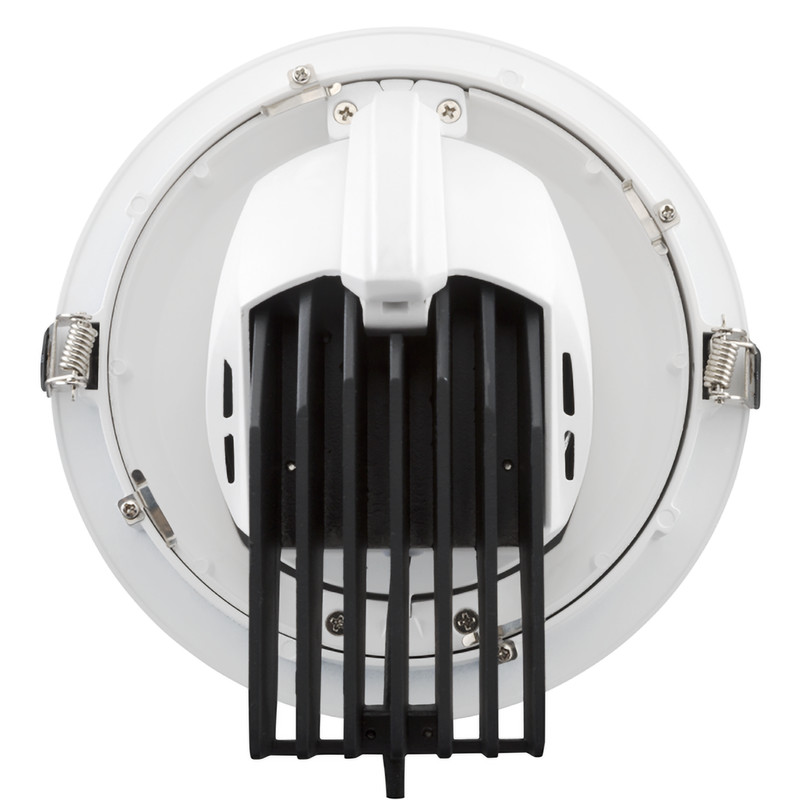

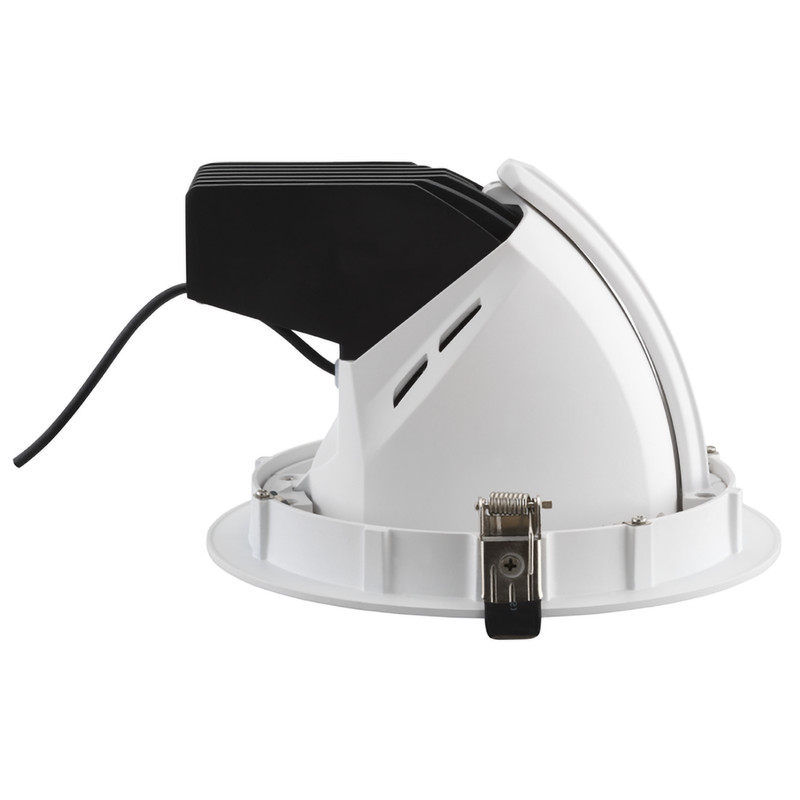

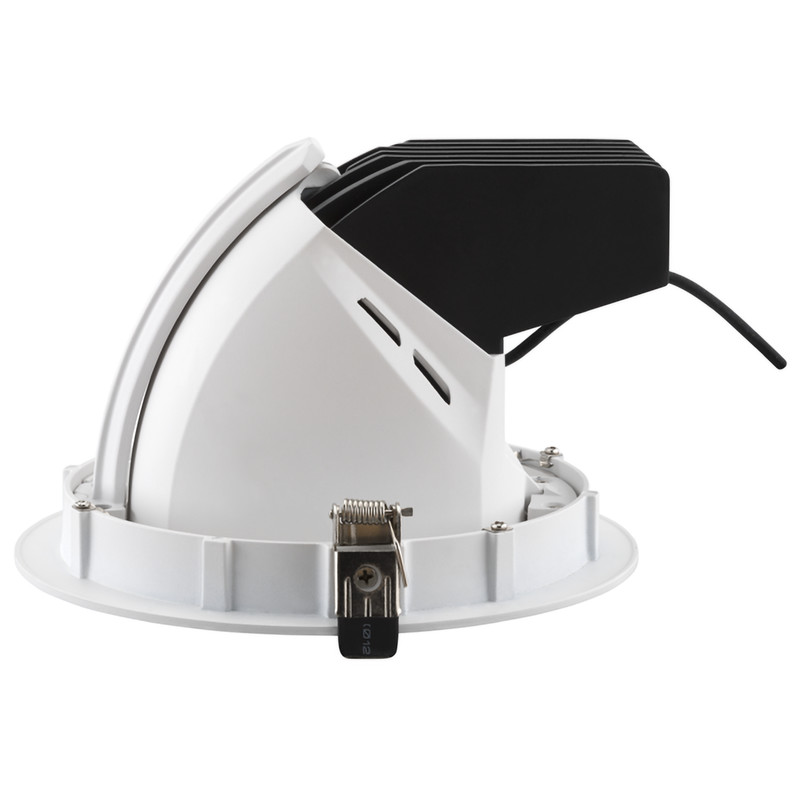

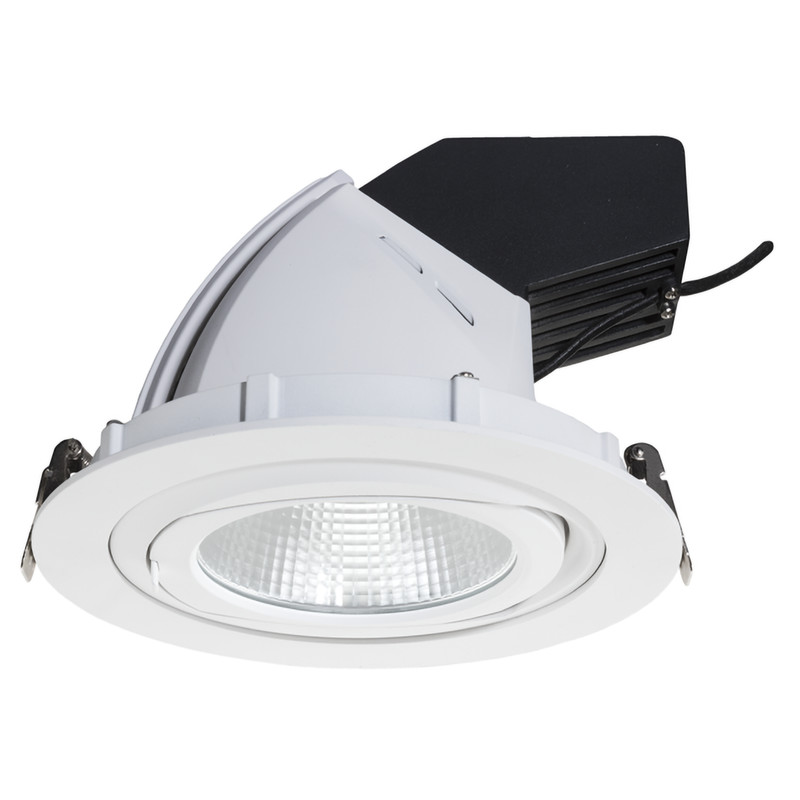

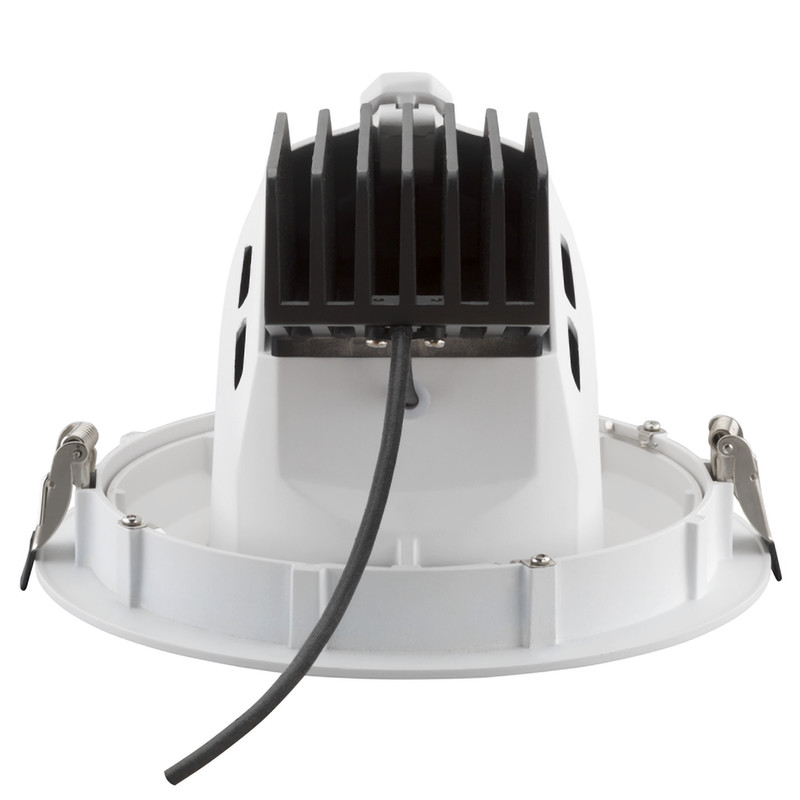

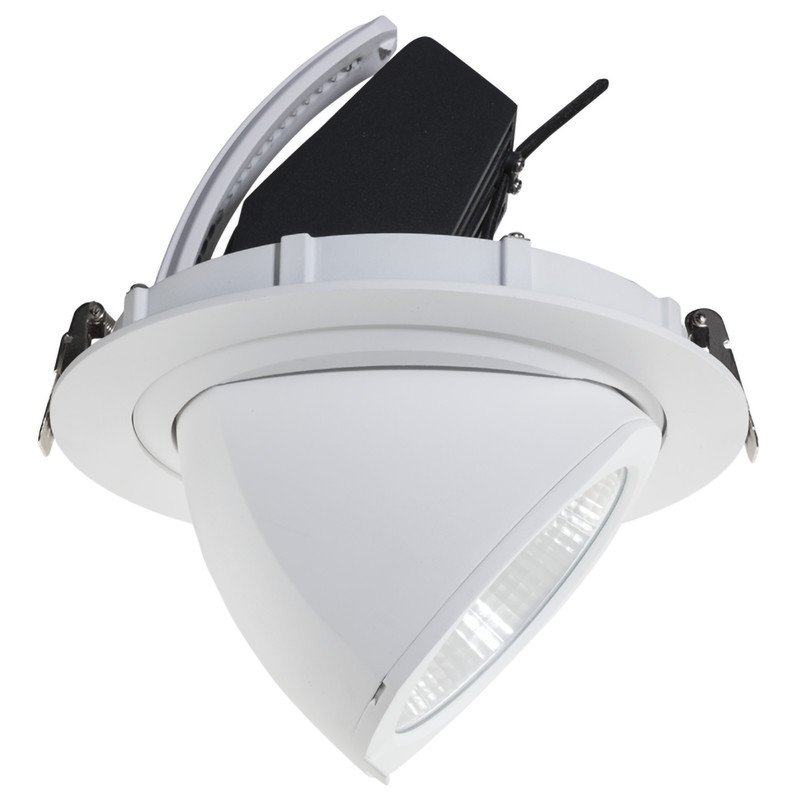

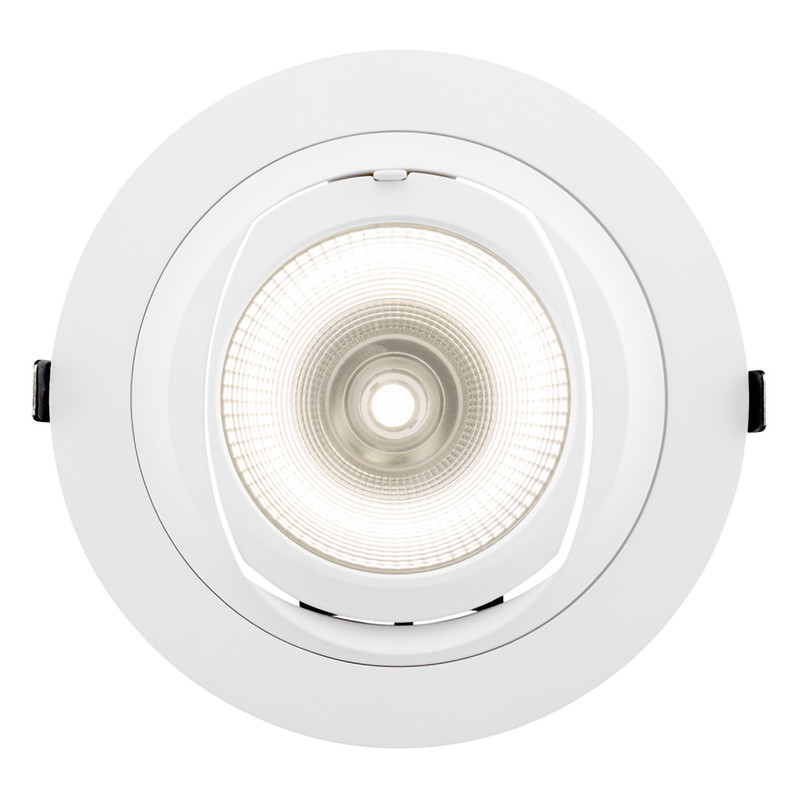

LED Shop Light 38W white 4000K 36° 1050mA

LED Downlight with COB LED - optimal general lighting and brilliance
SKU: 1565383810
EAN: 4044538061771
Article Choice

The innovative Shoplight is the perfect sales promotion. Rotatable and swiveling up to 350 °, thus puts everything in the scene what should be perfectly illuminated. With the right accessories a real sales talent. At the same time, the Shoplight always directs attention to the right place due to its discreet but high-quality appearance.

Material: die-cast aluminium aluminium powder-coated/glass clear

Dimensions (ØxH): 205x163 mm

Ceiling mounting: with mounting springs

Lamp module: rotatable 350°, adjustable 50°

Colour rendering index Ra: 90

Colour distance (MacAdam): 5 SDCM

Life time: 50.000 h (L70 B50)

LED driver: not included

Dimming: Led driver dependent

Recommendation LED driver:

Part no. 8980410010 EL-40 Uni 350-1050 dim 1-10V

Part no. 8980420350 EL-40 Uni 350-1050 dim Dali

weniger lesen
mehr lesen

Downloads

MontageanleitungMontageanleitung
ProduktdatenblattProduktdatenblatt
Lichttechnische Daten (EULUMDAT)Lichttechnische Daten (EULUMDAT)
Lichttechnische Daten (EULUMDAT)Lichttechnische Daten (EULUMDAT)
Lichttechnische Daten (EULUMDAT)Lichttechnische Daten (EULUMDAT)
EU-ProduktdatenblattEU-Produktdatenblatt
EnergieeffizienzlabelEnergieeffizienzlabel

Technical Data

  • Protection specifications
    Covering of the luminaire with thermally insulating material possible no
    CE-Conformity yes
    RoHS yes
    Protection class III
    Degree of protection IP40
    Impact strength IK00
    Thermal insulation mark yes
    Installation, electrical engineering expertise yes
    Only for indoor use yes
    Furniture installation, fire protection 'MM' yes
    Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces
    Installation in insulated ceilings, fire protection 'F with roof' yes
    Note ensure constant convection and do not cover by insulation material
  • Temperature specifications
    Ambient temperature [Ta] [°C] 0 - 40
  • Product contents
    With light source yes
    Including LED driver no
  • Technical lighting specifications
    Light cone Medium beam 21-40°
    Colour temperature [K] 4000
    Colour of light neutral white
    LED efficiency [lm/W] 97
    Total luminous flux [lm] 3700
    Beam angle [°] 36
    Colour consistency [MacAdam] [SDCM] 5
    Colour rendering index Ra 90
    Colour rendering index R9 73
    Fit for monitor workplace acc. EN 12464-1 no
    Peak luminous intensity [cd] 8506
    Light distributor reflector
    L70B50 - life time at 25°C [h] 50000
    Colour controllable (RGB) no
    Light source replaceable no
    Light sharing symmetric
    Light outlet direct
    Lamp type COB LED
    Suitable for number of lamps 1
  • Dimensions and weight
    Length [mm] 205
    Width [mm] 205
    Diameter [mm] 205
    Height [mm] 163
    Weight [g] 1350
    Ceiling cut-out [diameter] [mm] 190
    Built-in depth [mm] 163
    Light portal opening [mm] 100
  • Other specifications
    Adjustability Swivelling
    Mounting method recessed-mounted
    Suitable for general lighting yes
    Suitable for recessed wall installation no
    Suitable for wall mounting no
    Adjustable [°] 50
    Rotatable [°] 350
    Kind of disposal at the end of the life time specific collection points, please consider the local regulations
    Reflector high gloss
    Suitable for lighting accessories no
    Characteristics 6000
    Lamp module cardanic adjustable up to [°] 350
    Ceiling fixing with mounting springs
  • Material and colour
    Reflector colour silver
    Material aluminium white powder coated/clear glass
    Colour white
  • Electrical specifications
    Type of LED driver LED driver
    Lamp power [W] 38
    Constant current [mA] 1050
    Lamp holder without
    Type of connection [luminaire] 30 cm connecting cable with jack plug-system
    Dimmable yes
    Type of dimming Led driver dependent
    Through-wiring possible no
    Rated current max. [mA] 1050
    Rated voltage max. [V] 35
    Electrical connection with connector system yes
