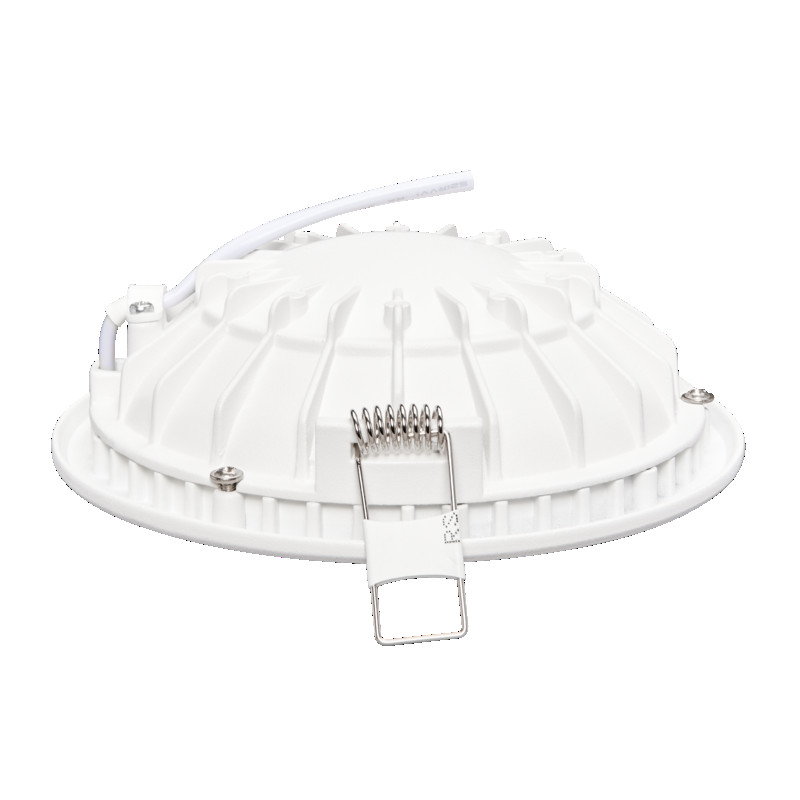

LED Coupole 135 R 8W matt white 830 350mA

LED Coupole 135 R
SKU: 1581351012
EAN: 4044538066035
Article Choice

The unique LED recessed luminaire with a special design: the indirect light of the coupole is effectively reflected into the room by the surface of the inwardly curved dome with virtually no glare, thus ensuring pleasant, uniform room lighting. The LEDs are located at the edge of the dome interior.

Material: aluminium

Dimensions (ØxH): 145x45 mm

Colour rendering index Ra: 80

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)

LED driver: not included

Dimmimg: LED driver dependent

Recommendation LED driver:

Part no. 8999028352 EL-8R-350 non dim CCV female connector, non dimmable

Part no. 8999028351 EL-8R-350 D dim C CCV female connector, dimmable with trailing edge

weniger lesen
mehr lesen

Downloads

ProduktdatenblattProduktdatenblatt
Lichttechnische Daten (EULUMDAT)Lichttechnische Daten (EULUMDAT)
MontageanleitungMontageanleitung
EU-ProduktdatenmblattEU-Produktdatenmblatt
EnergieeffizienzlabelEnergieeffizienzlabel
Ausschreibungstext neutralAusschreibungstext neutral
Ausschreibungstext nobiléAusschreibungstext nobilé

Technical Data

  • Protection specifications
    Covering of the luminaire with thermally insulating material possible no
    CE-Conformity yes
    RoHS yes
    Protection class III
    Degree of protection IP20
    Impact strength IK00
    Thermal insulation mark yes
    Installation, electrical engineering expertise yes
    Only for indoor use yes
    Furniture installation, fire protection 'MM' yes
    Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces
    Installation in insulated ceilings, fire protection 'F with roof' no
    Note ensure constant convection and do not cover by insulation material
  • Temperature specifications
    Ambient temperature [Ta] [°C] 0 - 40
  • Other specifications
    Type of luminaire panel luminaire
    Mounting method recessed-mounted
    Suitable for general lighting yes
    Suitable for recessed wall installation yes
    Suitable for wall mounting no
    Suitable for suspended mounting no
    Suitable for light line configuration no
    Operation by Bluetooth no
    Compatible with Apple HomeKit no
    Compatible with Google Assistant no
    Compatible with Amazon Alexa no
    IFTTT support available no
    Kind of disposal at the end of the life time specific collection points, please consider the local regulations
    Reflector without
    Adjustable version no
  • Product contents
    With light source yes
    Including LED driver no
    Cable suspension supplied with the product no
  • Technical lighting specifications
    Light cone Extreme wide beam >80°
    Colour temperature [K] 3000
    Colour of light warm white
    Total luminous flux [lm] 680
    Beam angle [°] 120
    Colour consistency [MacAdam] [SDCM] 3
    Colour rendering index Ra 80
    Colour rendering index R9 6
    Fit for monitor workplace acc. EN 12464-1 no
    Peak luminous intensity [cd] 180
    Light distributor Diffuser
    L80B10 - life time at 25 °C [h] 50000
    L70B50 - life time at 25°C [h] 50000
    Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80
    Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10
    Colour controllable (RGB) no
    Constant light output (CLO) no
    Light sharing symmetric
    Light outlet direct
    Lamp type SMD-LED
    Suitable for number of lamps 1
  • Dimensions and weight
    Diameter [mm] 145
    Height [mm] 45
    Weight [g] 170
    Ceiling cut-out [diameter] [mm] 130
    Built-in depth [mm] 45
    Light portal opening [mm] 105
  • Material and colour
    Material aluminium
    Colour matt white
  • Electrical specifications
    Type of LED driver LED driver
    Lamp power [W] 8
    Rated voltage of luminaire [DC] [V] 24
    Constant current [mA] 350
    Lamp holder other
    Wire cross section CCV male plug (+ CCV female plug with open cable ends)
    Dimmable yes
    Type of dimming Led driver dependent
    Through-wiring possible yes
    Electrical connection with connector system yes
