LED Coupole 200 R 15W matt white 840 350mA

LED Coupole 200 R
SKU: 1582001011
EAN: 4044538066080
Article Choice

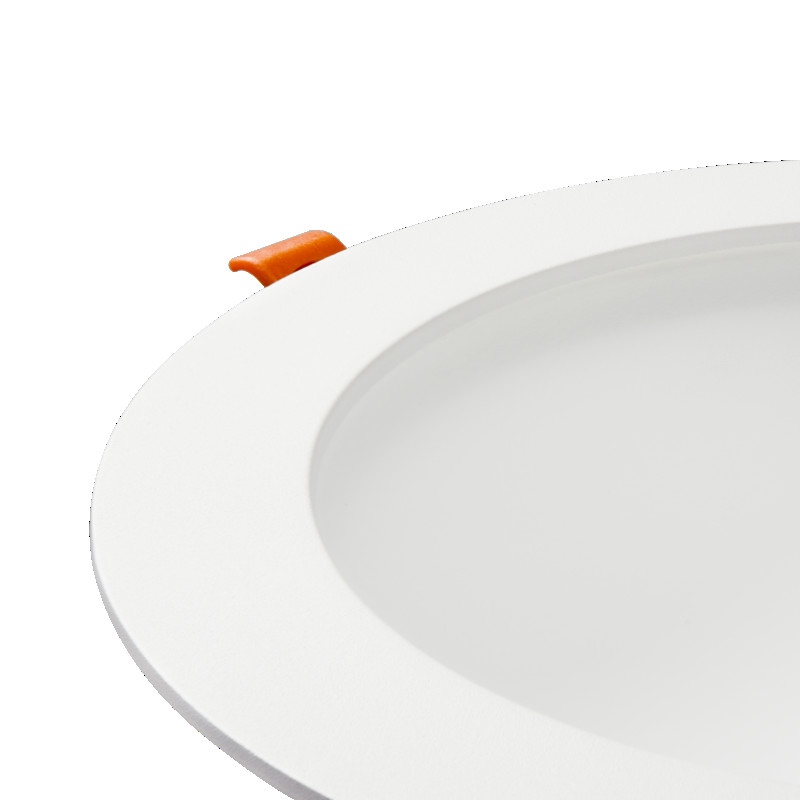

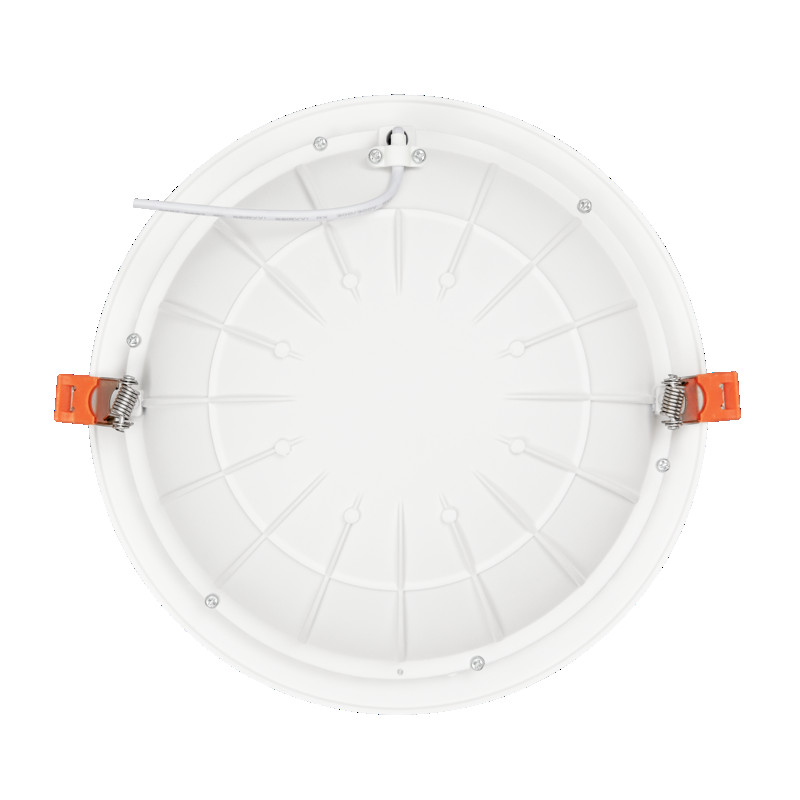

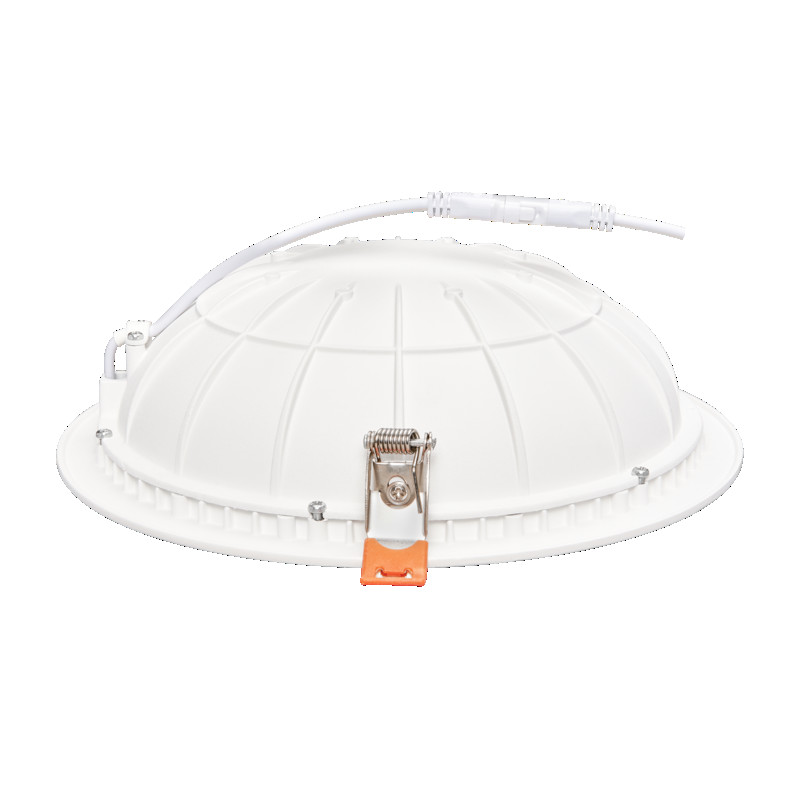

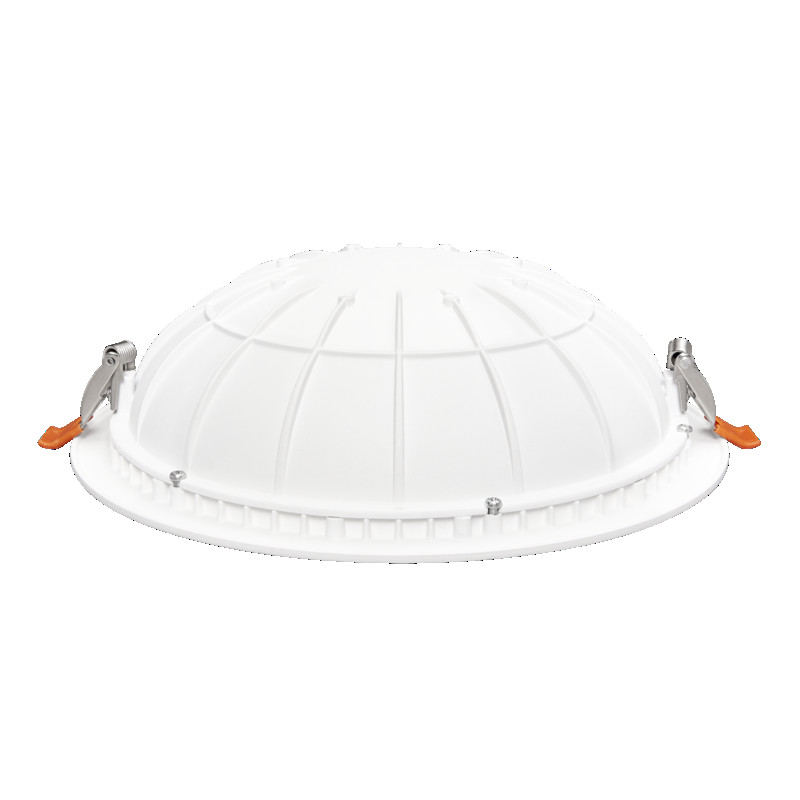

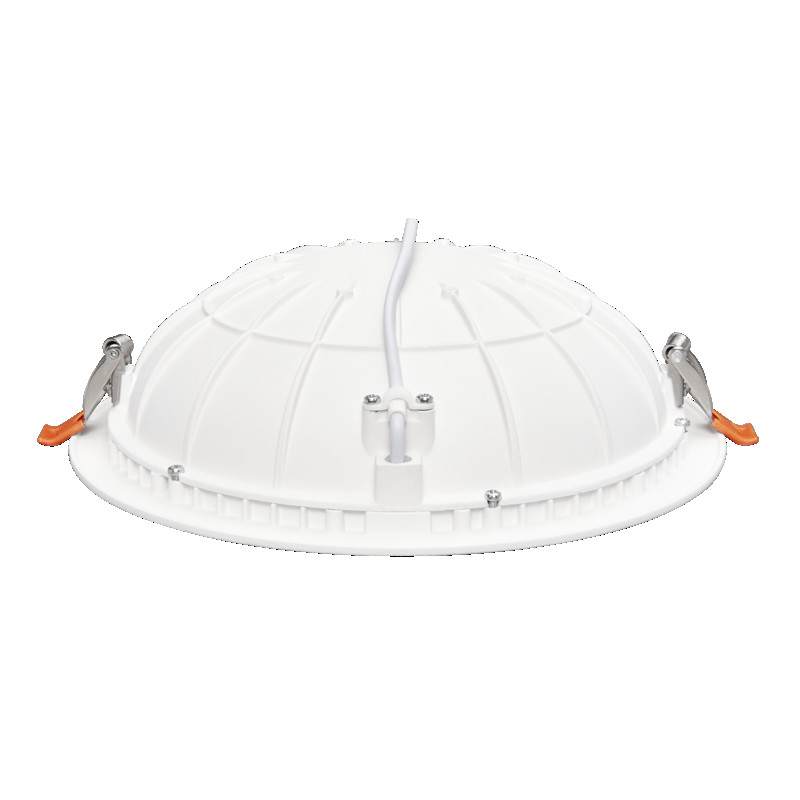

The unique LED recessed luminaire with a special design: the indirect light of the coupole is effectively reflected into the room by the surface of the inwardly curved dome with virtually no glare, thus ensuring pleasant, uniform room lighting. The LEDs are located at the edge of the dome interior.

Material: aluminium

Dimensions (ØxH): 225x65 mm

Colour rendering index Ra: 80

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)

LED driver: not included

Dimmimg: LED driver dependent

Recommendation LED driver:

Part no. 8990153510 EL-15-350 non dim, non dimmable

Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge

weniger lesen
mehr lesen

Downloads

ProduktdatenblattProduktdatenblatt
Lichttechnische Daten (EULUMDAT)Lichttechnische Daten (EULUMDAT)
MontageanleitungMontageanleitung
EU-ProduktdatenblattEU-Produktdatenblatt
EnergieeffizienzlabelEnergieeffizienzlabel
Ausschreibungstext neutralAusschreibungstext neutral
Ausschreibungstext nobiléAusschreibungstext nobilé

Technical Data

  • Protection specifications
    Covering of the luminaire with thermally insulating material possible no
    CE-Conformity yes
    RoHS yes
    LVD Standard EN 60598-1; EN 60598-2-2; EN 62471
    Protection class III
    Degree of protection IP20
    Impact strength IK00
    Thermal insulation mark yes
    Installation, electrical engineering expertise yes
    Only for indoor use yes
    Furniture installation, fire protection 'MM' yes
    Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces
    Installation in insulated ceilings, fire protection 'F with roof' no
    Note ensure constant convection and do not cover by insulation material
  • Temperature specifications
    Ambient temperature [Ta] [°C] 0 - 25
  • Product contents
    Including LED driver no
    Cable suspension supplied with the product no
  • Technical lighting specifications
    Light cone Extreme wide beam >80°
    Colour temperature [K] 4000
    Colour of light neutral white
    Total luminous flux [lm] 1700
    Beam angle [°] 120
    Colour consistency [MacAdam] [SDCM] 3
    Colour rendering index Ra 80
    Colour rendering index R9 8
    Fit for monitor workplace acc. EN 12464-1 no
    Peak luminous intensity [cd] 464
    Light distributor Diffuser
    L80B10 - life time at 25 °C [h] 50000
    L70B50 - life time at 25°C [h] 50000
    Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80
    Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10
    Colour controllable (RGB) no
    Constant light output (CLO) no
    Light source replaceable no
    Light sharing symmetric
    Light outlet direct
    Lamp type SMD-LED
    Suitable for number of lamps 1
  • Dimensions and weight
    Diameter [mm] 225
    Height [mm] 65
    Weight [g] 370
    Ceiling cut-out [diameter] [mm] 195
    Built-in depth [mm] 65
    Light portal opening [mm] 170
  • Electrical specifications
    Type of LED driver LED driver
    Lamp power [W] 15
    Nominal current of luminaire [mA] 350
    Rated voltage of luminaire [DC] [V] 43
    Constant current [mA] 350
    Wire cross section CCV male plug (+ CCV female plug with open cable ends)
    Length of cable [luminaire] [cm] 30
    Dimmable yes
    Type of dimming non-dimmable
    Through-wiring possible yes
    Electrical connection with connector system yes
    Conductor diameter [mm²] 0,33
  • Material and colour
    Material aluminium
    Colour matt white
  • Other specifications
    Type of luminaire panel luminaire
    Suitable for general lighting yes
    Suitable for recessed wall installation yes
    Suitable for wall mounting no
    Suitable for suspended mounting no
    Suitable for light line configuration no
    Operation by Bluetooth no
    Compatible with Apple HomeKit no
    Compatible with Google Assistant no
    Compatible with Amazon Alexa no
    IFTTT support available no
    Kind of disposal at the end of the life time specific collection points, please consider the local regulations
    Reflector without
    Adjustable version no
