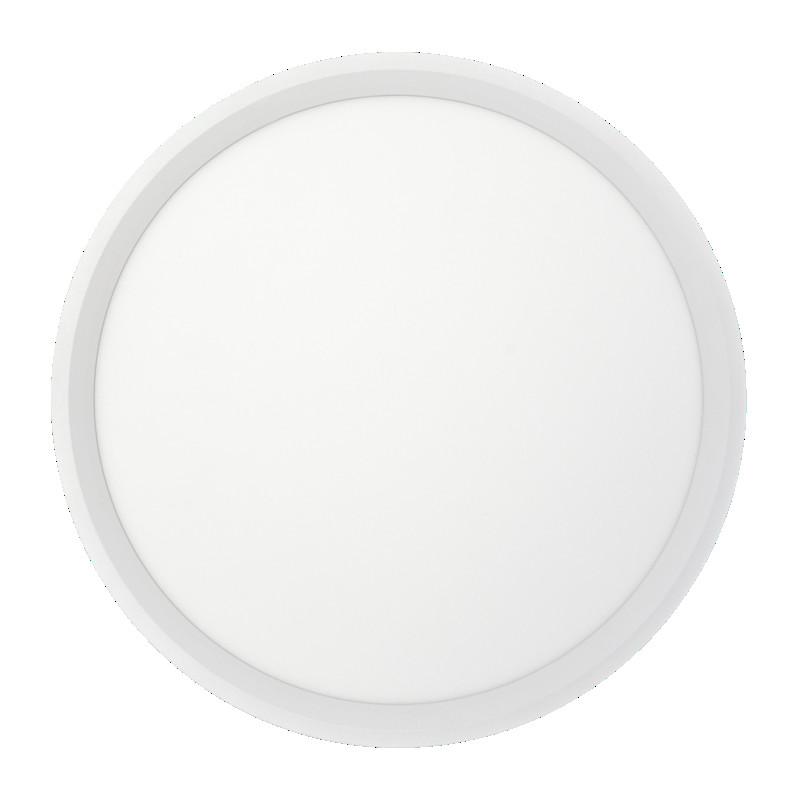

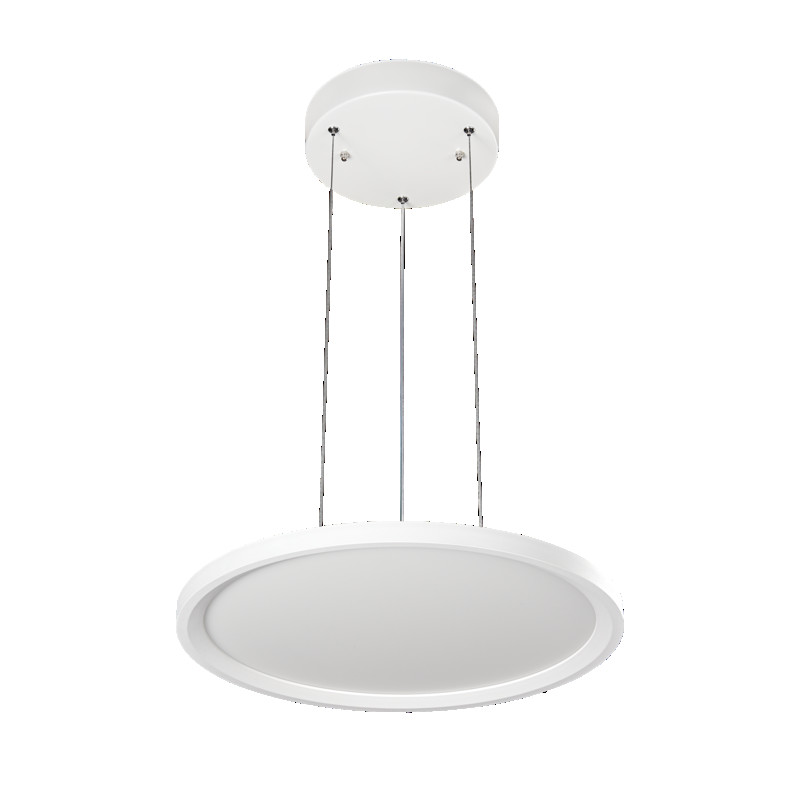

LED Pendant Panel R400 white 24W 840 dim Dali/push
EAN: 4044538068251
The advantages resulting from the very flat design qualify the LED Pendel-Panel to a versatile lighting.
High efficient SMD-LEDs are positioned around the light guide made of polycarbonate for side injection.
A special designed reflector foil directs the light by 100% to the front where an excellent light transmitting diffusor provides a very comfortable and glare-free lighting.
Material: aluminium white powder-coated/diffuser and light guide made of Polystyrol (non-yellowing)
Dimensions (ØxH): 400x20 mm
Cable suspensions (2 m): included
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L70 B50)
Canopy for housing the LED driver: included
LED driver included: dimmable Dali/push
Betriebsgerät: inklusive
Dimmung: dim Dali/dim push
Seilabhängung (2 m): inklusive
Seilstärke Einspeisungsseil (Øl): 2,5 mm
Seilstärke Seilabhängung (Øl): 1,5 mm
Baldachin: inklusive; zum Unterbringen des LED Betriebsgerätes
Material: Aluminium weiß pulverbeschichtet/Diffusorscheibe und Lightguide aus PMMA (vergilbungsfrei)
Abmessungen (ØxH): 400x20 mm
Farbwiedergabeindex Ra: 80; Farbabstand (McAdam): 3 SDCM
Lebensdauer: 50.000 h (L70 B50)
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes Protection class I Degree of protection IP20 Impact strength IK04 Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 45 - Material and colour
Material housing aluminium Colour housing white Surface of the housing painted Surface finish texture housing matt Material diffuser Polystyrol Diffuser surface opal - Product contents
With light source yes Including LED driver yes Cable suspension supplied with the product yes - Technical lighting specifications
Colour temperature [K] 4000 Colour of light neutral white LED efficiency [lm/W] 125 LED efficiency [system] [lm/W] 107 Total luminous flux [lm] 3000 Beam angle [°] 110 Colour consistency (MacAdam) [SDCM] 4 Colour rendering index Ra 80 Colour rendering index R9 10 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 992 Light distributor Diffuser L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 70 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 50 Colour controllable (RGB) no Total lumen setting adjustable Continuously variable Colour temperature adjustable no Constant light output (CLO) no Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight
Diameter [mm] 400 Height [mm] 20 Weight [g] 2120 Length of cable suspension [m] 2 Pendant thickness [Ø] (cable suspension) [mm] 1,5 Pendant thickness [Ø] (feeding rope) [mm] 2,5 Pendant length [cm] 0,1 - 200 - Other specifications
Type of luminaire pendant luminaire Suitable for general lighting yes Suitable for suspended mounting yes Suitable for light line configuration no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without - Electrical specifications
Lamp power [W] 24 Max. system power [W] 28 Nominal current of luminaire [mA] 1050 Rated voltage of luminaire [DC] [V] 23 Constant current [mA] 1050 Voltage type AC/DC Rated voltage of the LED driver [AC [V] 180 - 277 Rated voltage of the LED driver [DC] [V] 254 - 392 Lamp holder without Type of wiring Ending Wire cross section terminals 0.75-1.5 mm² Exchangeable LED driver yes Dimmable yes Type of dimming dim Dali/dim push Flicker free yes Rated current of the LED driver (at 230V AC) max. [A] 0,14 LED driver LED operating device current-controlled Power factor > 0,97
