LED Panel Backlight 62 UGR<19 white 38W DTW 1050mA
LED Panel Backlight Dim to Warm
SKU:
1580461045
EAN: 4044538067827
EAN: 4044538067827
Dimming from cold to warm that’s the innovation of the latest technology.
The luminaire is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.

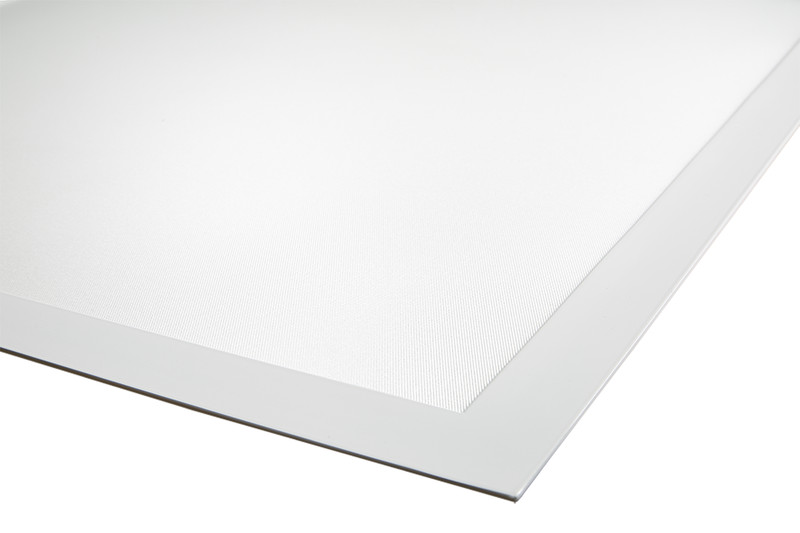

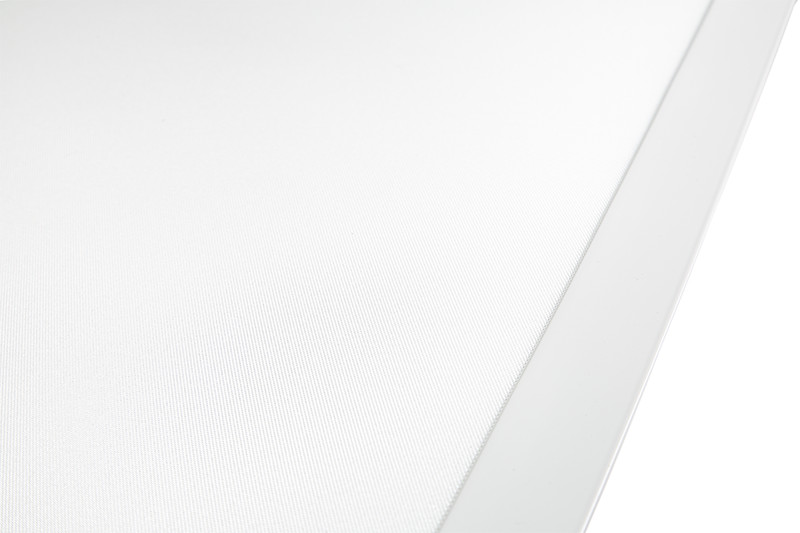

Material: aluminium white painted/Microprism diffuser and light guide made of PMMA (non-yellowing)
Dimensions (LxWxH): 620x620x37 mm
Colour rendering index Ra: 82
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver: not included
Dimming: Led driver dependent
Recommendation LED driver:
Part no. 8970100410 EL-40-1050 D dim C IP42, dimmable with trailing edge
Part no. 8970451070 EL-45-1050 dim Dali
Part no. 8980410010 EL-40 Uni 350-1050 dim 1-10V
Part no. 8980420350 EL-40 Uni 350-1050 dim Dali
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class III Degree of protection IP40 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' no Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 40 - Material and colour
Colour housing white Material aluminium painted white/acrylic mirco prisms panel - Other specifications
Type of luminaire prism luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation yes Suitable for wall mounting no Suitable for suspended mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Adjustable version no - Product contents
With light source yes Including LED driver no - Dimensions and weight
Length [mm] 620 Width [mm] 620 Height [mm] 37 Weight [g] 2038 Installation length (lay-in luminaire) [mm] 600 Installation width (lay-in luminaire) [mm] 600 Light portal opening [mm] 554 - Technical lighting specifications
Light cone Open beam/diffuse Colour temperature [K] 2000 - 3000 LED efficiency [lm/W] 97 Total luminous flux at 3000 K [lm] 3690 Total luminous flux at 2000 K [lm] 120 Beam angle [°] 90 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 82 Colour rendering index R9 7 Unified Glare Rating [UGR] 19 Anti-glare limiting [UGR] lengthwise 17,6 Anti-glare limiting [UGR] crosswise 18 Fit for monitor workplace acc. EN 12464-1 yes Luminance y ≥ 65° ≤3000 cd/m2 Peak luminous intensity [cd] 1750 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) no Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Electrical specifications
Lamp power [W] 38 Constant current [mA] 1050 Lamp holder without Type of wiring Ending Wire cross section jack plug-system Exchangeable LED driver no Dimmable yes Type of dimming Led driver dependent LED driver LED operating device current-controlled Electrical connection with connector system yes
