LED Panel Backlight 62 UGR19 white 38W SCCT 1050mA
EAN: 4044538067841
Switchable Color Temperature - SCCT.
Decide on your color temperature before installing the luminaire! Adjust it, by means of a switch, to the desired color temperature without further ado.

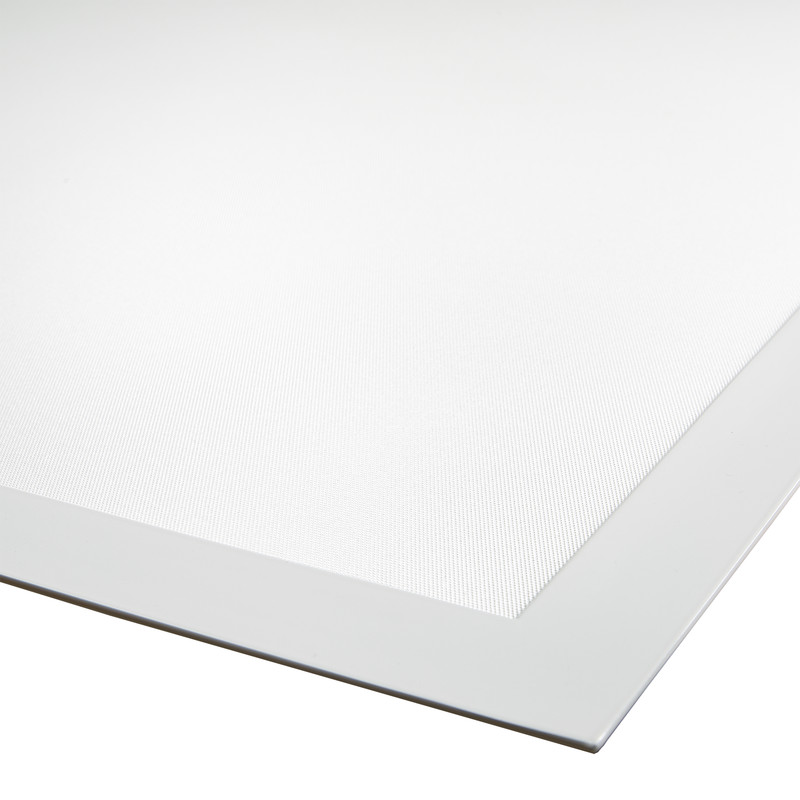

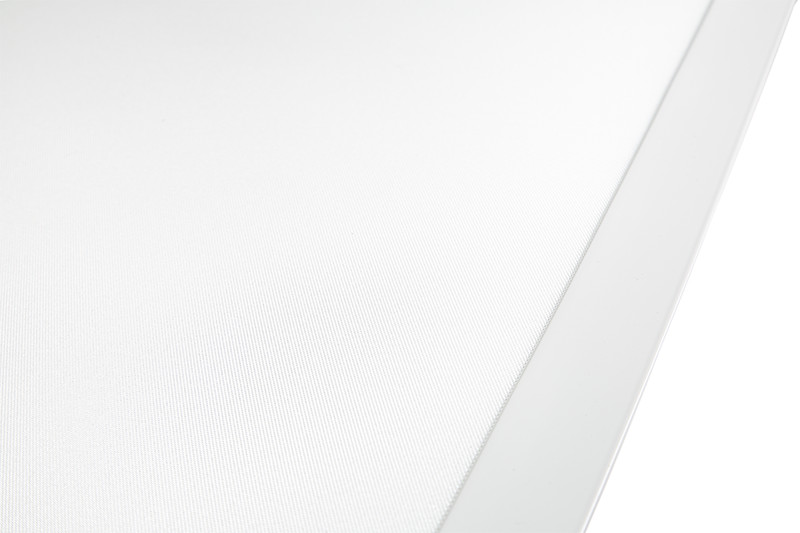

Even LED light distribution throughout the entire emitting surface.
Especially qualified for use in rooms with a glare limitation UGR≤19. The luminaire has a luminance of <3000cd/m² at y ≥ 65° according to EN-12464 and complies with the current standards for VDU workplaces.
Material: aluminium white painted/Microprism diffuser and light guide made of PMMA (non-yellowing)
Dimensions (LxWxH): 620x620x30 mm
Colour rendering index Ra: 82
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver: not included
Dimming: Led driver dependent
Recommendation LED driver:
Part no. 8970100410 EL-40-1050 D dim C IP42, dimmable with trailing edge
Part no. 8970421052 EL-42-1050 DS non dim, non dimmable
Part no. 8970451070 EL-45-1050 dim Dali
Part no. 8970441050 EL-44-1050 dim 1-10V
Part no. 8980410010 EL-40 Uni 350-1050 dim 1-10V
Part no. 8980420350 EL-40 Uni 350-1050 dim Dali
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class III Degree of protection IP40 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Luminance y ≥ 65° (C0/180) <2000 cd/m² Luminance y ≥ 65° (C90/270) <2500 cd/m² Installation in insulated ceilings, fire protection 'F with roof' no Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 25 - Material and colour
Colour housing white Material aluminium painted white/acrylic mirco prisms panel - Other specifications
Type of luminaire prism luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation yes Suitable for wall mounting no Suitable for suspended mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa yes IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Adjustable version no - Product contents
With light source yes Including LED driver no - Dimensions and weight
Length [mm] 620 Width [mm] 620 Height [mm] 30 Weight [g] 2000 Installation length (lay-in luminaire) [mm] 600 Installation width (lay-in luminaire) [mm] 600 Light portal opening [mm] 554 - Technical lighting specifications
Colour temperature 2 [K] 4000 Colour temperature 3 [K] 5700 Light cone Open beam/diffuse Colour temperature [K] 3000 LED efficiency [lm/W] 95 Total luminous flux at 3000 K [lm] 3300 Total luminous flux at 4000 K [lm] 3630 Total luminous flux at 5700 K [lm] 3560 Beam angle [°] 82 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 82 Colour rendering index R9 20 Unified Glare Rating [UGR] 19 Anti-glare limiting [UGR] lengthwise 18,2 Anti-glare limiting [UGR] crosswise 18,6 Fit for monitor workplace acc. EN 12464-1 yes Peak luminous intensity [cd] 1970 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Colour controllable (RGB) no Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Electrical specifications
Lamp power [W] 38 Constant current [mA] 1050 Lamp holder without Type of wiring Ending Wire cross section jack plug-system Exchangeable LED driver no Dimmable yes Type of dimming Led driver dependent LED driver LED operating device current-controlled Electrical connection with connector system yes
