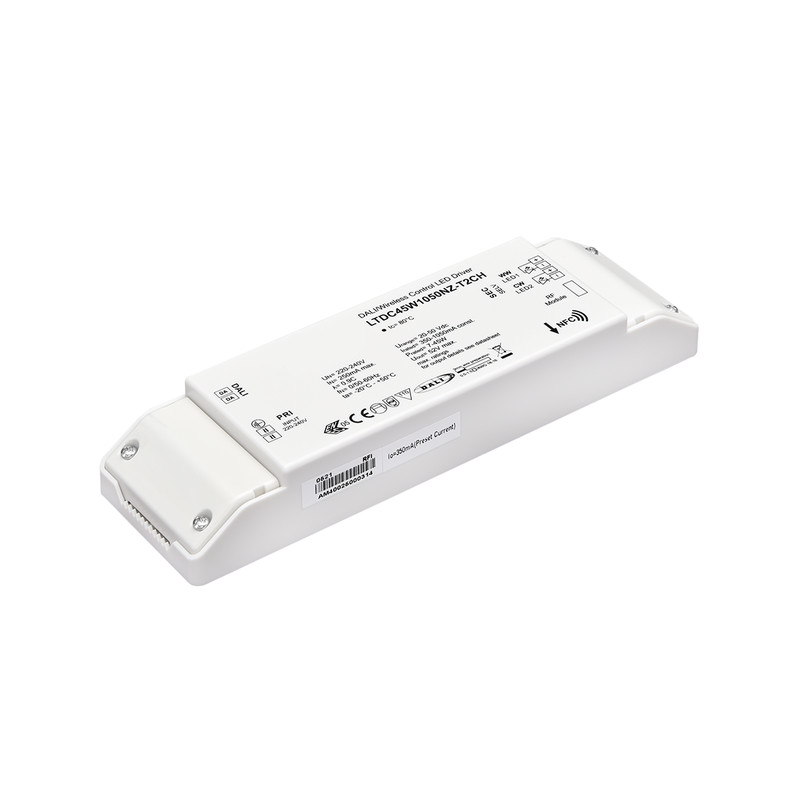

EL-45-Uni 350-1050 TUN-2CH dim Dali
LED Driver with constant current, dimmable
The dimmable LED driver with selectable constant current by App (NFC). for Tunable white luminaires.
Selectable constant currents: 350mA, 500mA, 600mA, 700mA, 900mA, 1050mA

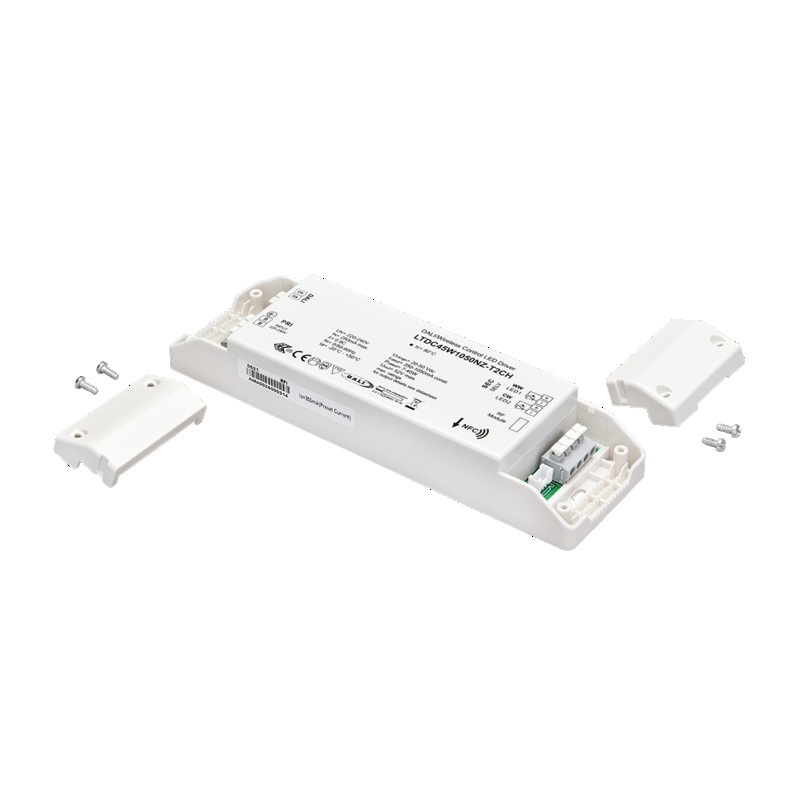

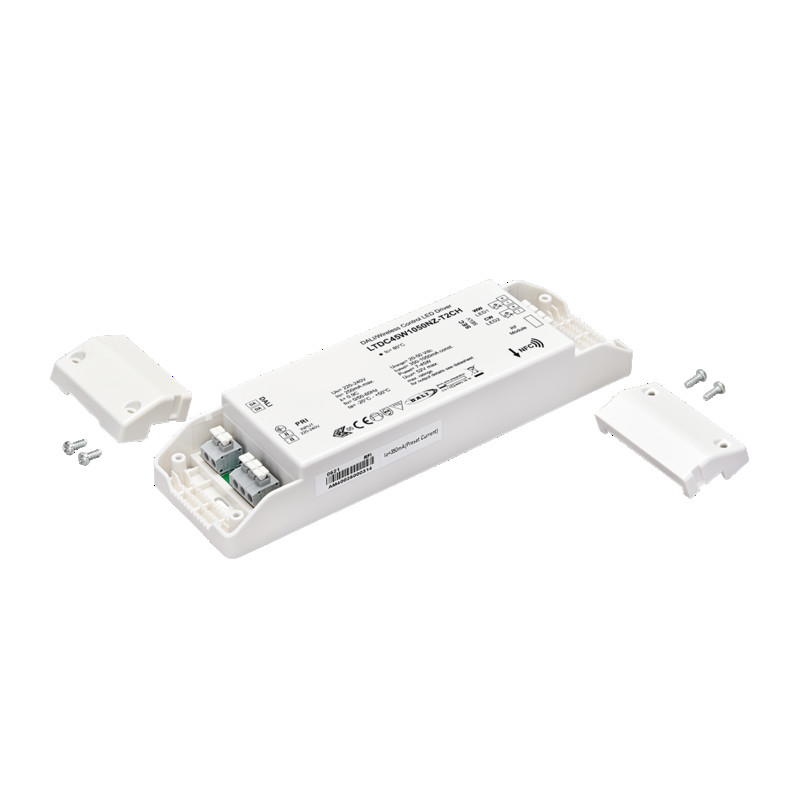

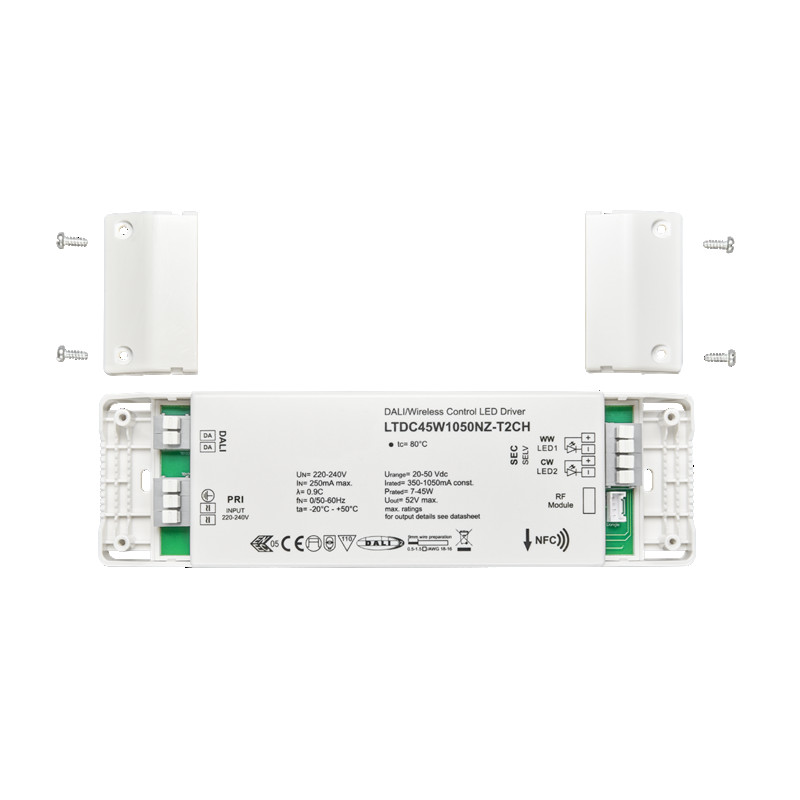

Connection primary: covered screwless terminals 0.5-1.5 mm²
Connection secondary: covered screwless terminals 0.5-1.5 mm²
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes SELV yes Protection class I Degree of protection IP20 Safety transformer yes Short-circuit protected yes Protection against short-circuit yes Temperature protection shutdown at [°C] 110 ENEC-Test mark ENEC 05 Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes * F-Test mark yes Note Connection during operation or secondary switching is not permitted - Temperature specifications
Ambient temperature [Ta [°C] -20 - 50 Case temperature [Tc] [°C] 80 - Dimensions and weight
Length [mm] 202 Width [mm] 58 Height [mm] 30 Weight [g] 240 - Material and colour
Material synthetic material Colour white - Other specifications
Model dynamic Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Independant installation yes Application for LED luminaire/LED modules only - Technical lighting specifications
Constant light output (CLO) no - Electrical specifications
Dali control DT8 Power [W] 7 - 45 Power at 350mA [W] 7 - 17,5 Power at 500mA [W] 10 - 25 Power at 600mA [W] 12 - 30 Power at 700mA [W] 14 - 35 Power at 900mA [W] 18 - 45 Power at 1050mA [W] 21 - 42 Output voltage at 350mA [V] 20 - 50 Output voltage at 500mA [V] 20 - 50 Output voltage at 600mA [V] 20 - 50 Output voltage at 700mA [V] 20 - 50 Output voltage at 900mA [V] 20 - 50 Output voltage at 1050mA [V] 20 - 40 Input frequency [Hz] 50 - 60 Power factor [at full load] 0,9 Networked Power consumption at Stand-by mode (Pno) [W] 0,3 Inrush current Cold start 30A (twidh=25μs at 50%Ipeak) at 230VAC Connection type primary covered screwless terminals Cable cross section primary [mm²] 0,5 - 1,5 Connection type secondary covered screwless terminals Cable cross section secondary [mm²] 0,5 - 1,5 Connection dimmer interface Push-Terminal Cable cross section dimmer interface [mm²] 0,5 - 1,5 Dimmable yes Type of dimming Dali 2-inferface or RF (optional) Flicker free yes Suitable for DC voltage (primary side) yes Suitable for constant voltage no Suitable for constant current yes Input voltage [AC] [V] 220 - 240 Output current [DC] [mA] 350 - 1050 Input current [at 230V AC] [A] 0,25 Efficiency/Power factor at full load [%] 80 Suitable for outdoor use no
