LED Panel R3ST uplight UGR<19 41W TUN dim Dali
EAN: 4044538070858

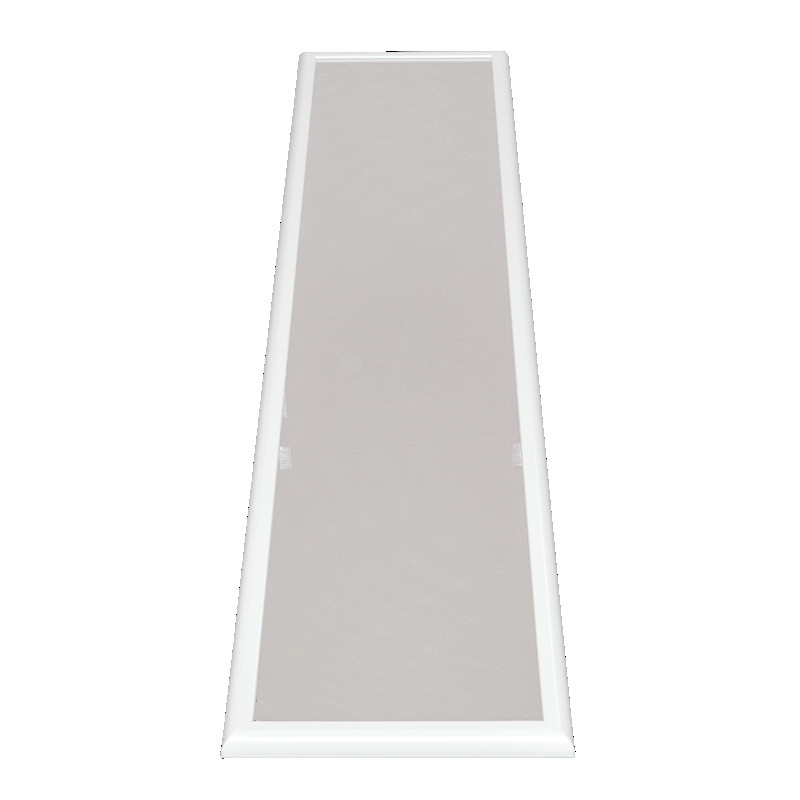

LED Panel R3ST up-light UGR≤19 Tunable White is a pendant luminaire with a clean, shapely design.
The luminaire is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.
Tunable White technology allows dynamic adjustment of illuminance and colour temperature. A second option is the setting of individual lighting scenes. With the appropriate control and programming, this technology supports the concept of Human Centric Lighting (HCL) with a simulation of the course of daylight that is as true to nature as possible.
LED driver included: dimmable Dali
Light distribution: 50% up; 50% down

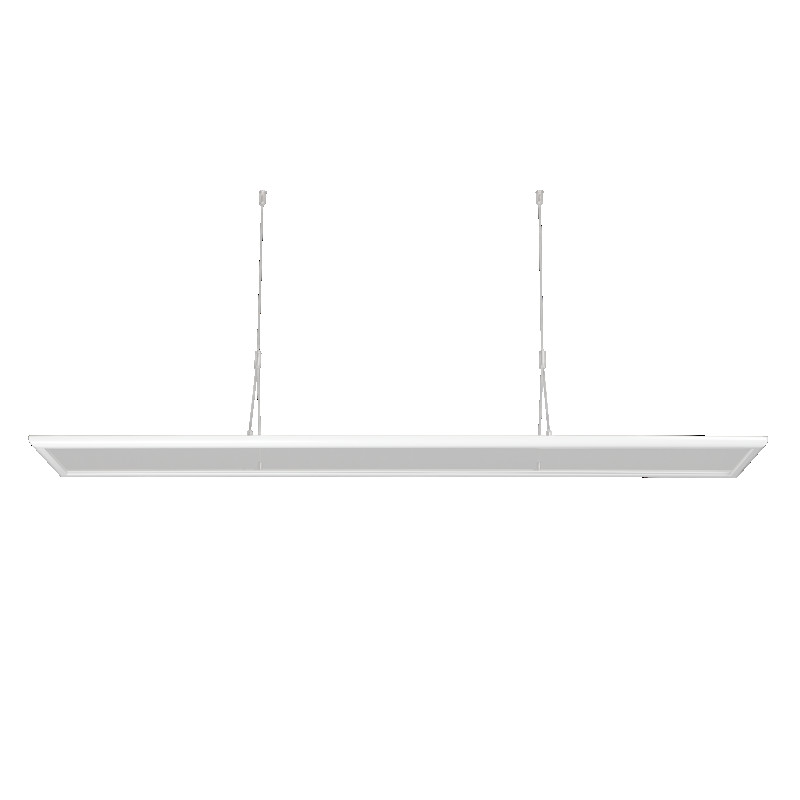

Y-cable supensions (2 m): included
Pendant thickness (Ø): 1.5 mm
Canopy for housing the LED driver: included

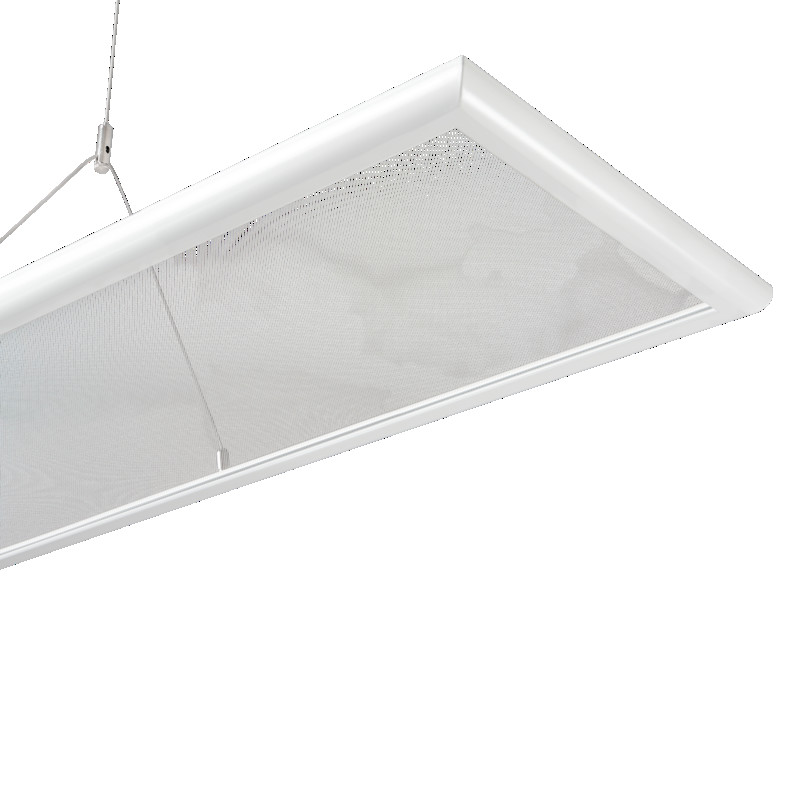

Lightguide transparent
Material: aluminium white painted/light guide transparent made of PMMA (non-yellowing)
Dimensions (LxWxH): 1495x295x20 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes F-Test mark yes MM-Test mark yes RoHS yes Protection class I Degree of protection IP40 Impact strength IK07 Short-circuit protected yes Protection against short-circuit yes ENEC-Test mark ENEC 05 Installation, electrical engineering expertise yes Only for indoor use yes - Temperature specifications
Ambient temperature [Ta] [°C] 0 - 50 - Material and colour
Material housing aluminium Colour housing white Surface of the housing painted Material diffuser PMMA Diffuser surface transparent Material lightguide PMMA - Product contents
With light source yes Including LED driver yes Cable suspension supplied with the product yes Canopy inclusive yes - Technical lighting specifications
Colour temperature [K] 2700 - 6500 LED efficiency [lm/W] 132 LED efficiency [system] [lm/W] 113 Total luminous flux [lm] 5200 - 5400 Total luminous flux up [lm] 2700 Total luminous flux down [lm] 2700 Beam angle down [°] 120 Beam angle up [°] 120 Colour consistency [MacAdam] [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 6 Unified Glare Rating [UGR] 19 Fit for monitor workplace acc. EN 12464-1 yes Luminance y ≥ 65° ≤3000 cd/m2 Peak luminous intensity [cd] 780 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 75000 L90B10 - life time at 25 °C [h] 25000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) [%] 70 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) [%] 50 Colour controllable (RGB) no Total lumen setting adjustable Continuously variable Colour temperature adjustable Continuously variable Constant light output (CLO) no Luminaire lighting surface transparent Light sharing symmetric Light outlet direct/indirect Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 1495 Width [mm] 295 Height [mm] 20 Weight [g] 4240 Length of cable suspension [m] 2 Pendant thickness [Ø] (cable suspension) [mm] 1,5 Pendant length [cm] 0,1 - 200 - Other specifications
Type of luminaire pendant luminaire Suitable for general lighting yes Suitable for suspended mounting yes Suitable for light line configuration no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without - Electrical specifications
Lamp power [W] 41 Max. system power [W] 48 Constant current [mA] 1050 Rated voltage of the LED driver [AC] [V] 220 - 240 Power factor [at full load] 0,97 Lamp holder without Type of wiring Ending Wire cross section terminals 0.75-1.5 mm² Exchangeable LED driver yes Dimmable yes Type of dimming Dali Flicker free yes Rated current of the LED driver (at 230V AC) max. [A] 0,22 LED driver LED operating device current-controlled Number of poles 4 Conductor cross section [mm²] 0,5
