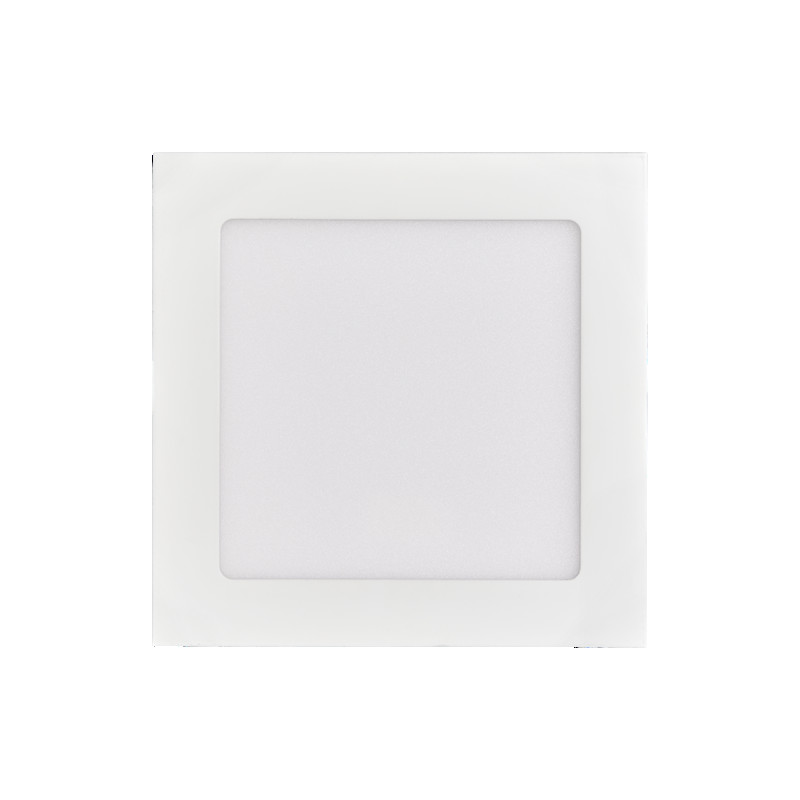

LED Panel Flat 130 Q white 11W DTW 350mA

LED Panel Flat 130 Q, Dim to Warm
SKU: 1571311045
EAN: 4044538073828
Article Choice

Dim to Warm - the lighting effect becomes warmer and warmer as the LEDs are dimmed down. Parallel to the brightness, the color temperature also reduces continuously.

Even LED light distribution throughout the entire emitting surface.

Material: aluminium/diffuser and light guide made of PMMA (non-yellowing)

Dimensions (LxWxH): 170x170x22 mm

Colour rendering index Ra: 80

Colour distance (MacAdam): 4 SDCM

Life time: 50.000 h (L80 B10)

LED driver: not included

Dimming: trailing edge

Recommendation LED driver:

Part no. 8990153500 EL-15-350 D dim C, dimmable with trailing edge

Betriebsgerät: nicht inklusive

Dimmung: über Phasenabschnitt

Material: Aluminium/Diffusorscheibe und Lightguide aus PMMA (vergilbungsfrei)

Abmessungen (LxBxH): 170x170x22 mm

Farbwiedergabeindex Ra: 80

Farbabstand (MacAdam): 4 SDCM

Lebensdauer: 50.000 h (L80 B10)

Betriebsgerätempfehlung:

Art.-Nr. 8990153500 EL-15-350 D dim C, dimmbar über Phasenabschnitt

weniger lesen
mehr lesen

Downloads

MontageanleitungMontageanleitung
EU-ProduktdatenblattEU-Produktdatenblatt
EnergieeffizienzlabelEnergieeffizienzlabel
ProduktdatenblattProduktdatenblatt

Technical Data

  • Protection specifications
    CE-Conformity yes
    RoHS yes
    LVD Standard EN 60598-1; EN 60598-2-2; EN 62471
    Protection class III
    Degree of protection IP20
    Impact strength IK00
    Thermal insulation mark yes
    Installation, electrical engineering expertise yes
    Only for indoor use yes
    Furniture installation, fire protection 'MM' yes
    Note ensure constant convection and do not cover by insulation material
  • Temperature specifications
    Ambient temperature [Ta] [°C] 0 - 25
  • Material and colour
    Material housing aluminium
    Colour housing white
    Surface of the housing painted
    Material diffuser PMMA
  • Product contents
    With light source yes
    Including LED driver no
  • Dimensions and weight
    Length [mm] 170
    Width [mm] 170
    Height [mm] 22
    Weight [g] 283
    Light outlet opening [lenght] [mm] 125
    Light outlet opening [width] [mm] 125
    Ceiling cut-out [ length] [mm] 150
    Ceiling cut-out [width] [mm] 150
    Built-in depth [mm] 25
  • Technical lighting specifications
    Colour temperature [K] 2000 - 3000
    Total luminous flux at 3000 K [lm] 1100
    Total luminous flux at 2000 K [lm] 60
    Beam angle [°] 120
    Colour consistency [MacAdam] [SDCM] 4
    Colour rendering index Ra 80
    Colour rendering index R9 8
    Peak luminous intensity [cd] 400
    L80B10 - life time at 25 °C [h] 50000
    L70B50 - life time at 25°C [h] 50000
    Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10
    Total lumen setting adjustable no
    Colour temperature adjustable Continuously variable
    Light source replaceable no
  • Other specifications
    Type of luminaire panel luminaire
    Suitable for general lighting yes
    Suitable for recessed wall installation yes
    Suitable for wall mounting yes
    Suitable for suspended mounting no
    Suitable for built-in mounting yes
    Suitable for ceiling mounting yes
    Suitable for surface mounting no
    Suitable for light line configuration no
    Operation by Bluetooth no
    Compatible with Apple HomeKit no
    Compatible with Google Assistant no
    Compatible with Amazon Alexa no
    IFTTT support available no
    Kind of disposal at the end of the life time specific collection points, please consider the local regulations
  • Electrical specifications
    Lamp power [W] 11
    Nominal current of luminaire [mA] 350
    Rated voltage of luminaire [DC] [V] 32
    Constant current [mA] 350
    Lamp holder without
    Type of wiring Ending
    Wire cross section CCV male plug (+ CCV female plug with open cable ends)
    Cable conductor quantity 2
    Exchangeable LED driver no
    Dimmable yes
    Type of dimming Led driver dependent
    Length of cable [cm] 40
    LED driver LED operating device current-controlled
    Conductor diameter [mm²] 0,33
