LED Panel Backlight 62S UGR19 white 30W TUN BT
EAN: 4044538074559
They guarantee the best lighting comfort with uniform illumination. Stable construction promise an excellent product.
The luminaire is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.
Tunable White technology enables dynamic adjustment of illuminance as well as color temperature. A second option is the setting of individual light scenes. With the appropriate control and programming, this technology supports the concept of Human Centric Lighting (HCL) with a simulation of the course of daylight that is as true to nature as possible.

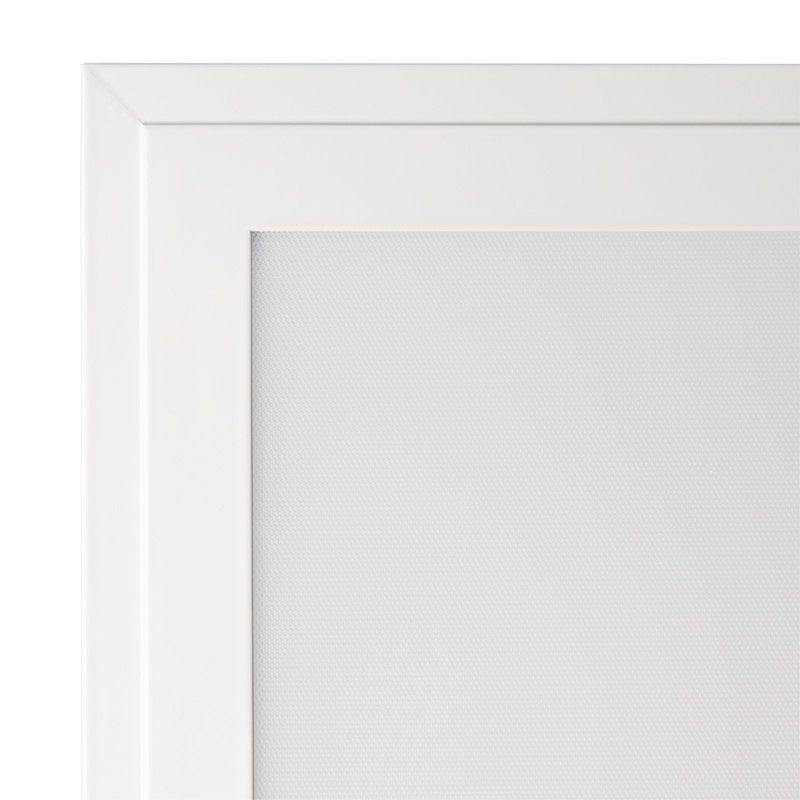

Material: aluminium white painted/Microprism diffuser made of PMMA (non-yellowing)

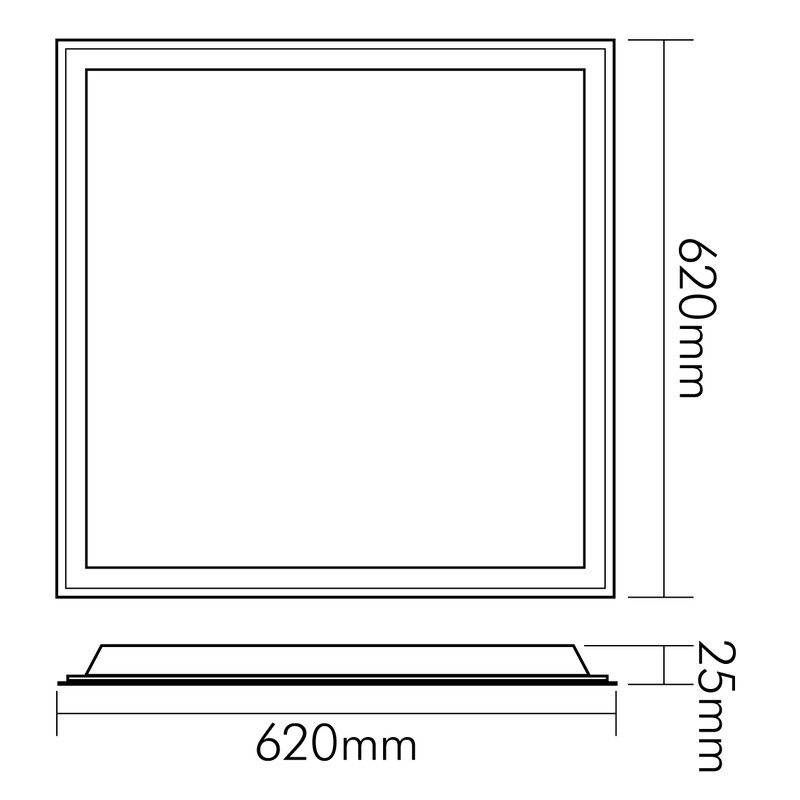

Dimensions (LxWxH): 620x620x30 mm
Ceiling cut-out (LxW) lay-in version: 602x602 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 60.000 h (L80 B10)
LED driver included: with Smartmatic 2.0
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes LVD Standard EN 60598-1:2015; EN 60598-2-2:2012; EN 62031:2020; EN 62471:2008; IEC TR 62778:201; EN 62493:2015 SELV yes Protection class II Safety class of LED driver II Degree of protection IP40 Impact strength IK04 Safety transformer yes Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' no Note ensure constant convection and do not cover by insulation material - Temperature specifications
Ambient temperature [Ta [°C] 0 - 45 - Material and colour
Colour housing white Material aluminium painted white/acrylic mirco prisms panel - Other specifications
Type of luminaire prism luminaire Mounting method other Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for suspended mounting no Suitable for light line configuration no Operation by Bluetooth yes Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Independant installation yes Adjustable version no - Product contents
With light source yes Including LED driver yes - Dimensions and weight
Length [mm] 620 Width [mm] 620 Height [mm] 25 Weight [g] 1980 Light outlet opening [lenght] [mm] 555 Light outlet opening [width] [mm] 555 Installation length (lay-in luminaire) [mm] 602 Installation width (lay-in luminaire) [mm] 602 - Technical lighting specifications
Light cone Open beam/diffuse Colour temperature [K] 3000 - 6500 LED efficiency [lm/W] 138 LED efficiency [system] [lm/W] 112 Total luminous flux at 3000 K [lm] 3950 Total luminous flux at 4000 K [lm] 4100 Total luminous flux at 6500 K [lm] 4150 Useful luminous flux [Φuse] at 3000 K [lm] 3950 Useful luminous flux [Φuse] at 4000 K [lm] 4000 Useful luminous flux [Φuse] at 6500 K [lm] 4100 Beam angle [°] 85 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 12 Unified Glare Rating [UGR] 19 Anti-glare limiting [UGR] lengthwise 18,5 Anti-glare limiting [UGR] crosswise 18,5 Fit for monitor workplace acc. EN 12464-1 yes Luminance y ≥ 65° ≤3000 cd/m2 Peak luminous intensity [cd] 1954 Light distributor Diffuser L80B10 - life time at 25 °C [h] 60000 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 50 Colour controllable (RGB) no Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Electrical specifications
Lamp power [W] 30 Max. system power [W] 37 Nominal current of luminaire [mA] 900 Rated voltage of luminaire [DC] [V] 34 Rated voltage of the LED driver [AC [V] 100 - 240 Input frequency [Hz] 50 - 60 Power factor [at full load] 0,9 Lamp holder without Type of wiring Through wiring included Cable cross section [luminaire] [mm²] 0,35 Cable conductor quantity [luminaire] 3 Exchangeable LED driver yes Dimmable yes Type of dimming Smartmatic Flicker free yes Rated current of the LED driver (at 230V AC) max. [A] 0,175 LED driver LED operating device current-controlled Electrical connection with connector system no Length [LED driver] [mm] 140 Wide [LED driver] [mm] 45 Height [LED driver] [mm] 30 Type of connection [luminaire] connecting cable with plug-system
