LED TP-luminaire 1,2m 40W SCCT 120° multi power
.ldt)
.ldt)
.ldt)
.ldt)
EAN: 4044538074894
Our dust-proof and splash-proof damp-proof luminaire (IP65) convinces not only with the latest LED technology, but also with its outstanding flexibility. The multifunctionality, Multi-Power and Multi-Colour.
Multi-Power: Luminous flux adjustable in two steps.
Multi-Colour: Light color temperature adjustable in 4000K and 5700K.
Symmetrical light distribution and homogeneous illumination thanks to the internal prismatic diffuser.

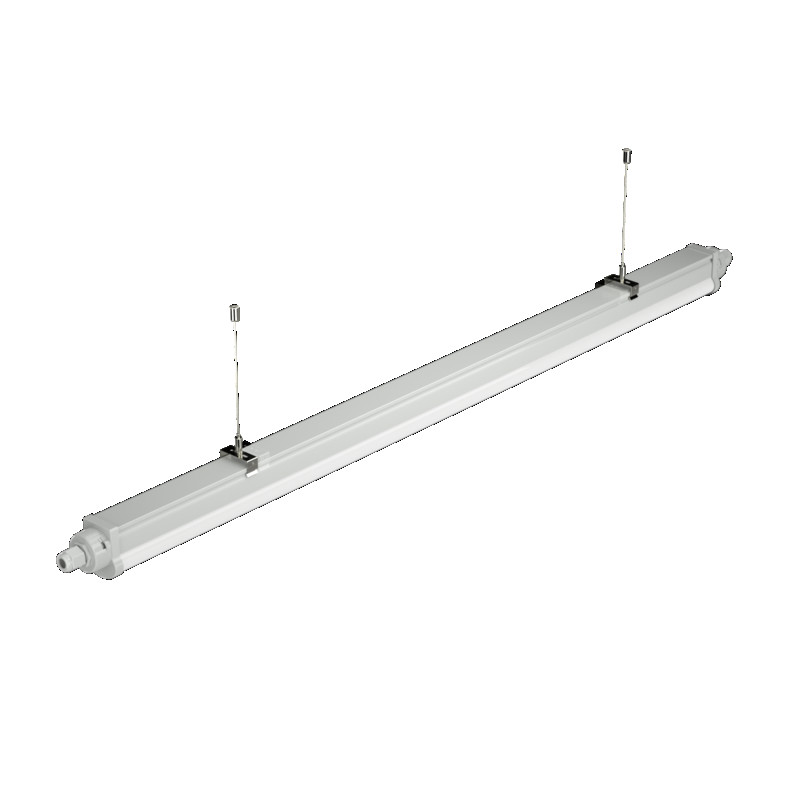

Slim housing design made of plastic (polycarbonate). High flexibility guaranteed by sliding mounting brackets made of stainless steel, which are included.

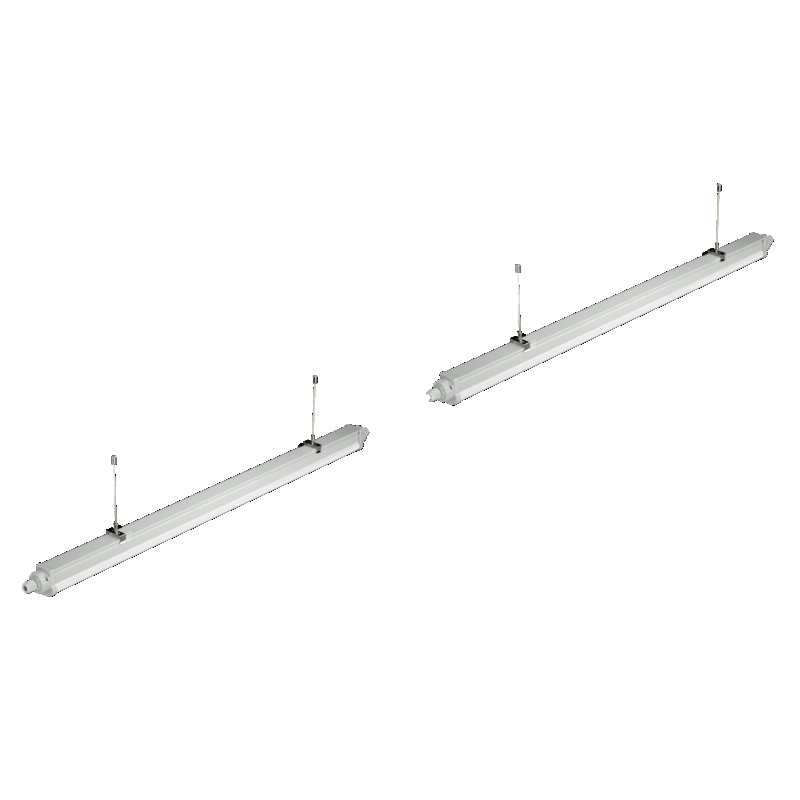

With integrated through-wiring, stringing together of additional luminaires is possible. Control gear is integrated. Lifetime up to 50.000h. Ideally suited for indoor and covered outdoor applications.
Dimension (LxWxH): 1270x60x70 mm
Material: PC (polycarbonate)
Color distance (MacAdam): 3 SDCM
Color rendering index Ra: 80
Lifetime: 50.000 h (L80 B10)
Material: PC (Polycarbonat)
Abmessung (LxBxH): 1270x60x70 mm
Farbwiedergabeindex Ra: 80
Farbabstand (McAdam): 3 SDCM
Lebensdauer: 50.000 h (L80 B10)
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta] [°C] -20 - 45 - Material and colour
Material housing PC and ABS Colour housing grey Housing colour (RAL) 7035 Material diffuser PC Diffuser surface opal - Product contents
With light source yes - Dimensions and weight
Length [mm] 1270 Width [mm] 60 Height [mm] 70 Weight [g] 630 - Technical lighting specifications
LED efficiency [system] [lm/W] 120 Light cone Extreme wide beam >80° Suitable for number of light sources 1 Colour temperature 2 [K] 5700 Colour temperature [K] 4000 Total luminous flux [lm] 4800 Total luminous flux 2 [lm] 2400 Beam angle [°] 120 Colour consistency [MacAdam] [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 15 Light distributor without L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 60000 Flicker Metric [Pst LM] 0,005 Total lumen setting adjustable Positions Colour temperature adjustable Positions Constant light output (CLO) no Light source replaceable no Light sharing symmetric Light outlet direct Lamp type SMD-LED - Other specifications
Operation by Bluetooth no BEG funding yes Type of luminaire industrial light Suitable for suspended mounting yes Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without - Protection specifications
Saltwater resistant yes CE-Conformity yes RoHS yes Protection class I Degree of protection IP65 Impact strength IK09 Ball-prrof no Short-circuit protected yes Protection against overheating yes Temperature protection shutdown at [°C] 110 Photobiological safety according to EN 62471 RG0 Filament test according to IEC 60695-2-10 [°C] 650 ENEC-Test mark ENEC 05 With protective cover yes Ammonia resistant no Sulphur resistant no Luminaire with limited surface temperature, sign 'D“ yes Installation, electrical engineering expertise yes Fire resistance 'D' yes - Electrical specifications
Lamp power [W] 40 Lamp power 2 [W] 20 Voltage type AC Input frequency [Hz] 50 - 60 Power factor [at full load] 0,9 Quantity on MCB B16 (max.) 36 Quantity on MCB C16 (max.) 36 Total harmonic distortion 0,2 Lamp holder without Type of wiring Suitable for through wiring Cable conductor quantity primary 3 Exchangeable LED driver no Dimmable no Flicker free yes Driver integrated yes Input voltage [AC] [V] 220 - 240 Number of poles 3
