Interface Smartmatic 2.0 to Dali/0-10V/1-10V BT

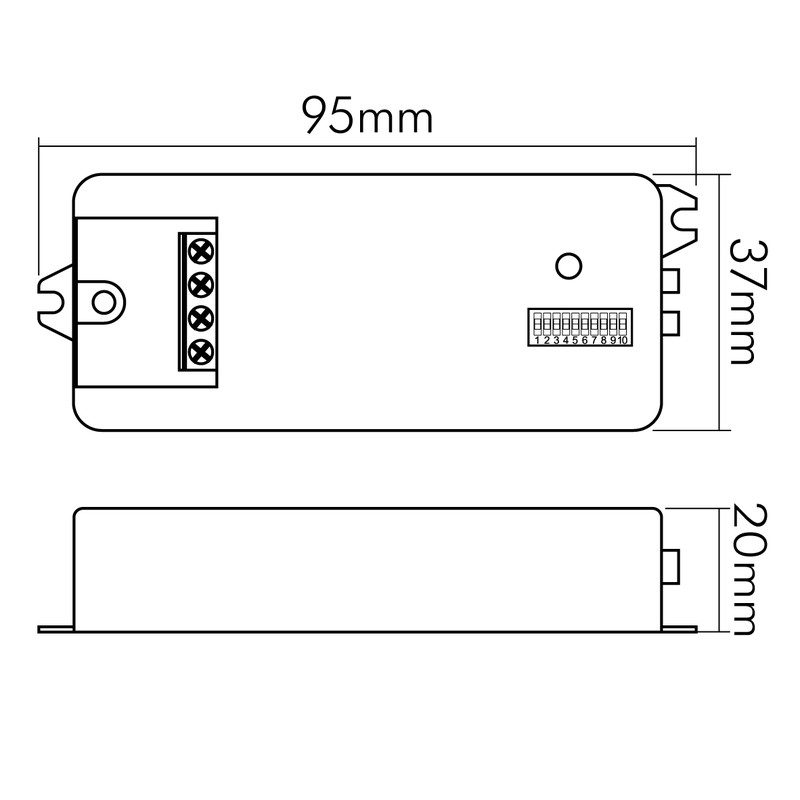

Maßzeichnung
Produktbild Ansicht links

SKU: 9109011025
EAN: 4044538074849

The BT interface converts Bluetooth signals into Dali/0-10V/1-10V control signals and thus enables the integration of operating devices with Dali/1-10V control voltage into the Bluetooth mesh. The integrated circuit allows the power supply of the LEDs to be switched on and off.

Dimensions (LxWxH): 95x37x20 mm

Dali control: DT6

Dali-PS: 50 mA

weniger lesen

Downloads

	Produktdatenblatt		Download
	Montageanleitung		Download
	Ausschreibungstext neutral		Download
	Ausschreibungstext nobilé		Download

Technical Data

Protection specifications

CE-Conformity	yes
RoHS	yes
EMC Standard	EN 55015; EN 61000-3-2; EN 61000-3-3; EN 61547
RED Standard	ETSI EN 300 328 V2.2.2; ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-17 V3.2.4; EN 62368-1; EN 62311
Protection class	II
Degree of protection	IP20
Installation, electrical engineering expertise	yes
Only for indoor use	yes

Temperature specifications

Ambient temperature [Ta [°C]	-20 - 50
Case temperature [Tc] [°C]	75
Operating humidity (RH) [%]	8 - 80

Material and colour

Material housing	synthetic material
Colour housing	white

Dimensions and weight

Length [mm]	95
Width [mm]	37
Height [mm]	20
Weight [g]	56

Other specifications

Kind of disposal at the end of the life time	specific collection points, please consider the local regulations
APP	Smartmatic 2.0

Electrical specifications

Dali control	DT6
Dali-Ps [mA]	50
Connection type primary	covered screw terminals
Radio frequency [GHz]	2,4
Input voltage [AC] [V]	110 - 240
Power supply	Mains voltage
Output current [DC] [mA]	0,02
Input current [A]	0,015
For operation with (AC/DC)	no
Frequency band	2.4GHz
Transmission protocol	Bluetooth (Mesh)
Transmission power [dBm]	10
Supported operating systems (OS)	Android/iOS
