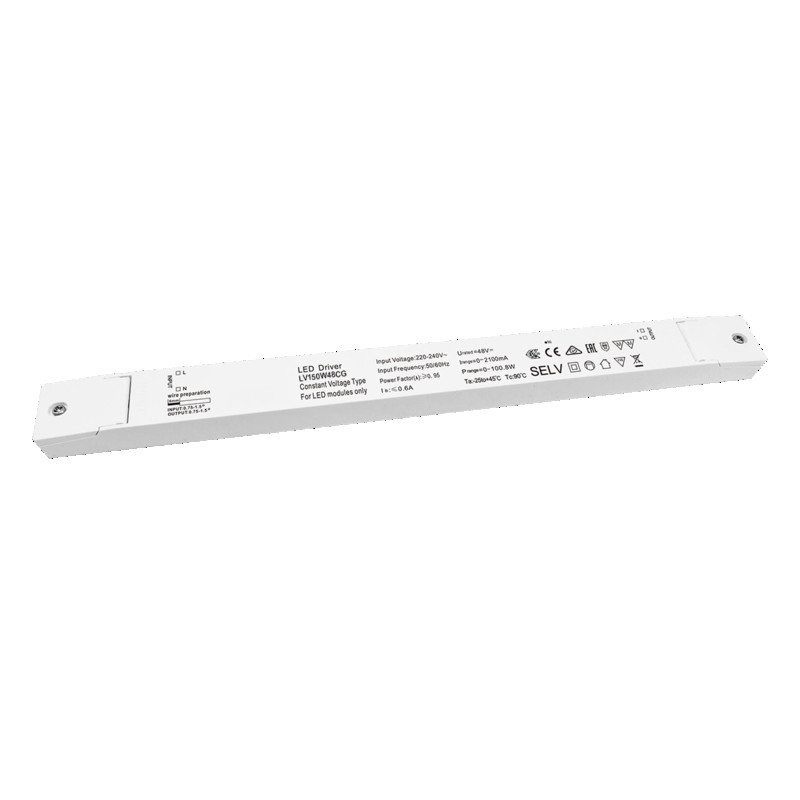

EL-150-48V
LED Driver with 48V constant voltage
SKU:
8980301548
EAN: 4044538075785
EAN: 4044538075785
LED control gear for indoor use and furniture installation.
Connection type primary: covered screw terminals for connection cable 0.5 - 1.5 mm².
Connection type secondary: covered screw terminals for connection cable 0.5 - 1.5 mm²
weniger lesen
Technical Data
-
Protection specifications
Surge protection yes Surge voltage strength [V] 2000 CE-Conformity yes RoHS yes SELV yes Protection class II Degree of protection IP20 Safety transformer yes Short-circuit protected yes Protection against overheating yes Temperature protection shutdown at [°C] 110 Restart after short circuit is removed yes ENEC-Test mark ENEC 25 Installation, electrical engineering expertise yes Only for indoor use yes Suitable for outdoor use no Furniture installation, fire protection 'MM' yes - Temperature specifications
Ambient temperature [Ta] [°C] 25 - 45 Case temperature [Tc] [°C] 90 - Material and colour
Material housing synthetic material Colour housing white - Dimensions and weight

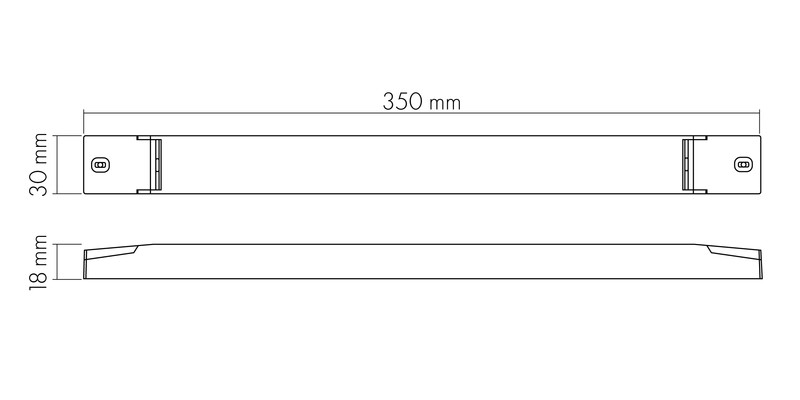

Length [mm] 350 Width [mm] 30 Height [mm] 18 Weight [g] 281 - Other specifications
Operation by Bluetooth no Compatible with Casambi no Model static Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Independant installation yes Application for LED luminaire/LED modules only Storage temperature range [°C] 40 - 85 - Technical lighting specifications
Nominal lifetime [h] 55000 Constant light output (CLO) no - Electrical specifications
Power [W] 0 - 150 Input frequency [Hz] 50 - 60 Power factor [at full load] 0,95 twidth [at 50% Ipeak] [µs] 185 Quantity on MCB B16 (max.) 8 Quantity on MCB C16 (max.) 13 Leakage current [mA] 0,25 Connection type primary covered screw terminal for cables 0.5 – 1.5 mm² Connection type secondary covered screw terminal for cables 0.5 – 1.5 mm² Dimmable no Suitable for DC voltage (primary side) yes Suitable for constant voltage yes Suitable for constant current no Input voltage [AC] [V] 220 - 240 Output voltage [DC] [V] 48 Input voltage [DC] [V] 175 - 280 Output current [DC] [mA] 3100 Input current [cold start at 230V AC] [A] 60 Input current [A] 0,9 Efficiency/Power factor at full load [%] 92
