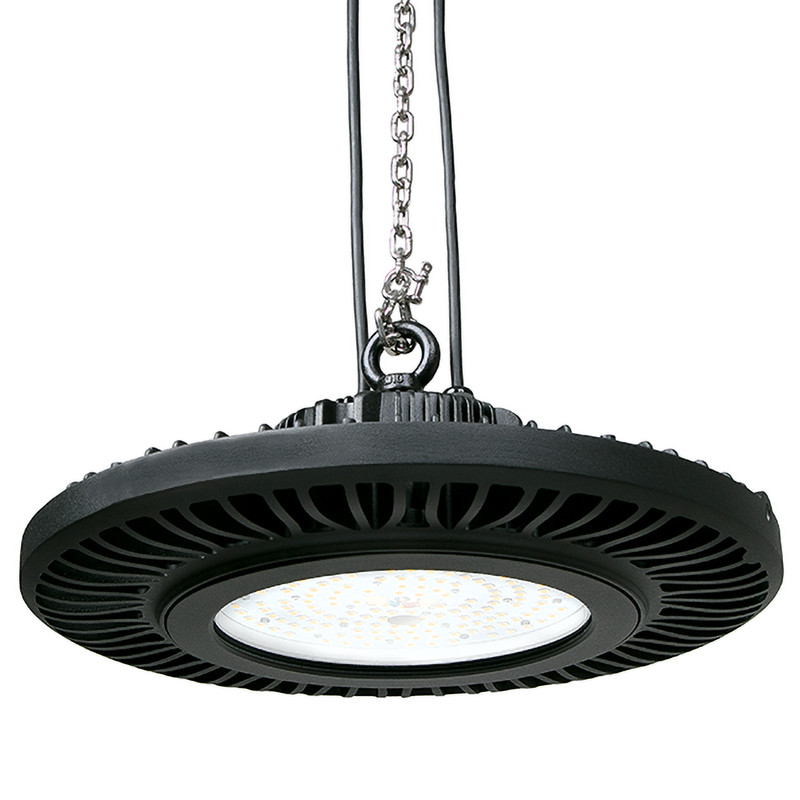

LED High Bay 46

Round LED High Bay for suspended mounting, SMD-LED
Article Choice

The main requirements to industrial and hall lighting are long lifetime, functionality and robustness.

The LED High Bay combines these requirements with perfect brightness and high luminous flux. All these it possible to create first-class light solutions for your projects.

The LED High Bay with high protection class IP65 an impact strength of IK10 is ideally suitable for rough operation conditions, too.The spotlight is also resistant to sulphur and ammonia.

This luminaire is especially designed for the illumination of fruit and vegetable. Fresh food requires highest demands on natural presentation and gentle lighting. The food quality must not be affected in any way. The freshness should be accentuated and the consumers attracted and encouraged to buy.

Colour rendering index Ra 80

Colour distance (MacAdam): 3 SDCM

Life time: 50.000 h (L80 B10)

LED driver integrated: dimmable 1-10V

Mounting: 1-point suspension by link chain at centrally arranged ring eyelet

Please note: link chain for suspension is not included

Material: aluminium powder coated

Protection cover: tempered clear glass

Dimensions (ØxH): 248x155 mm
