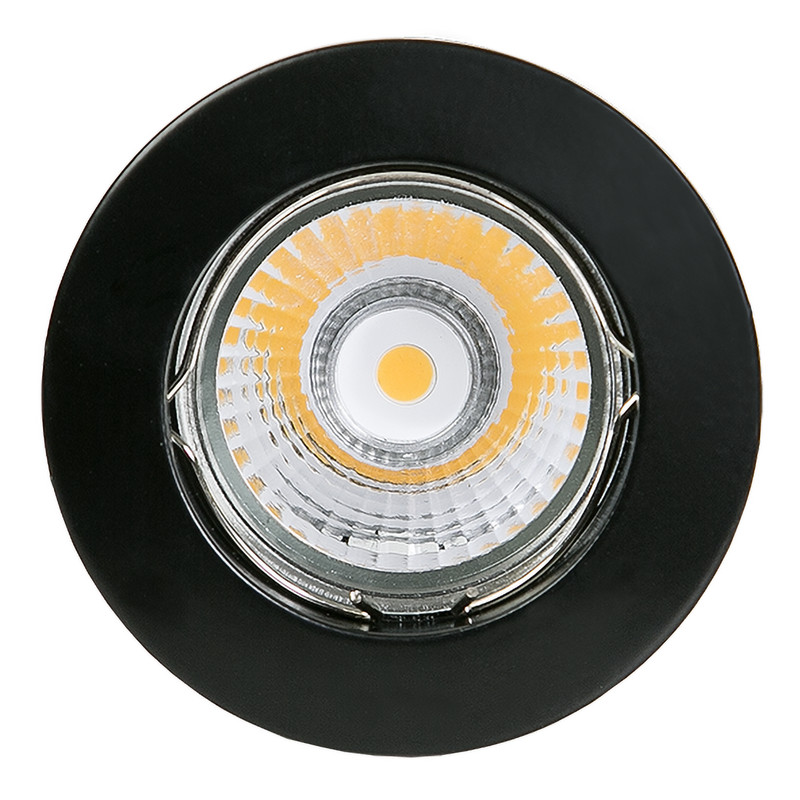

N 5030 black

Recessed Downlight with snap ring, fixed
SKU: 1850301800
EAN: 4044538004518
Article Choice

For use in general lighting.

The N 5030 series can also be equipped with:

GU10 LED 6W SCCT

LED Module D50 Glass reflector BIO-Spectrum

LED Module D50 with lense

COB LED Module for N 5800

Material: die-cast aluminium

Surface: painted or galvanized

Suitable for ceiling cut-out of: 65 mm

weniger lesen
mehr lesen

Downloads

MontageanleitungMontageanleitung
ProduktdatenblattProduktdatenblatt

Technical Data

  • Protection specifications
    Covering of the luminaire with thermally insulating material possible no
    CE-Conformity yes
    RoHS yes
    Degree of protection IP20
    Impact strength IK00
    Thermal insulation mark yes
    Installation, electrical engineering expertise yes
    Distance to objects [m] 0,5
    Only for indoor use yes
    Furniture installation, fire protection 'MM' only applicable with LED light source
    Installation in insulated ceilings, fire protection 'F with roof' no
    Installation into any material with normal flammability not applicable with a halogen lamp
    Note ensure constant convection and do not cover by insulation material
  • Temperature specifications
    Ambient temperature [Ta] [°C] 0 - 25
  • Product contents
    With light source no
    Including LED driver no
  • Dimensions and weight
    Diameter [mm] 79
    Height [mm] 25
    Weight [g] 55
    Ceiling cut-out [diameter] [mm] 65
    Built-in depth [mm] 60
  • Material and colour
    Material die-cast aluminium
    Colour black
    Surface finishing painted
  • Other specifications
    Adjustability Not adjustable
    Mounting method recessed-mounted
    Suitable for general lighting yes
    Suitable for recessed wall installation no
    Suitable for wall mounting no
    Kind of disposal at the end of the life time specific collection points, please consider the local regulations
    Reflector without
    Suitable for lighting accessories no
  • Electrical specifications
    Lamp power [W] 50
    Lamp holder without
    Exchangeable LED driver yes
    Through-wiring possible no
    Electrical connection with connector system no
  • Technical lighting specifications
    Fit for monitor workplace acc. EN 12464-1 no
    Light distributor without
    Colour controllable (RGB) no
    Light outlet direct
    Lamp type other
    Suitable for number of lamps 1
