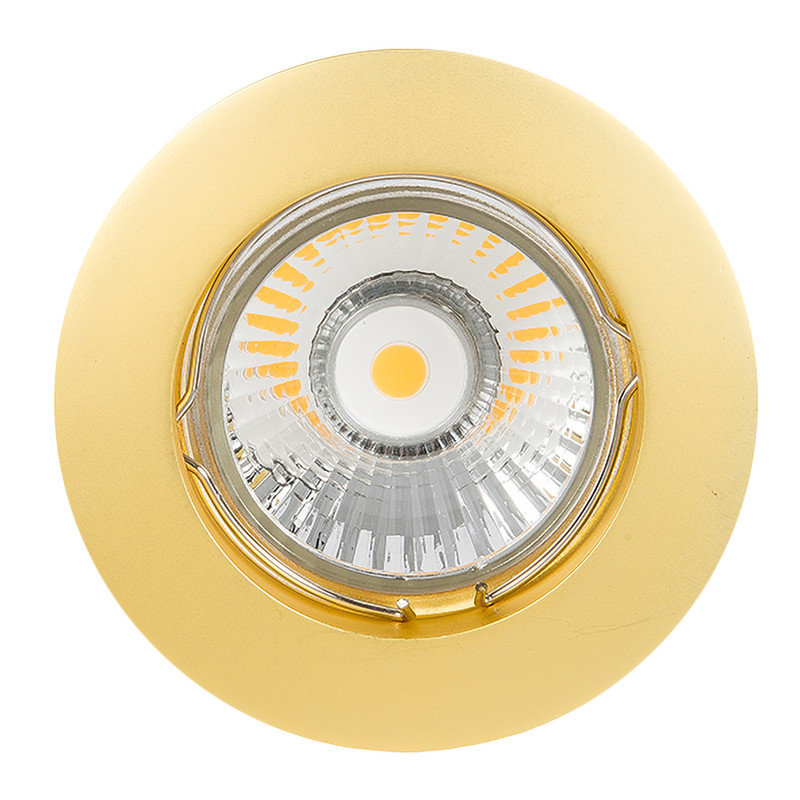

N 5030 matt gold
Recessed Downlight with snap ring, fixed
Base price
Product SKU: 1850308000
EAN: 4044538004532
Description
For use in general lighting. Suitable for ceiling cut-out of 65 mm.
Material: die-cast aluminium; Surface: painted or galvanized
Lamp holder and cable (30 cm) approved by VDE, 180° C
The N 5030 series can also be equipped with:
COB LED Module for N 5800
LED Module D50 with lense
Technical Data
Electrical connection with connector system
No
Through-wiring possible
No

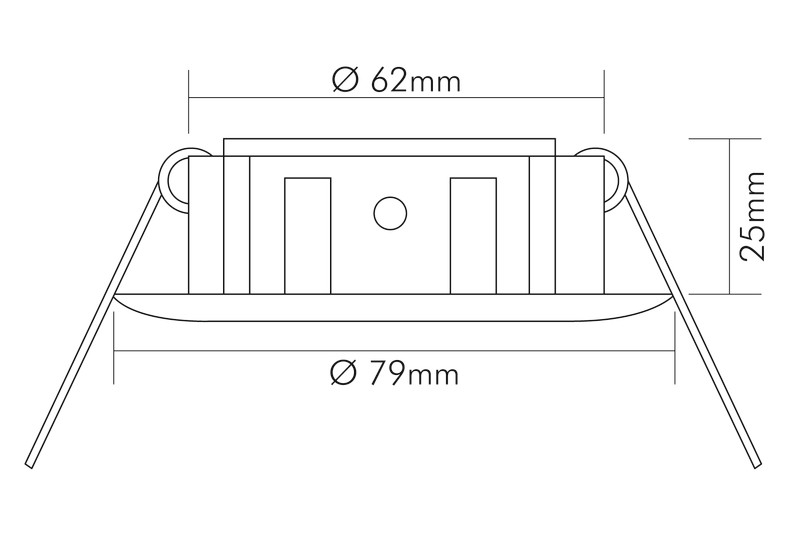

Diameter [mm]
79
Height [mm]
25
Type of transformer
electronic transformer
Built-in depth [mm]
60
Built-in diameter [mm]
65
Suitable for wall mounting
No
Light sharing
symmetric
Note
ensure constant convection and do not cover by insulation material
Suitable for general lighting
Yes
Suitable for recessed wall installation
No
With light source
No
Including LED driver
No
Delivery including
lamp holder and cable (30 cm) VDE approved, 180°
Temperature Range ta [°C]
0 - 25
Mounting method
recessed-mounted
Reflector
without
Suitable for lighting accessories
No
Kind of disposal at the end of the life time
specific collection points, please consider the local regulations
Voltage type
AC/DC
Lamp power [W]
50
Dimmable
Yes
Nominal voltage [V]
11,8
Distance to objects [m]
0,5
RoHS
Yes
Connection type primary side
free, stripped cable ends
Connection type secondary side
lamp holder GX5.3
Installation must be done by an authorized expert (e.g. electrician) in compliance with existing standards and local code
Yes
CE-Conformity
Yes
Installation into any material with normal flammability
not applicable with a halogen lamp
Installation in insulated ceilings, fire protection 'F with roof'
No
Furniture installation, fire protection 'MM'
only applicable with LED light source
Impact strength
without
Colour
matt gold
Surface finishing
galvanized
Material
die-cast aluminium
Lamp holder
GX5.3
Lamp type
low-voltage halogen lamp
Energy efficiency class
A++ - E
Suitable for number of lamps
1
Fit for monitor workplace acc. EN 12464-1
No
Colour controllable (RGB)
No
Light outlet
direct
Colour temperature controllable
No
Degree of protection
IP20
Only for indoor use
Yes
Protection class
III
Weight [g]
75
Available Accessories
LED Module D50 with optics 6,3W warm white 24°
LED Module with COB LEDs – ideal for substituting lamps with 51 mm Ø
LED Module D50 with optics 6,3W warm white 38°
LED Module with COB LEDs – ideal for substituting lamps with 51 mm Ø
LED Module D50 with optics 6,3W neutral white 24°
LED Module with COB LEDs – ideal for substituting lamps with 51 mm Ø
LED Module D50 with optics 6,3W neutral white 38°
LED Module with COB LEDs – ideal for substituting lamps with 51 mm Ø
