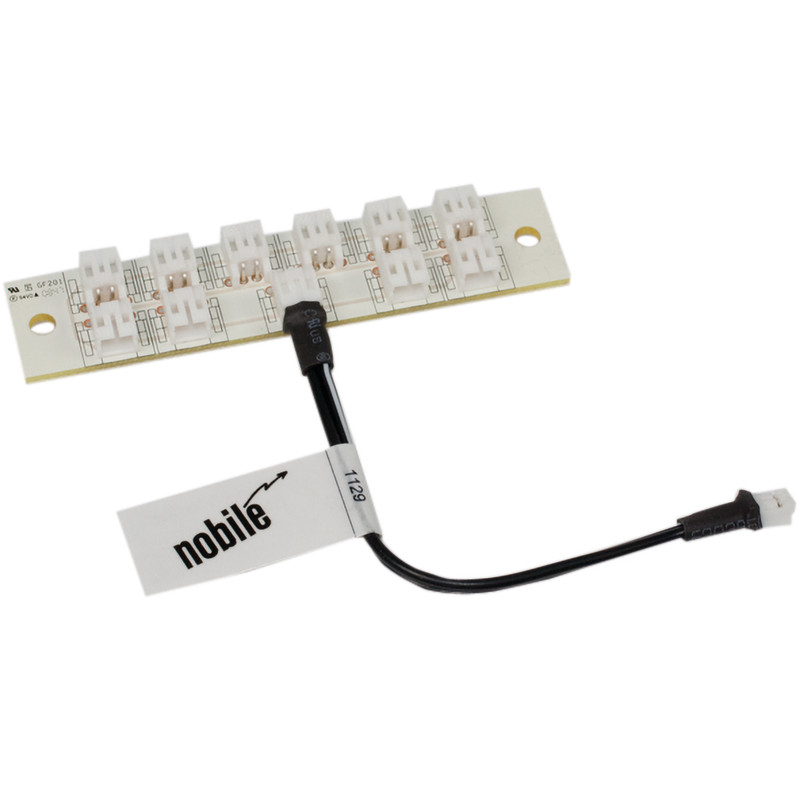

LED Distributor 2-pole 10-way
Plug-system, 2-pole
SKU:
8099101001
EAN: 4044538022161
EAN: 4044538022161
Reverse polarity protected and lockable plug-system for easy installation without any tool.
Guaranties tight, durable circuits.
weniger lesen
Technical Data
-
Product contents
Accessory yes Spare part no - Dimensions and weight

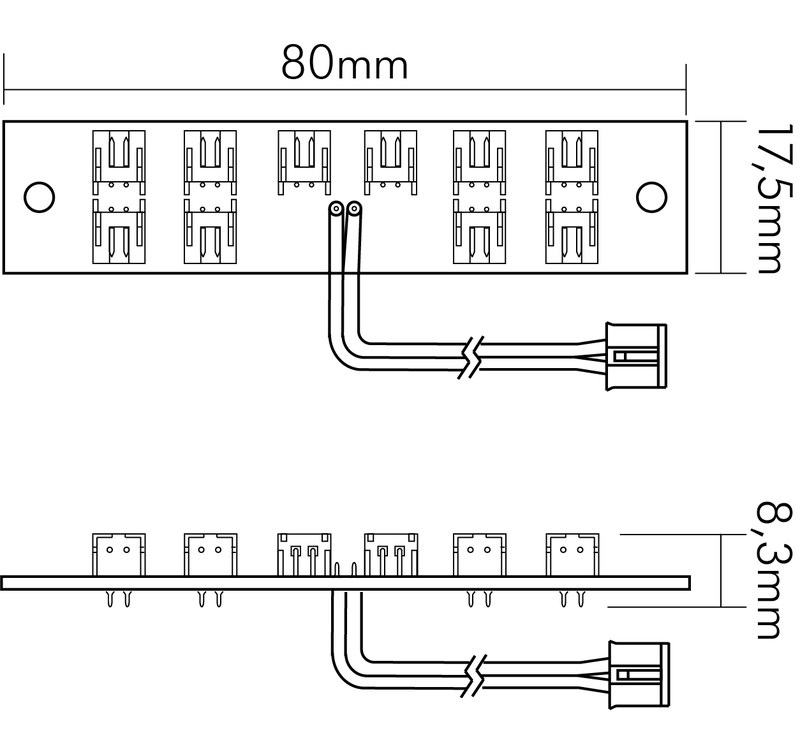

Length [mm] 80 Width [mm] 17,5 Height [mm] 8,3 Weight [g] 8 - Temperature specifications
Ambient temperature [Ta [°C] 0 - 50 - Protection specifications
CE-Conformity yes RoHS yes Installation, electrical engineering expertise yes Only for indoor use yes - Other specifications
Type of accessory/spare part Distributor Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Material and colour
Colour multi-coloured - Electrical specifications
Rated current max. [A] 2 Number of wires 2 Nominal cross section [mm²] 0,25 Rated voltage (DC) [V] 12 - 24 Rated voltage [AC] [V] 12 - 24
