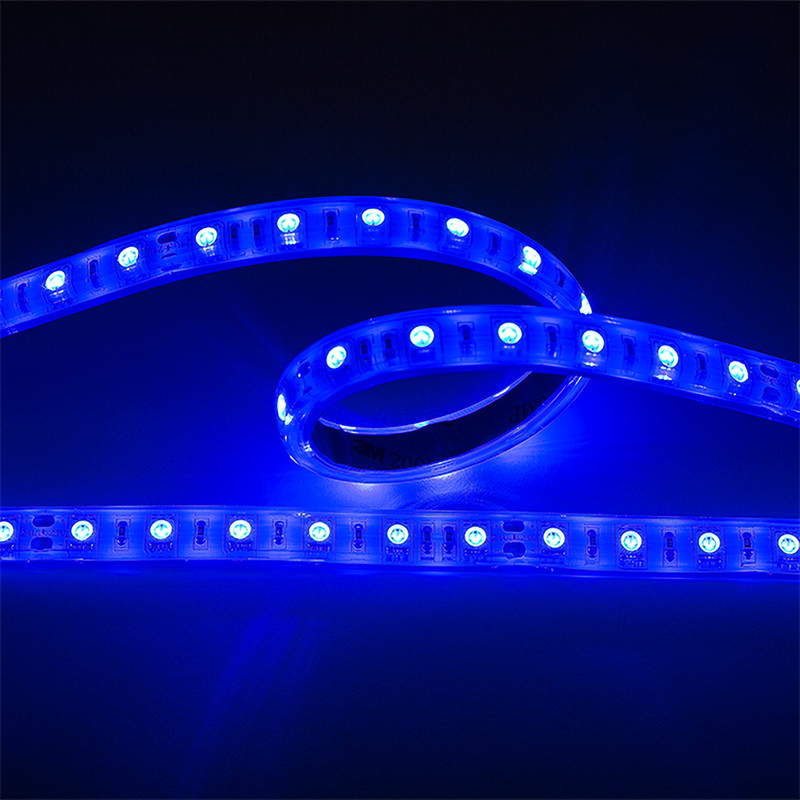

Flexible LED SMD 5050 5m 14.4W/m blue 24V IP67
Flexible LED Tape with SMD 5050
SKU:
5011240570
EAN: 4044538043289
EAN: 4044538043289
Highly flexible LED tape with self-adhesive reverse side for easy and quick fixing with 30 cm connecting cable on both sides; reducible in 100 mm sections (6 LEDs).
Maximum connected load of 72W (this equates to 5 m) may not be exceeded.
Ensure sufficient cooling of the Flexible LED. It is necessary to mount the Flexible LED on heat-conductive material such as the aluminium profile.
Dimensions (WxH): 12.5x5.5 mm
Number of LEDs: 60/m
Colour rendering index Ra: 80
Colour distance (MacAdam): 5 SDCM
Life time: 26.000 h (L90 B10)
RGB interface: COM+
Recommendation LED driver and control unit: EL-24V CV series and in case of RGB lights, in addition, an LED RGB-sequencer 24V or LED PWM-5 Controller 12V/24V 8A BT
weniger lesen
Technical Data
-
Temperature specifications
Ambient temperature [Ta [°C] -20 - 50 - Product contents
Including LED driver no With connection set no With end piece no Incl. end cap no - Dimensions and weight
Length [mm] 5000 Length of particular segments [mm] 100 Width [mm] 12,5 Height [mm] 5,5 Weight [g] 435 - Protection specifications
CE-Conformity yes RoHS yes EMC Standard EN 61547:2009; EN 55015:2013+A1:2015; EN 6100-3-2:2014; EN 6100-3-3:2013 LVD Standard EN 60598-2-20:2015; EN 60598-1:2015 Protection class III Degree of protection IP67 With protective cover yes Installation, electrical engineering expertise yes Only for indoor use no Furniture installation, fire protection 'MM' yes Lowest bending radius [mm] 30 Note mounting on heat-conductive material is necessary - Material and colour
Colour of printed circuit board white Material PVC transparent/copper - Other specifications
Bendable yes Model tape Mounting method surface-/recessed-mounted Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Self-adhesive yes Kind of disposal at the end of the life time specific collection points, please consider the local regulations - Electrical specifications
Lamp power per meter [W] 14,4 Max. system power [W] 72 Rated current per meter [A] 0,6 Max. current handling (at 5 m length) [A] 3 Voltage type DC Lamp holder without Type of wiring Suitable for through wiring Wire cross section 30 cm connecting cable on both sides Exchangeable LED driver no Dimmable yes Suitable for dimmer yes Type of dimming PWM LED driver LED operating device voltage-controlled Nominal voltage [V] 24 Lamp type exchangeable no Number of poles 2 Conductor cross section [mm²] 0,5 - Technical lighting specifications
Non-directional (NDLS) or directional [DLS] DLS Colour of light blue Total luminous flux per meter [lm] 220 Beam angle [°] 120 L70B50 - life time at 25°C [h] 30000 L90B10 - life time at 25 °C [h] 26000 Colour-tuneable light source no Total lumen setting adjustable no Colour temperature adjustable no Constant light output (CLO) no Light source replaceable no Number of LEDs per meter 60 Number of LEDs per segment 6 Lamp type SMD-LED Wavelength [nm] 465 - 475
