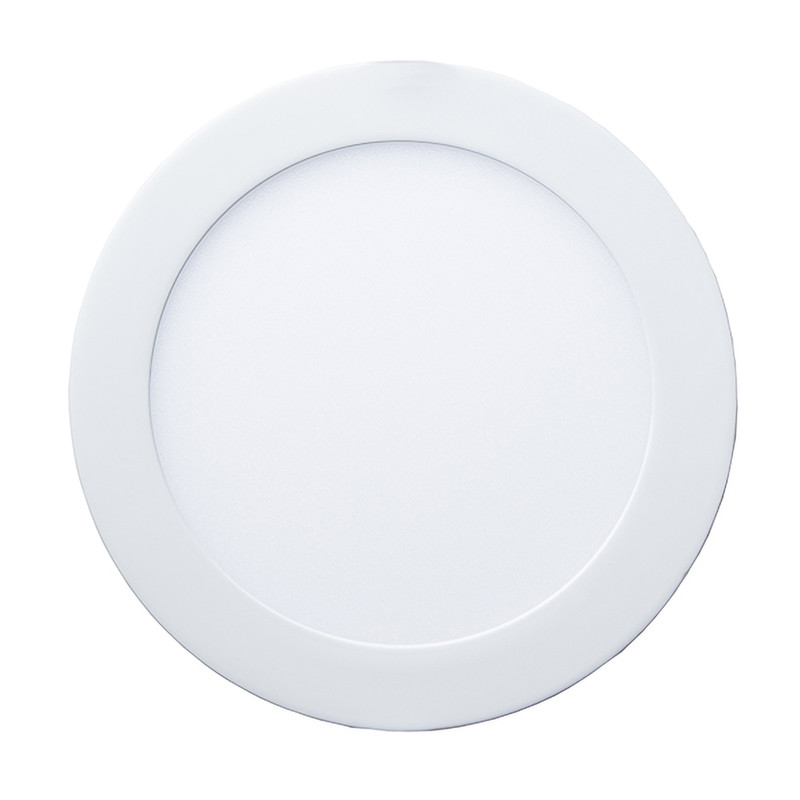

LED Panel Flat 130 R white 10W RGB 24V

LED Panel Flat 130 round
SKU: 1561301043
EAN: 4044538043807
Article Choice

Even LED-light-distribution throughout the entire emitting surface.

Recommendation LED driver and control unit: EL-24V series and, in addition, an LED RGB-sequencer, such as Capscence Sequencer Remote.

Material: aluminium/diffuser and light guide made of PMMA (non-yellowing)

Dimensions (ØxH): 170x22 mm

RGB interface: COM+

Life time: 50.000 h (L80 B10)

weniger lesen
mehr lesen

Downloads

MontageanleitungMontageanleitung
ProduktdatenblattProduktdatenblatt

Technical Data

  • Protection specifications
    Covering of the luminaire with thermally insulating material possible no
    CE-Conformity yes
    RoHS yes
    Protection class III
    Degree of protection IP20
    Impact strength IK00
    Thermal insulation mark yes
    Installation, electrical engineering expertise yes
    Only for indoor use yes
    Furniture installation, fire protection 'MM' yes
    Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces
    Installation in insulated ceilings, fire protection 'F with roof' no
    Note ensure constant convection and do not cover by insulation material
  • Temperature specifications
    Ambient temperature [Ta] [°C] 0 - 25
  • Other specifications
    Type of luminaire panel luminaire
    Mounting method recessed-mounted
    Suitable for general lighting no
    Suitable for recessed wall installation yes
    Suitable for wall mounting yes
    Suitable for suspended mounting no
    Suitable for built-in mounting yes
    Suitable for ceiling mounting yes
    Suitable for surface mounting no
    Suitable for light line configuration no
    Operation by Bluetooth no
    Compatible with Apple HomeKit no
    Compatible with Google Assistant no
    Compatible with Amazon Alexa no
    IFTTT support available no
    Kind of disposal at the end of the life time specific collection points, please consider the local regulations
    Reflector without
    Adjustable version no
  • Product contents
    With light source yes
    Including LED driver no
  • Technical lighting specifications
    Light cone Open beam/diffuse
    Colour of light RGB
    Total luminous flux [lm] 145
    Beam angle [°] 120
    Fit for monitor workplace acc. EN 12464-1 no
    Light distributor Diffuser
    L80B10 - life time at 25 °C [h] 50000
    L70B50 - life time at 25°C [h] 50000
    Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80
    Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10
    Colour controllable (RGB) yes
    Total lumen setting adjustable no
    Constant light output (CLO) no
    Light sharing symmetric
    Light outlet direct
    Lamp type SMD-LED
    Suitable for number of lamps 1
  • Dimensions and weight
    Diameter [mm] 170
    Height [mm] 22
    Weight [g] 325
    Ceiling cut-out [diameter] [mm] 155
    Built-in depth [mm] 25
    Light portal opening [mm] 130
  • Material and colour
    Material aluminium/acrylic diffuser panel opal
    Colour white
  • Electrical specifications
    Lamp power [W] 10
    Voltage type DC
    Lamp holder without
    Type of wiring Ending
    Type of connection [luminaire] free, stripped cable ends
    Exchangeable LED driver no
    Dimmable yes
    Type of dimming Led driver dependent
    LED driver LED operating device voltage-controlled
    RGB interface COM+
    Nominal voltage [V] 24
    Electrical connection with connector system no
