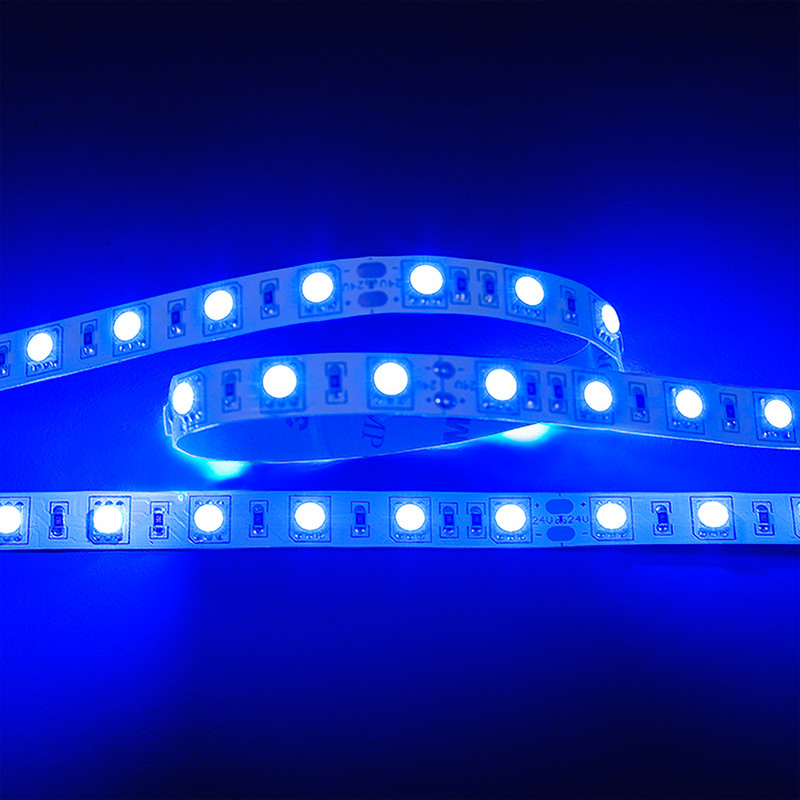

Flexible LED SMD 5050 2m 14.4W/m blue 24V IP20

Flexible LED Tape with SMD 5050, self-adhesive
SKU: 5011260270
EAN: 4044538045344
Article Choice

Highly flexible LED tape with self-adhesive reverse side for easy and quick fixing with 30 cm connecting cable on both sides; reducible in 100 mm sections (6 LEDs).

Maximum connected load of 72W (this equates to 5 m) may not be exceeded.

Ensure sufficient cooling of the Flexible LED. It is necessary to mount the Flexible LED on heat-conductive material such as the aluminium profile.

Dimensions (WxH): 10x2 mm

Number of LEDs: 60/m

Colour rendering index Ra: 82

Colour distance (MacAdam): 3 SDCM

Life time: 26.000 h (L70 B50)

RGB interface: COM+

Recommendation LED driver and control unit: EL-24V CV series and in case of RGB lights, in addition, an LED RGB-sequencer 24V or LED PWM-5 Controller 12V/24V 8A BT

weniger lesen
mehr lesen

Downloads

MontageanleitungMontageanleitung
ProduktdatenblattProduktdatenblatt

Technical Data

  • Temperature specifications
    Ambient temperature [Ta] [°C] -20 - 50
  • Product contents
    Including LED driver no
    With connection set no
    With end piece no
    Incl. end cap no
  • Dimensions and weight
    Length [mm] 2000
    Length of particular segments [mm] 100
    Width [mm] 10
    Height [mm] 2
    Weight [g] 85
  • Protection specifications
    CE-Conformity yes
    RoHS yes
    EMC Standard EN 61547:2009; EN 55015:2013+A1:2015; EN 6100-3-2:2014; EN 6100-3-3:2013
    LVD Standard EN 60598-2-20:2015; EN 60598-1:2015
    Protection class III
    Degree of protection IP20
    With protective cover no
    Installation, electrical engineering expertise yes
    Only for indoor use yes
    Furniture installation, fire protection 'MM' yes
    Lowest bending radius [mm] 30
    Note mounting on heat-conductive material is necessary
  • Material and colour
    Colour of printed circuit board white
    Material PVC/copper
  • Other specifications
    Bendable yes
    Model tape
    Mounting method surface-/recessed-mounted
    Compatible with Apple HomeKit no
    Compatible with Google Assistant no
    Compatible with Amazon Alexa no
    IFTTT support available no
    Self-adhesive yes
    Kind of disposal at the end of the life time specific collection points, please consider the local regulations
  • Electrical specifications
    Mains light source (MLS) or non-mains light source (NMLS) NMLS
    Lamp power per meter [W] 14,4
    Max. system power [W] 28,8
    Connected Light Source (CLS) no
    Rated current per meter [A] 0,6
    Max. current handling (at 5 m length) [A] 3
    Voltage type DC
    Lamp holder without
    Type of wiring Suitable for through wiring
    Wire cross section 30 cm connecting cable on both sides
    Exchangeable LED driver no
    Dimmable yes
    Suitable for dimmer yes
    Type of dimming PWM
    LED driver LED operating device voltage-controlled
    Nominal voltage [V] 24
    Lamp type exchangeable no
    Number of poles 2
    Conductor cross section [mm²] 0,32
  • Technical lighting specifications
    Type of light source DLS/NMLS
    Non-directional (NDLS) or directional [DLS] DLS
    Colour of light blue
    Total luminous flux per meter [lm] 240
    Beam angle [°] 120
    L70B50 - life time at 25°C [h] 30000
    L90B10 - life time at 25 °C [h] 26000
    Rated lifetime factor 0,9
    Lumen maintenance factor 0,96
    Lighting Technology used LED
    Anti-glare shield no
    Envelope no envelope
    Colour-tuneable light source no
    Total lumen setting adjustable no
    Colour temperature adjustable no
    Constant light output (CLO) no
    Light source replaceable no
    High luminance light source no
    Number of LEDs per meter 60
    Number of LEDs per segment 6
    Lamp type SMD-LED
    Wavelength [nm] 465 - 475
