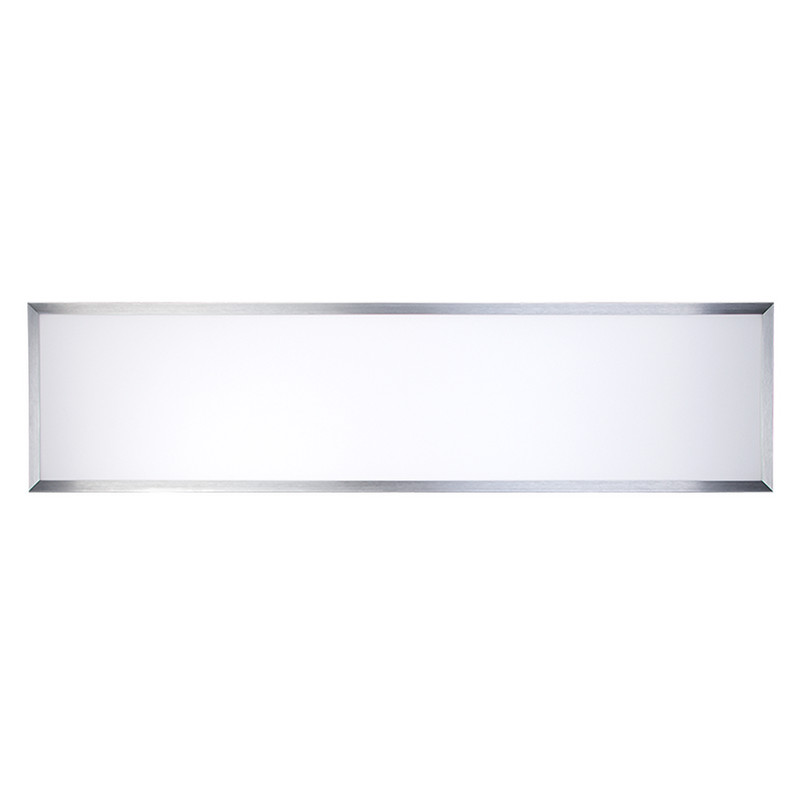

LED Panel R2 alu 34W 830 dim 1-10V
EAN: 4044538045689
The powerful solution for standard modular ceilings 625.
Optional accessories:
Suspension
Surface-mounted frame
Mounting Spring
Material: aluminium nature/diffuser and light guide made of PMMA (non-yellowing)

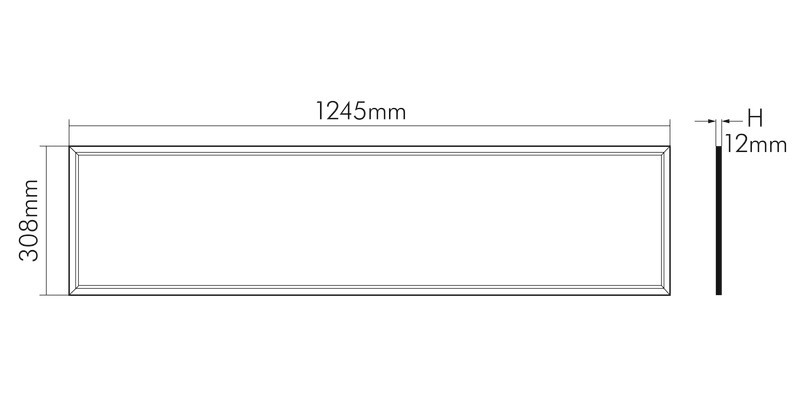

Dimensions (LxWxH): 1245x308x10 mm
Ceiling cut-out (LxW) lay-in version: 1225x288 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver included: dimmable 1-10V
Optionales Zubehör:
Seilabhängung
Aufbaurahmen
Einbaufeder
Betriebsgerät inklusive: dimmbar 1-10V
Material: Aluminium natur/Diffusorscheibe und Lightguide aus PMMA (vergilbungsfrei)
Abmessungen (LxBxH): 1245x308x10 mm
Deckenausschnitt (LxB) Einlegeleuchte: 1225x288 mm
Farbwiedergabeindex Ra: 80
Farbabstand (MacAdam): 3 SDCM
Lebensdauer: 50.000 h (L80 B10)
weniger lesen
Technical Data
-
Protection specifications
Covering of the luminaire with thermally insulating material possible no CE-Conformity yes RoHS yes Protection class II Degree of protection IP40 Impact strength IK05 Photobiological safety according to EN 62471 RG0 Thermal insulation mark yes Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes Installation note [flammable materials] recessed luminaire suitable for direct mounting on normal flammable surfaces Installation in insulated ceilings, fire protection 'F with roof' no - Temperature specifications
Ambient temperature [Ta] [°C] 0 - 40 - Other specifications
Type of luminaire panel luminaire Mounting method recessed-mounted Suitable for general lighting yes Suitable for recessed wall installation no Suitable for wall mounting no Suitable for suspended mounting no Suitable for built-in mounting no Suitable for ceiling mounting yes Suitable for surface mounting no Suitable for light line configuration no Operation by Bluetooth no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without Adjustable version no - Product contents
With light source yes Including LED driver yes Cable suspension supplied with the product no Part number of the delivered LED driver 8970441050 Description of the delivered LED driver EL-44-1050 dim 1-10V - Technical lighting specifications
Light cone Open beam/diffuse Colour temperature [K] 3000 Colour of light warm white LED efficiency [lm/W] 118 LED efficiency [system] [lm/W] 93 Total luminous flux [lm] 4000 Beam angle [°] 120 Colour consistency [MacAdam] [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 10 Fit for monitor workplace acc. EN 12464-1 no Peak luminous intensity [cd] 1410 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 75000 L90B10 - life time at 25 °C [h] 25000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) [%] 70 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) [%] 50 Colour controllable (RGB) no Constant light output (CLO) no Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 1245 Width [mm] 308 Height [mm] 10 Weight [g] 3850 Installation length (lay-in luminaire) [mm] 288 Installation width (lay-in luminaire) [mm] 1225 - Material and colour
Material aluminium nature/diffuser and light guide made of PMMA (non-yellowing) Colour alu - Electrical specifications
Lamp power [W] 34 Max. system power [W] 43 Voltage type AC Quantity on MCB B16 (max.) 31 Quantity on MCB C16 (max.) 52 Lamp holder without Type of wiring Suitable for through wiring Wire cross section 30 cm connecting cable with jack plug-system Exchangeable LED driver yes Dimmable yes Type of dimming 1-10V LED driver LED operating device current-controlled Rated current max. [mA] 1050 Rated voltage max. [V] 38 Rated voltage of LED driver [V] 220 - 240 Electrical connection with connector system yes
