LED Panel R2 uplight UGR<19 34W 840 dim 1-10V

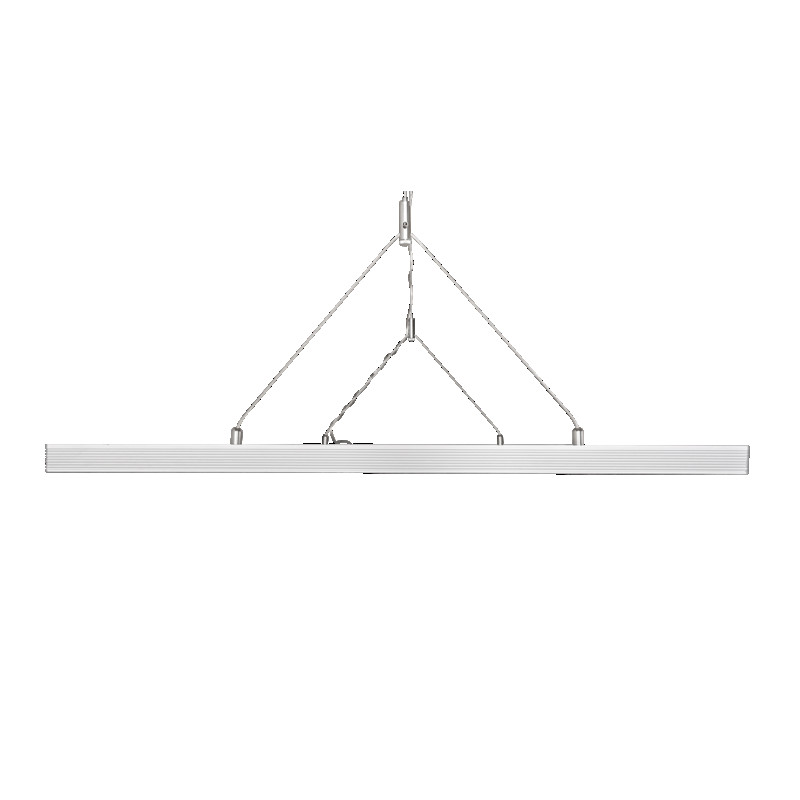

Rectangular pendant luminaire
The pendant luminaire distributes bright as well as diffuse and atmosphere light.
The luminaire is provided with a glare limitation UGR≤19 and a luminance ≤3000cd at y ≥ 65° according to EN-12464 is suitable for the illumination of VDU workstations.
Light distribution: 30% up; 70% down
Y-cable supensions (1.5 m): included
Canopy for housing the LED driver: included
Material: aluminium nature/Microprism diffuser and light guide made of PMMA (non-yellowing)

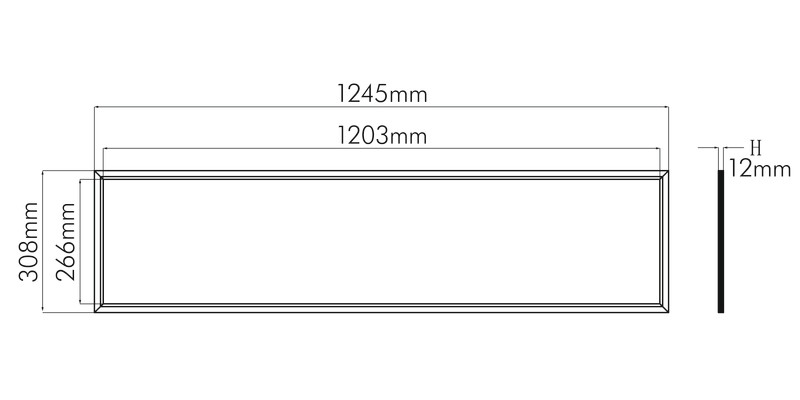

Dimensions (LxWxH): 1245x308x12 mm
Colour rendering index Ra: 80
Colour distance (MacAdam): 3 SDCM
Life time: 50.000 h (L80 B10)
LED driver included: dimmbale 1-10V
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes EMC Standard EN 55015:2013 + A1:2015; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013 LVD Standard EN 60598-1; EN 60598-2-1; EN 62493; EN 62471; EN 61347-1; EN 61347-2-13 Protection class II Safety class of LED driver II Degree of protection IP40 Impact strength IK05 Photobiological safety according to EN 62471 RG0 Installation, electrical engineering expertise yes Only for indoor use yes Furniture installation, fire protection 'MM' yes - Temperature specifications
Ambient temperature [Ta [°C] 0 - 45 - Material and colour
Material housing aluminium Colour housing nature Surface of the housing nature untreated Material diffuser PMMA Surface texture of the diffuser opal - Product contents
With light source yes Including LED driver yes Cable suspension supplied with the product yes Canopy inclusive yes Part number of the delivered LED driver 8970441051 Description of the delivered LED driver EL-44-1050 dim 1-10V - Technical lighting specifications
Colour temperature [K] 4000 Colour of light neutral white LED efficiency [lm/W] 118 LED efficiency [system] [lm/W] 103 Total luminous flux [lm] 4000 Total luminous flux up [lm] 1200 Total luminous flux down [lm] 2800 Beam angle down [°] 120 Beam angle up [°] 120 Colour consistency (MacAdam) [SDCM] 3 Colour rendering index Ra 80 Colour rendering index R9 12 Unified Glare Rating [UGR] 19 Anti-glare limiting [UGR] lengthwise 16,5 Anti-glare limiting [UGR] crosswise 16,5 Fit for monitor workplace acc. EN 12464-1 yes Luminance y ≥ 65° ≤3000 cd/m2 Peak luminous intensity [cd] 920 Light distributor Diffuser L80B10 - life time at 25 °C [h] 50000 L70B50 - life time at 25°C [h] 75000 L90B10 - life time at 25 °C [h] 25000 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 80 Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) [%] 70 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) [%] 10 Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) [%] 50 Colour controllable (RGB) no Total lumen setting adjustable Continuously variable Colour temperature adjustable no Constant light output (CLO) no Light sharing symmetric Light outlet direct Lamp type SMD-LED Suitable for number of lamps 1 - Dimensions and weight
Length [mm] 1245 Width [mm] 308 Height [mm] 12 Weight [g] 4750 Light outlet opening [lenght] [mm] 1203 Light outlet opening [width] [mm] 266 Length of cable suspension [m] 1,5 Pendant length [cm] 0,1 - 150 - Other specifications
Type of luminaire pendant luminaire Suitable for general lighting yes Suitable for suspended mounting yes Suitable for light line configuration no Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Reflector without - Electrical specifications
Lamp power [W] 34 Max. system power [W] 39 Nominal current of luminaire [mA] 1050 Rated voltage of luminaire [DC] [V] 33 Constant current [mA] 1050 Rated voltage of the LED driver [AC [V] 220 - 240 Power factor [at full load] 0,9 Quantity on MCB B10 (max.) 19 Quantity on MCB B16 (max.) 31 Quantity on MCB C10 (max.) 32 Quantity on MCB C16 (max.) 52 Lamp holder without Type of wiring Suitable for through wiring Length of cable [luminaire] [cm] 150 Cable cross section [luminaire] [mm²] 0,5 Connection type primary [LED driver] free, stripped wire ends Cable cross section primary [LED driver] [mm²] 0,75 Connection type secondary reverse polarity protected plug -system Length of cable secondary [LED driver] [cm] 110 Cable cross section secondary [LED driver] [mm²] 0,5 Connection dimmer interface free, stripped wire ends Cable length dimmer interface [cm] 17 Cable cross section dimmer interface [mm²] 0,25 Exchangeable LED driver yes Dimmable yes Type of dimming 1-10V Dimming range [%] 10 - 100 Flicker free yes Rated current of the LED driver (at 230V AC) max. [A] 0,185 Length of cable [cm] 25 LED driver LED operating device current-controlled Number of poles 2 Length [LED driver] [mm] 145 Wide [LED driver] [mm] 43 Height [LED driver] [mm] 29 Weight [LED driver] [g] 300 Type of connection [luminaire] reverse polarity protected plug -system
