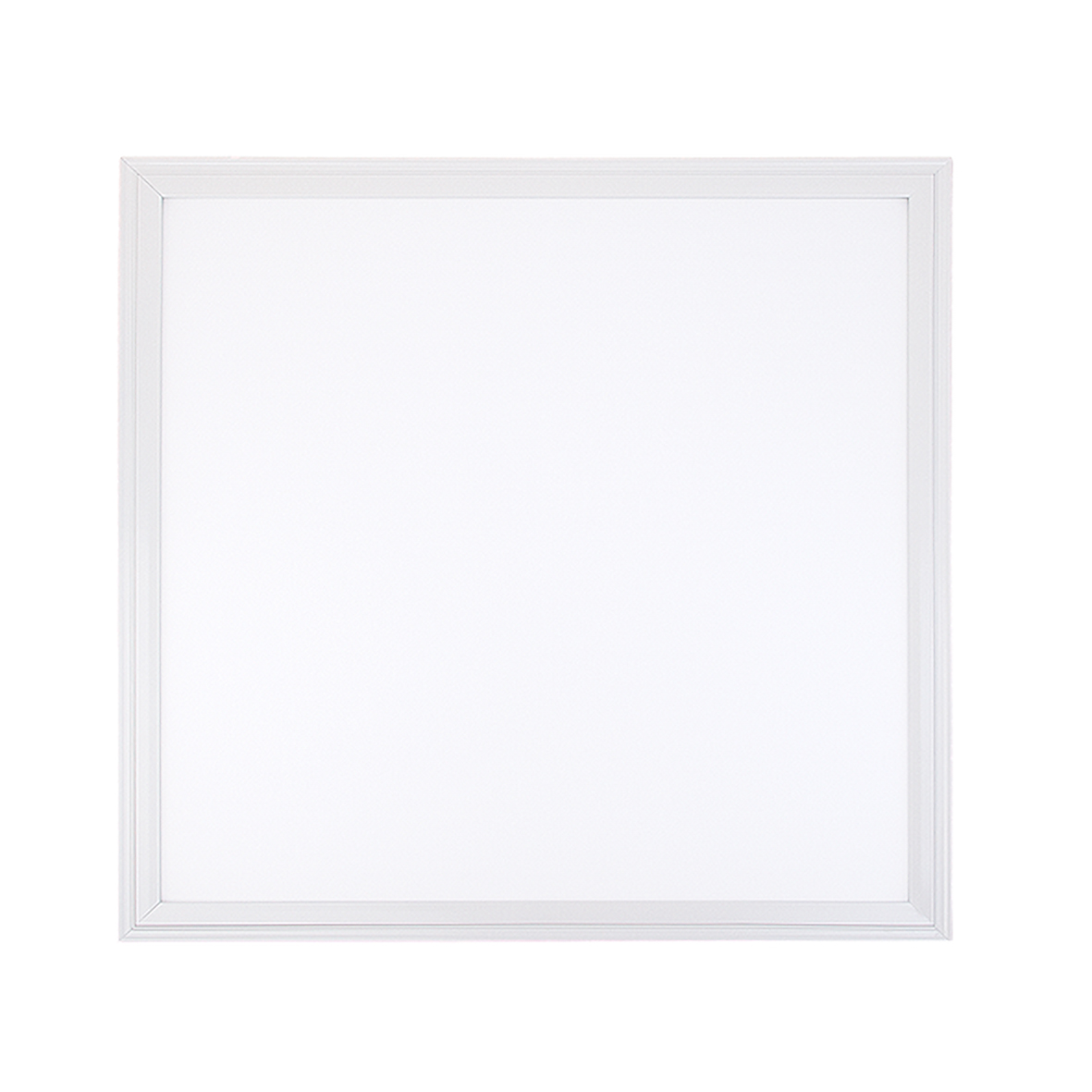

LED Panel Q2S UGR≤22 Dali

LED Panel for easy and rapid installation
Article Choice

The powerful solution for standard modular ceilings 625.

Optional accessories:

Wall-/Ceiling Mounting

Surface-mounted frame

Built-in frame

Mounting spring

aluminium white painted/diffuser and light guide made of PMMA (non-yellowing)

Dimensions (LxWxH): 622x622x9 mm

Ceiling cut-out (LxW) recessed version: 608x608 mm

Ceiling cut-out (LxW) lay-in version: 600x600 mm

Colour rendering index Ra: 80

Colour distance (MacAdam): 3 SDCM

Life time: 60.000 h (L80 B10)

LED driver included: dimmable Dali

Note: the light colour daylight white is available on request

weniger lesen
mehr lesen

Downloads

ProduktdatenblattProduktdatenblatt
MontageanleitungMontageanleitung
Lichttechnische Daten (EULUMDAT)Lichttechnische Daten (EULUMDAT)
Lichttechnische Daten (EULUMDAT)Lichttechnische Daten (EULUMDAT)
ProduktdatenblattProduktdatenblatt
