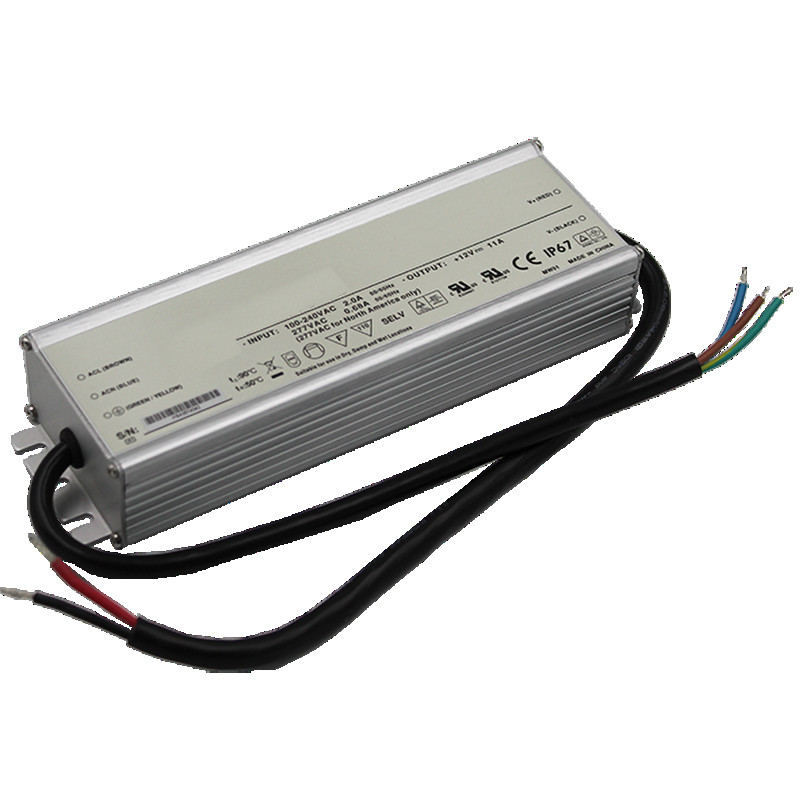

EL-130-12V IP67
LED Driver with 12V constant voltage
SKU:
8970301312
EAN: 4044538044361
EAN: 4044538044361
LED driver for indoor and outdoor use.
Type of connection primary: connecting cable 3x1.0 mm²
Type of connection secondary: connecting cable 2x1.0 mm²
weniger lesen
Technical Data
-
Protection specifications
CE-Conformity yes RoHS yes SELV yes Protection class I Degree of protection IP67 Safety transformer yes Short-circuit protected yes Protection against short-circuit yes Temperature protection shutdown at [°C] 110 TÜV Rheinland (type approved) yes CB certificate yes RU certificate yes Installation, electrical engineering expertise yes Only for indoor use no Furniture installation, fire protection 'MM' yes * F-Test mark yes - Temperature specifications
Ambient temperature [Ta [°C] -30 - 50 Case temperature [Tc] [°C] 90 - Dimensions and weight

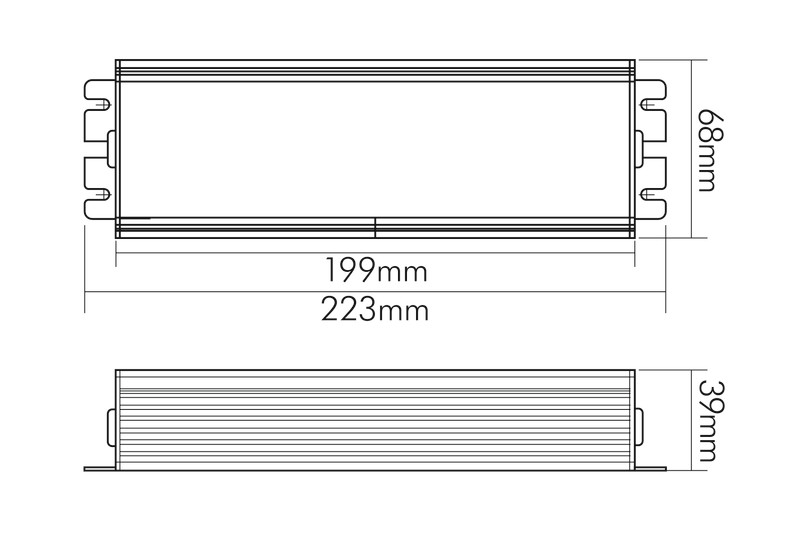

Length [mm] 223 Width [mm] 68 Height [mm] 39 Weight [g] 1000 - Material and colour
Material synthetic material Colour silver - Other specifications
Operation by Bluetooth no Compatible with Casambi no Model static Compatible with Apple HomeKit no Compatible with Google Assistant no Compatible with Amazon Alexa no IFTTT support available no Kind of disposal at the end of the life time specific collection points, please consider the local regulations Independant installation yes - Technical lighting specifications
Constant light output (CLO) no - Electrical specifications
Cable length primary [mm] 300 Cable length secondary [mm] 300 Conductor cross section primary [mm²] 0,75 Conductor cross section secondary [mm²] 2,5 Power [W] 0 - 132 Input frequency [Hz] 47 - 63 Power factor [at full load] 0,95 Connection type primary free, stripped cable ends Cable conductor quantity primary 3 Connection type secondary free, stripped cable ends Dimmable no Suitable for DC voltage (primary side) yes Suitable for constant voltage yes Suitable for constant current no Built-in active Power-Factor-Correction yes Input voltage [AC] [V] 90 - 295 Output voltage [DC] [V] 12 Input voltage [DC] [V] 127 - 417 Efficiency/Power factor at full load [%] 88 Suitable for outdoor use yes
